Overview

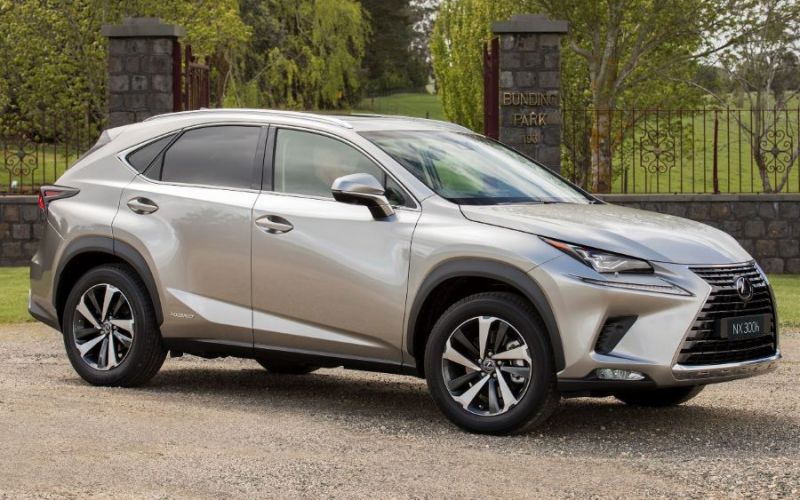

The 2020 Lexus Nx300h SPORTS LUXURY HYBRID (AWD) is an all wheel drive 4 Door Wagon that was released to the Australian market on 7th January 2020 classified as a AYZ15R. The Lexus Nx300h is regarded as a SUV medium built in Japan with prices from a dealer as a used car starting at $61,100.
The Lexus Nx300h is an all wheel drive 4 door with 5 seats, powered by a 2.5L Inline 4 Cylinder engine that has 114 kW of power (at 5700 rpm) and 210 Nm of torque (at 4400 rpm) via a Continuously Variable Transmission Auto 6 Speed. Lexus claims the NX SPORTS LUXURY HYBRID (AWD) uses 5.7L/100km of unleaded petrol/electric in the combined city and highway cycle while putting out 133g of CO2. It has a 56L fuel tank, meaning it should be able to travel 982km per full tank.
The Lexus Nx300h measures 1645mm (64.8 inches) in height, 4640mm (182.7 inches) in length, 1845mm (72.6 inches) in width with a 2660mm (104.7 inches) wheelbase that brings about a total of 1895kg (4177.8 lbs) of unladen weight. The NX SPORTS LUXURY HYBRID (AWD) comes standard with 225/60 R18 front tyres and 225/60 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 48 month, 100km warranty.
The 2020 Lexus Nx300h SPORTS LUXURY HYBRID (AWD) has a 170mm ground clearance with a 1000kg braked and 750kg unbraked towing capacity.
The Lexus Nx300h has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to JTJBJRBZ701234567.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Multi Point Fuel Injection |
|---|---|
| Size (cc) | 2494 |
| Size (L) | - |
| Induction | Inline 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 114kW |
| Power RPM | 5700 |
| Torque | 210Nm |
| Torque RPM | 4400 |
| Bore Stroke | 90x98 |
| Compression Ratio | 10.40 |
| Transmission | Continuously Variable Transmission Auto 6 Speed |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | anti roll bar, coil spring, gas damper, macpherson strut |
| Suspension Rear | anti roll bar, coil spring, double wishbone, gas damper, trailing arm |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | AWD |
| Fuel Combined (L/100km) | 5.7 |
|---|---|
| Fuel Urban (L/100km) | 5.8 |
| Fuel Extra Urban (L/100km) | 5.6 |
| Tank Size (L) | 56 |
| Fuel Type | unleaded petrol/electric |
| e10 Compatible | - |
| CO2 Combined | 133 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/60 R18 |
| Tyre Rear | 225/60 R18 |
| Front Rim Size | 7.5x18 |
| Rear Rim Size | 7.5x18 |
| Vehicle Height (mm) | 1645 |
|---|---|
| Vehicle Length (mm) | 4640 |
| Vehicle Width (mm) | 1845 |
| Ground Clearance (mm) | 170 |
| Wheelbase (mm) | 2660 |
| Turning Circle (m) | 11.4 |
| Unladen Weight (kg) | 1895 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2385 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1000 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Driver Side B-Pillar |
|---|---|
| Country Of Origin | Japan |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | JTJBJRBZ701234567 |
| Warranty KMs | 100 |
| Warranty Months | 48 |
| Discontinued Date | - |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 6 |
