Overview

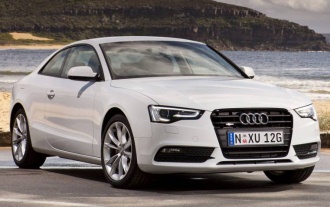

The 2017 Audi A5 1.8 TFSI S LINE PLUS is a front wheel drive 2 Door Coupe that was released to the Australian market on 7th January 2016 classified as a 8T R6. The Audi A5 is regarded as a sports built in Germany with prices from a dealer as a used car starting at $33,200.
The Audi A5 is a front wheel drive 2 door with 4 seats, powered by a 1.8L Turbo 4 Cylinder engine that has 125 kW of power (at 3800 rpm) and 320 Nm of torque (at 1400 rpm) via a Continuously Variable Transmission Multitronic. Audi claims the A5 1.8 TFSI S LINE PLUS uses 6.2L/100km of premium unleaded petrol in the combined city and highway cycle while putting out 134g of CO2. It has a 63L fuel tank, meaning it should be able to travel 1016km per full tank.
The Audi A5 measures 1372mm (54.0 inches) in height, 4626mm (182.1 inches) in length, 1854mm (73.0 inches) in width with a 2751mm (108.3 inches) wheelbase that brings about a total of 1455kg (3207.7 lbs) of unladen weight. The A5 1.8 TFSI S LINE PLUS comes standard with 245/40 R18 front tyres and 245/40 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, unlimited kilometre warranty.
The 2017 Audi A5 1.8 TFSI S LINE PLUS has a 114mm ground clearance with a 1300kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.612.
The VIN number can be found on the Driver Side Front Wheel Arch and the compliance plate is located on the Rear Lug Comp on S/Wheel Well. An example VIN number would be similar to WAUZZZ8TX8A123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Multi Point Fuel Injection |
|---|---|
| Size (cc) | 1798 |
| Size (L) | - |
| Induction | Turbo 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 125kW |
| Power RPM | 3800 |
| Torque | 320Nm |
| Torque RPM | 1400 |
| Bore Stroke | 82.5x84.1 |
| Compression Ratio | 9.60 |
| Transmission | Continuously Variable Transmission Multitronic |
|---|---|
| Final Gear Ratio | 4.612 |
| Suspension Front | anti roll bar, multi-link system, coil spring, gas damper, upper and lower wishbone |
| Suspension Rear | anti roll bar, coil spring, gas damper, trapezoidal link |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FWD |
| Fuel Combined (L/100km) | 6.2 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 63 |
| Fuel Type | premium unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 134 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 245/40 R18 |
| Tyre Rear | 245/40 R18 |
| Front Rim Size | 8.5x18 |
| Rear Rim Size | 8.5x18 |
| Vehicle Height (mm) | 1372 |
|---|---|
| Vehicle Length (mm) | 4626 |
| Vehicle Width (mm) | 1854 |
| Ground Clearance (mm) | 114 |
| Wheelbase (mm) | 2751 |
| Turning Circle (m) | 11.4 |
| Unladen Weight (kg) | 1455 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1955 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1300 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Rear Lug Comp on S/Wheel Well |
|---|---|
| Country Of Origin | Germany |
| Number of Doors | 2 |
| Seats | 4 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Wheel Arch |
| VIN Number | WAUZZZ8TX8A123456 |
| Warranty KMs | 999 |
| Warranty Months | 36 |
| Discontinued Date | 31/01/2019 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
