Overview

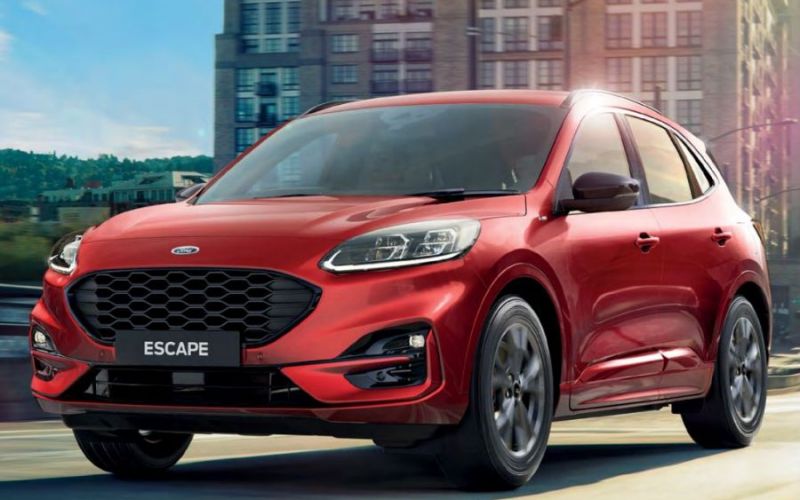

The 2021 Ford Escape ST-LINE PHEV (FWD) is a front wheel drive 4 Door Wagon that was released to the Australian market on 9th January 2021 classified as a ZH MY22. The Ford Escape is regarded as a SUV medium built in Spain with prices from a dealer as a used car starting at $39,900.
The Ford Escape is a front wheel drive 4 door with 5 seats, powered by a 2.5L Turbo 4 Cylinder engine that has 167 kW of power (at 6250 rpm) and 210 Nm of torque (at 4500 rpm) via a Continuous Variable. Ford claims the Escape ST-LINE PHEV (FWD) uses 1.5L/100km of premium unleaded/electric in the combined city and highway cycle while putting out 33g of CO2. It has a 45L fuel tank, meaning it should be able to travel 3000km per full tank.
The Ford Escape measures 1742mm (68.6 inches) in height, 4620mm (181.9 inches) in length, 1883mm (74.1 inches) in width with a 2710mm (106.7 inches) wheelbase that brings about a total of 1843kg (4063.1 lbs) of unladen weight. The Escape ST-LINE PHEV (FWD) comes standard with 225/60 R18 front tyres and 225/60 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2021 Ford Escape ST-LINE PHEV (FWD) has a 160mm ground clearance with a 1200kg braked and 750kg unbraked towing capacity.
The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Driver Side Centre B-Pillar. An example VIN number would be similar to WF0AXXWPMA%$12345.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Direct Fuel Injection |
|---|---|
| Size (cc) | 2488 |
| Size (L) | - |
| Induction | Turbo 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 167kW |
| Power RPM | 6250 |
| Torque | 210Nm |
| Torque RPM | 4500 |
| Bore Stroke | 88.9x100.08 |
| Compression Ratio | 13.00 |
| Transmission | Continuous Variable |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | macpherson strut, independent, stabiliser bar |
| Suspension Rear | multi-link system, independent, stabiliser bar |
| Steering Mechanism | ELECTRIC POWER STEERING |
| Drive | FWD |
| Fuel Combined (L/100km) | 1.5 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 45 |
| Fuel Type | premium unleaded/electric |
| e10 Compatible | - |
| CO2 Combined | 33 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/60 R18 |
| Tyre Rear | 225/60 R18 |
| Front Rim Size | 7.5x18 H2 |
| Rear Rim Size | 7.5x18 H2 |
| Vehicle Height (mm) | 1742 |
|---|---|
| Vehicle Length (mm) | 4620 |
| Vehicle Width (mm) | 1883 |
| Ground Clearance (mm) | 160 |
| Wheelbase (mm) | 2710 |
| Turning Circle (m) | 11.4 |
| Unladen Weight (kg) | 1843 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2320 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1200 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Driver Side Centre B-Pillar |
|---|---|
| Country Of Origin | Spain |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | WF0AXXWPMA%$12345 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | - |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
