Overview

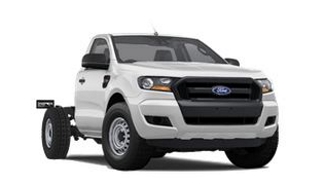

The 2017 Ford Ranger XL 2.2 (4x2) is a rear-wheel drive C/chas that was released to the Australian market on 153rd June 2016 classified as a PX MKII MY17. The Ford Ranger is regarded as a c/chas built in Thailand with prices from a dealer as a used car starting at $13,900.
The Ford Ranger is a rear-wheel drive 2 door with 2 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 118 kW of power (at 3200 rpm) and 385 Nm of torque (at 1600 rpm) via a Six-speed Manual. Ford claims the Ranger XL 2.2 (4x2) uses 6.6L/100km of Diesel in the combined city and highway cycle while putting out 169g of CO2. It has a nullL fuel tank.
The Ford Ranger measures 1703mm (67.0 inches) in height, 5110mm (201.2 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 1619kg (3569.3 lbs) of unladen weight. The Ranger XL 2.2 (4x2) comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100kmkm warranty.
The 2017 Ford Ranger XL 2.2 (4x2) has a 201mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.31.
The Ford Ranger has received a 5 star rating from ANCAP. The VIN number can be found on the Centre Of Chassis Frame and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to MNA#MA$%0&W123456.
Pros
- Punchy and refined V6 diesel
- Surprisingly fuel efficient
- Benchmark driving experience
Cons
- Lacking some wow factor
- Expensive compared with more enticing Sport grade
- No wireless phone charger
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | DIESEL TURBO F/INJ |
|---|---|
| Size (cc) | 2198 |
| Size (L) | 2.2L |
| Cylinders | DIESEL TURBO 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 118kW |
| Power RPM | 3200 |
| Torque | 385Nm |
| Torque RPM | 1600 |
| Bore Stroke | - |
| Compression Ratio | 15.7 |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | 3.31 |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | REAR WHEEL DRIVE |
| Fuel Combined (L/100km) | 6.6 |
|---|---|
| Fuel Urban (L/100km) | 0 |
| Fuel Extra Urban (L/100km) | 0 |
| Tank Size (L) | - |
| Fuel Type | DIESEL |
| e10 Compatible | unknown |
| CO2 Combined | 169 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 215/70 R16 |
| Tyre Rear | 215/70 R16 |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 1703 |
|---|---|
| Vehicle Length (mm) | 5110 |
| Vehicle Width (mm) | 1850 |
| Ground Clearance (mm) | 201 |
| Wheelbase (mm) | 3220 |
| Turning Circle (m) | 12 |
| Unladen Weight (kg) | 1619 |
| Gross Combined Weight (kg) | 0 |
| Gross Vehicle Weight (kg) | 2925 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Driver Side B-Pillar |
|---|---|
| Country Of Origin | THAILAND |
| Number of Doors | 2 |
| Seats | 2 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Centre Of Chassis Frame |
| VIN Number | MNA#MA$%0&W123456 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2017-06-30 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | - |
