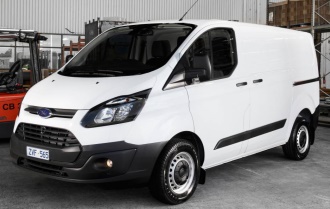

2015 Ford Transit Custom 330L (LWB) Pricing and Spec
From
$22,900
excl. on-roads
Overview
The 2015 Ford Transit Custom 330L (LWB) is a front-wheel drive three-door van that was released to the Australian market on 121st May 2014 classified as a VN. The Ford Transit Custom is regarded as a 3d van built in Turkey with prices from a dealer as a used car starting at $22,900.
The Ford Transit Custom is a front-wheel drive 3 door with 2 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 92 kW of power (at 3500 rpm) and 350 Nm of torque (at 1450 rpm) via a Six-speed Manual. Ford claims the Transit Custom 330L (LWB) uses 7.3L/100km of Diesel in the combined city and highway cycle while putting out 191g of CO2. It has a 95L fuel tank, meaning it should be able to travel 1301km per full tank.
The Ford Transit Custom measures 2002mm (78.8 inches) in height, 5339mm (210.2 inches) in length, 1986mm (78.2 inches) in width with a 3300mm (129.9 inches) wheelbase that brings about a total of 1965kg (4332.1 lbs) of unladen weight. The Transit Custom 330L (LWB) comes standard with 215/65 R15 front tyres and 215/65 R15 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2015 Ford Transit Custom 330L (LWB) has a 118mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.714.
The Ford Transit Custom has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Wheel Arch and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to WF0YXXTTGYDC00001.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | DIESEL TURBO F/INJ |
|---|---|
| Size (cc) | 2198 |
| Size (L) | 2.2L |
| Induction | DIESEL TURBO 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 92kW |
| Power RPM | 3500 |
| Torque | 350Nm |
| Torque RPM | 1450 |
| Bore Stroke | - |
| Compression Ratio | 18 |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | 4.714 |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FRONT WHEEL DRIVE |
| Fuel Combined (L/100km) | 7.3 |
|---|---|
| Fuel Urban (L/100km) | 0 |
| Fuel Extra Urban (L/100km) | 0 |
| Tank Size (L) | 95 |
| Fuel Type | DIESEL |
| e10 Compatible | unknown |
| CO2 Combined | 191 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/65 R15 |
| Tyre Rear | 215/65 R15 |
| Front Rim Size | 6.5x15 |
| Rear Rim Size | 6.5x15 |
| Vehicle Height (mm) | 2002 |
|---|---|
| Vehicle Length (mm) | 5339 |
| Vehicle Width (mm) | 1986 |
| Ground Clearance (mm) | 118 |
| Wheelbase (mm) | 3300 |
| Turning Circle (m) | 12.2 |
| Unladen Weight (kg) | 1965 |
| Gross Combined Weight (kg) | 5325 |
| Gross Vehicle Weight (kg) | 3325 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Front Floor |
|---|---|
| Country Of Origin | TURKEY |
| Number of Doors | 3 |
| Seats | 2 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Wheel Arch |
| VIN Number | WF0YXXTTGYDC00001 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2015-02-28 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | - |
