2019 Ford Transit Custom 320s Sport (swb) Pricing and Spec
From
$35,100
excl. on-roads
Overview

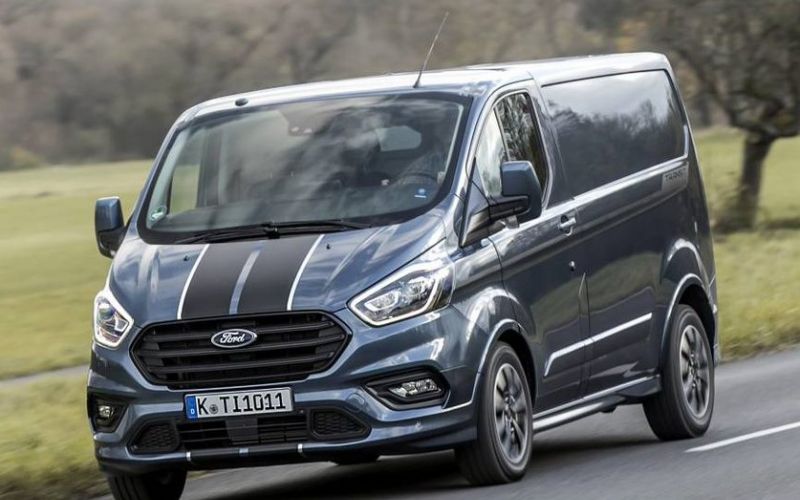

The 2019 Ford Transit Custom 320S SPORT (SWB) is a front wheel drive Van that was released to the Australian market on 5th January 2019 classified as a VN MY19.75. The Ford Transit Custom is regarded as a van built in Turkey with prices from a dealer as a used car starting at $35,100.
The Ford Transit Custom is a front wheel drive 2 door with 3 seats, powered by a 2.0L Diesel Turbo 4 Cylinder engine that has 136 kW of power (at 3500 rpm) and 405 Nm of torque (at 1500 rpm) via a 6 Speed Automatic. Ford claims the Transit Custom 320S SPORT (SWB) uses 7.2L/100km of diesel in the combined city and highway cycle while putting out 186g of CO2. It has a 72L fuel tank, meaning it should be able to travel 1000km per full tank.
The Ford Transit Custom measures 1964mm (77.3 inches) in height, 4972mm (195.7 inches) in length, 2030mm (79.9 inches) in width with a 2933mm (115.5 inches) wheelbase that brings about a total of 2042kg (4501.8 lbs) of unladen weight. The Transit Custom 320S SPORT (SWB) comes standard with front tyres and rear tyres. It requires a service every 12 months or 30,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2019 Ford Transit Custom 320S SPORT (SWB) has a 118mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.650.
The Ford Transit Custom has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Wheel Arch and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to WFOYXXTTGYDC12345.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Diesel Direct Injection |
|---|---|
| Size (cc) | 1995 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 136kW |
| Power RPM | 3500 |
| Torque | 405Nm |
| Torque RPM | 1500 |
| Bore Stroke | 84x90 |
| Compression Ratio | 16.50 |
| Transmission | 6 Speed Automatic |
|---|---|
| Final Gear Ratio | 3.650 |
| Suspension Front | macpherson strut, independent |
| Suspension Rear | leaf spring |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FWD |
| Fuel Combined (L/100km) | 7.2 |
|---|---|
| Fuel Urban (L/100km) | 7.8 |
| Fuel Extra Urban (L/100km) | 6.7 |
| Tank Size (L) | 72 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 186 |
| CO2 Urban | 201 |
| CO2 Extra Urban | 174 |
| Brake Front | DISC |
|---|---|
| Brake Rear | DISC |
| Tyre Front | - |
| Tyre Rear | - |
| Front Rim Size | 7x16 |
| Rear Rim Size | 7x16 |
| Vehicle Height (mm) | 1964 |
|---|---|
| Vehicle Length (mm) | 4972 |
| Vehicle Width (mm) | 2030 |
| Ground Clearance (mm) | 118 |
| Wheelbase (mm) | 2933 |
| Turning Circle (m) | 10.9 |
| Unladen Weight (kg) | 2042 |
| Gross Combined Weight (kg) | 4100 |
| Gross Vehicle Weight (kg) | 3100 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1800 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Front Floor |
|---|---|
| Country Of Origin | Turkey |
| Number of Doors | 2 |
| Seats | 3 |
| Service Interval KMs | 30 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Wheel Arch |
| VIN Number | WFOYXXTTGYDC12345 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | 29/02/2020 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 6.2 |
