Overview

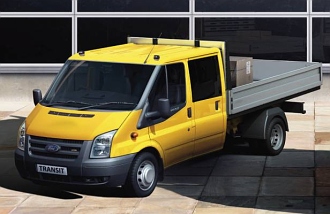

The 2012 Ford Transit EXTENDED FRAME is a rear wheel drive Crew Cab Chassis that was released to the Australian market on 3rd January 2008 classified as a VM MY08. The Ford Transit is regarded as a truck 2.5-3.5 gross vehicle mass built in United Kingdom with prices from a dealer as a used car starting at $22,800.
The Ford Transit is a rear wheel drive 4 door with 6 seats, powered by a 2.4L Diesel Turbo 4 Cylinder engine that has 103 kW of power (at 3500 rpm) and 375 Nm of torque (at 2000 rpm) via a 6 Speed Manual. Ford claims the Transit EXTENDED FRAME uses 10.4L/100km of diesel in the combined city and highway cycle while putting out 274g of CO2. It has a 80L fuel tank, meaning it should be able to travel 769km per full tank.
The Ford Transit measures 2030mm (79.9 inches) in height, 6319mm (248.8 inches) in length, 1974mm (77.7 inches) in width with a 3954mm (155.7 inches) wheelbase that brings about a total of 2012kg (4435.7 lbs) of unladen weight. The Transit EXTENDED FRAME comes standard with 195/75 R16 front tyres and 195/75 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2012 Ford Transit EXTENDED FRAME has a 100mm ground clearance with a 2450kg braked and 750kg unbraked towing capacity.
The VIN number can be found on the Driver Side Front Wheel Arch and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to WF0NXXTTFN6T12345.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Diesel Turbo Fuel Injection |
|---|---|
| Size (cc) | 2402 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 103kW |
| Power RPM | 3500 |
| Torque | 375Nm |
| Torque RPM | 2000 |
| Bore Stroke | 89.9x94.6 |
| Compression Ratio | 18.30 |
| Transmission | 6 Speed Manual |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | anti roll bar, coil spring, macpherson strut, hydraulic double acting shock absorber |
| Suspension Rear | gas damper, leaf spring |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | RWD |
| Fuel Combined (L/100km) | 10.4 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 274 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 195/75 R16 |
| Tyre Rear | 195/75 R16 |
| Front Rim Size | 5.0x16 |
| Rear Rim Size | 5.0x16 |
| Vehicle Height (mm) | 2030 |
|---|---|
| Vehicle Length (mm) | 6319 |
| Vehicle Width (mm) | 1974 |
| Ground Clearance (mm) | 100 |
| Wheelbase (mm) | 3954 |
| Turning Circle (m) | 13.9 |
| Unladen Weight (kg) | 2012 |
| Gross Combined Weight (kg) | 6500 |
| Gross Vehicle Weight (kg) | 4490 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2450 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Front Floor |
|---|---|
| Country Of Origin | United Kingdom |
| Number of Doors | 4 |
| Seats | 6 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Wheel Arch |
| VIN Number | WF0NXXTTFN6T12345 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 29/02/2012 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
