Overview

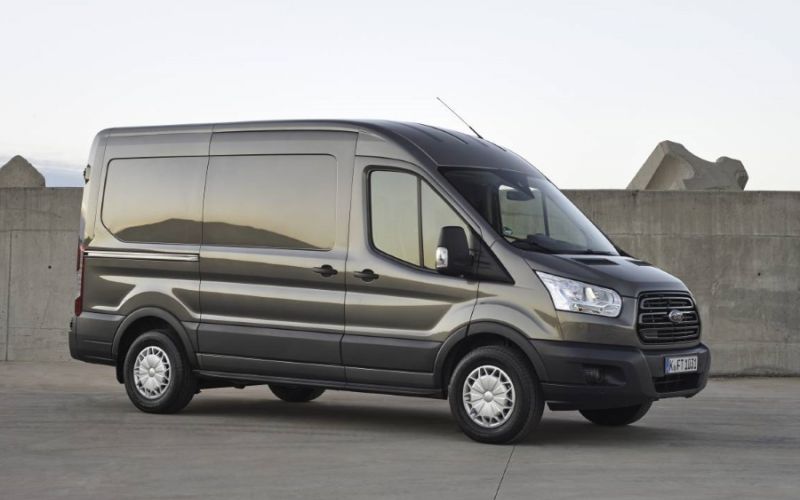

The 2016 Ford Transit 350L LWB HIGH ROOF is a rear wheel drive 5 Door Van that was released to the Australian market on 5th January 2016 classified as a VO MY16.75. The Ford Transit is regarded as a van built in Germany with prices from a dealer as a used car starting at $25,700.
The Ford Transit is a rear wheel drive 5 door with 3 seats, powered by a 2.2L Diesel Turbo 4 Cylinder engine that has 114 kW of power (at 3500 rpm) and 385 Nm of torque (at 1600 rpm) via a 6 Speed Manual. Ford claims the Transit 350L LWB HIGH ROOF uses 9.5L/100km of diesel in the combined city and highway cycle while putting out 209g of CO2. It has a 100L fuel tank, meaning it should be able to travel 1053km per full tank.
The Ford Transit measures 2785mm (109.6 inches) in height, 5771mm (227.2 inches) in length, 1987mm (78.2 inches) in width with a 3750mm (147.6 inches) wheelbase that brings about a total of 2283kg (5033.1 lbs) of unladen weight. The Transit 350L LWB HIGH ROOF comes standard with 235/65 R16 front tyres and 235/65 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2016 Ford Transit 350L LWB HIGH ROOF has a 118mm ground clearance with a 2750kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.150.
The VIN number can be found on the Driver Side Front Wheel Arch and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to WF0XXXTTGXEL00001.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Diesel Turbo Fuel Injection |
|---|---|
| Size (cc) | 2198 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 114kW |
| Power RPM | 3500 |
| Torque | 385Nm |
| Torque RPM | 1600 |
| Bore Stroke | 86x94.6 |
| Compression Ratio | 15.50 |
| Transmission | 6 Speed Manual |
|---|---|
| Final Gear Ratio | 3.150 |
| Suspension Front | coil spring, macpherson strut, hydraulic double acting shock absorber |
| Suspension Rear | leaf spring, hydraulic double acting shock absorber |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | RWD |
| Fuel Combined (L/100km) | 9.5 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 100 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 209 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 235/65 R16 |
| Tyre Rear | 235/65 R16 |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 2785 |
|---|---|
| Vehicle Length (mm) | 5771 |
| Vehicle Width (mm) | 1987 |
| Ground Clearance (mm) | 118 |
| Wheelbase (mm) | 3750 |
| Turning Circle (m) | 13.3 |
| Unladen Weight (kg) | 2283 |
| Gross Combined Weight (kg) | 5500 |
| Gross Vehicle Weight (kg) | 3550 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2750 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Front Floor |
|---|---|
| Country Of Origin | Germany |
| Number of Doors | 5 |
| Seats | 3 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Wheel Arch |
| VIN Number | WF0XXXTTGXEL00001 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 28/02/2017 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
