    Ford Transit

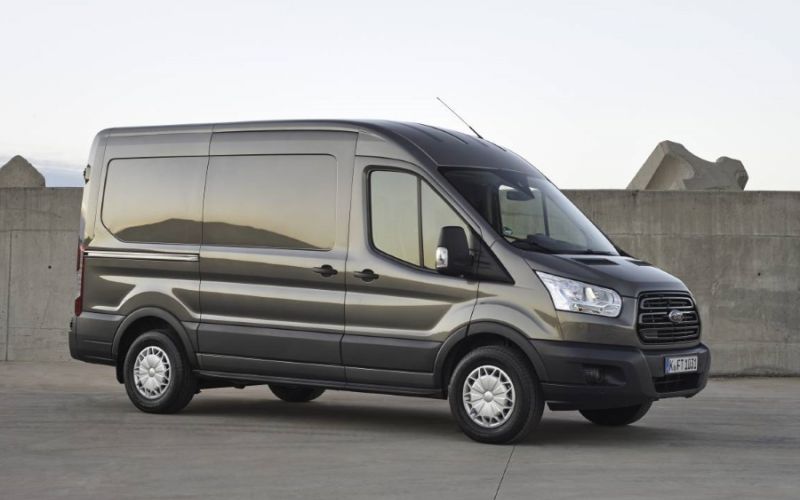

    2018 Ford Transit 350L LWB HIGH ROOF Pricing and Spec

    From

    $34,200

    excl. on-roads

    Overview

    The 2018 Ford Transit 350L LWB HIGH ROOF is a rear-wheel drive five-door van that was released to the Australian market on 1st January 2018 classified as a VO MY18.5. The Ford Transit is regarded as a 5d van built in Germany with prices from a dealer as a used car starting at $34,200.

    The Ford Transit is a rear-wheel drive 5 door with 3 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 114 kW of power (at 3500 rpm) and 385 Nm of torque (at 1600 rpm) via a Six-speed Manual. Ford claims the Transit 350L LWB HIGH ROOF uses 9.5L/100km of Diesel in the combined city and highway cycle while putting out 209g of CO2. It has a 100L fuel tank, meaning it should be able to travel 1053km per full tank.

    The Ford Transit measures 2785mm (109.6 inches) in height, 5771mm (227.2 inches) in length, 1987mm (78.2 inches) in width with a 3750mm (147.6 inches) wheelbase that brings about a total of 2283kg (5033.1 lbs) of unladen weight. The Transit 350L LWB HIGH ROOF comes standard with 235/65 R16 front tyres and 235/65 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100km warranty.

    The 2018 Ford Transit 350L LWB HIGH ROOF has a 118mm ground clearance with a 2750kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.15.

    The VIN number can be found on the Driver Side Front Wheel Arch and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to WF0XXXTTGXEL00001.

    Best For
    Work
    Transporting
    Warranty
    3Years
    or
    100,000 km
    Fuel Efficiency
    100 L1053 km
    5D VAN
    DIESEL
    2.2L
    REAR WHEEL DRIVE
    6 MT
    3
    5

    Dimensions

    2785mm
    1987mm
    5771mm

    The dimensions shown above are for the base model.

    Specifications

    TypeDIESEL TURBO F/INJ
    Size (cc)2198
    Size (L)2.2L
    InductionDIESEL TURBO 4
    CamshaftDUAL OVERHEAD CAM
    Valves/Ports per Cylinder16
    Power114kW
    Power RPM3500
    Torque385Nm
    Torque RPM1600
    Bore Stroke-
    Compression Ratio15.5

    Transmission6 SP MANUAL
    Final Gear Ratio3.15
    Suspension Front-
    Suspension Rear-
    Steering MechanismRACK & PINION - POWER ASSISTED
    DriveREAR WHEEL DRIVE

    Fuel Combined (L/100km)9.5
    Fuel Urban (L/100km)0
    Fuel Extra Urban (L/100km)0
    Tank Size (L)100
    Fuel TypeDIESEL
    e10 Compatibleunknown
    CO2 Combined209
    CO2 Urban-
    CO2 Extra Urban-

    Brake FrontDISC - VENTILATED
    Brake RearDISC
    Tyre Front235/65 R16
    Tyre Rear235/65 R16
    Front Rim Size6.5x16
    Rear Rim Size6.5x16

    Vehicle Height (mm)2785
    Vehicle Length (mm)5771
    Vehicle Width (mm)1987
    Ground Clearance (mm)118
    Wheelbase (mm)3750
    Turning Circle (m)13.3
    Unladen Weight (kg)2283
    Gross Combined Weight (kg)5500
    Gross Vehicle Weight (kg)3550
    Track Front-
    Track Rear-
    Towing Capacity Brake (kg)2750
    Towing Capacity Unbraked (kg)750

    Compliance Plate LocationPass Side Front Floor
    Country Of OriginGERMANY
    Number of Doors5
    Seats3
    Service Interval KMs15
    Service Interval Months12
    VIN LocationDriver Side Front Wheel Arch
    VIN NumberWF0XXXTTGXEL00001
    Warranty KMs100
    Warranty Months36
    Discontinued Date2018-05-31

    ANCAP Rating-
    Euro Air Pollution Standard-
