Overview

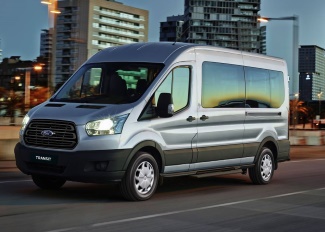

The 2018 Ford Transit 410L 12-SEAT BUS is a front-wheel drive BUS that was released to the Australian market on 121st May 2017 classified as a VO MY17.75. The Ford Transit is regarded as a bus built in United States Of America with prices from a dealer as a used car starting at $36,500.
The Ford Transit is a front-wheel drive 3 door with 12 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 114 kW of power (at 3500 rpm) and 385 Nm of torque (at 2300 rpm) via a Six-speed Manual. It has a 100L fuel tank.
The Ford Transit measures 2547mm (100.3 inches) in height, 5941mm (233.9 inches) in length, 2112mm (83.1 inches) in width with a 3750mm (147.6 inches) wheelbase that brings about a total of 2753kg (6069.3 lbs) of unladen weight. The Transit 410L 12-SEAT BUS comes standard with 215/65 R16 front tyres and 215/65 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2018 Ford Transit 410L 12-SEAT BUS has a 154mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.1.
The Ford Transit has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Wheel Arch and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to WFOHXXTTGHFK12345.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO CDI |
|---|---|
| Size (cc) | 2198 |
| Size (L) | 2.2L |
| Induction | DIESEL TURBO 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 114kW |
| Power RPM | 3500 |
| Torque | 385Nm |
| Torque RPM | 2300 |
| Bore Stroke | - |
| Compression Ratio | 17.5 |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | 4.1 |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FRONT WHEEL DRIVE |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 0 |
| Fuel Extra Urban (L/100km) | 0 |
| Tank Size (L) | 100 |
| Fuel Type | DIESEL |
| e10 Compatible | unknown |
| CO2 Combined | 174 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/65 R16 |
| Tyre Rear | 215/65 R16 |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 2547 |
|---|---|
| Vehicle Length (mm) | 5941 |
| Vehicle Width (mm) | 2112 |
| Ground Clearance (mm) | 154 |
| Wheelbase (mm) | 3750 |
| Turning Circle (m) | 13.3 |
| Unladen Weight (kg) | 2753 |
| Gross Combined Weight (kg) | 5500 |
| Gross Vehicle Weight (kg) | 4100 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Front Floor |
|---|---|
| Country Of Origin | UNITED STATES OF AMERICA |
| Number of Doors | 3 |
| Seats | 12 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Wheel Arch |
| VIN Number | WFOHXXTTGHFK12345 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2018-03-31 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
