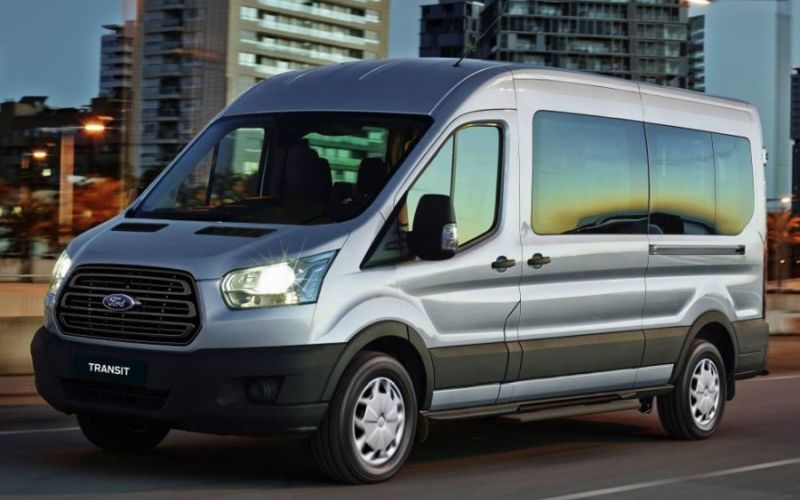

    Ford Transit

    2019 Ford Transit 410L 12-SEAT BUS (5 YR) Pricing and Spec

    From

    $39,700

    excl. on-roads

    Overview

    The 2019 Ford Transit 410L 12-SEAT BUS (5 YR) is a front-wheel drive BUS that was released to the Australian market on 121st May 2018 classified as a VO MY17.75. The Ford Transit is regarded as a bus built in United States Of America with prices from a dealer as a used car starting at $39,700.

    The Ford Transit is a front-wheel drive 3 door with 12 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 114 kW of power (at 3500 rpm) and 385 Nm of torque (at 2300 rpm) via a Six-speed Manual. It has a 100L fuel tank.

    The Ford Transit measures 2547mm (100.3 inches) in height, 5941mm (233.9 inches) in length, 2112mm (83.1 inches) in width with a 3750mm (147.6 inches) wheelbase that brings about a total of 2753kg (6069.3 lbs) of unladen weight. The Transit 410L 12-SEAT BUS (5 YR) comes standard with 215/65 R16 front tyres and 215/65 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimitedkm warranty.

    The 2019 Ford Transit 410L 12-SEAT BUS (5 YR) has a 154mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.1.

    The VIN number can be found on the Driver Side Front Wheel Arch and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to WFOHXXTTGHFK12345.

    Best For
    Work
    Transporting
    Warranty
    5Years
    or
    unlimited km
    BUS
    DIESEL
    2.2L
    FRONT WHEEL DRIVE
    6 MT
    12
    3

    Dimensions

    2547mm
    2112mm
    5941mm

    The dimensions shown above are for the base model.

    Specifications

    TypeTURBO CDI
    Size (cc)2198
    Size (L)2.2L
    InductionDIESEL TURBO 4
    CamshaftDUAL OVERHEAD CAM
    Valves/Ports per Cylinder16
    Power114kW
    Power RPM3500
    Torque385Nm
    Torque RPM2300
    Bore Stroke-
    Compression Ratio17.5

    Transmission6 SP MANUAL
    Final Gear Ratio4.1
    Suspension Front-
    Suspension Rear-
    Steering MechanismRACK & PINION - POWER ASSISTED
    DriveFRONT WHEEL DRIVE

    Fuel Combined (L/100km)-
    Fuel Urban (L/100km)0
    Fuel Extra Urban (L/100km)0
    Tank Size (L)100
    Fuel TypeDIESEL
    e10 Compatibleunknown
    CO2 Combined174
    CO2 Urban-
    CO2 Extra Urban-

    Brake FrontDISC
    Brake RearDISC
    Tyre Front215/65 R16
    Tyre Rear215/65 R16
    Front Rim Size6.5x16
    Rear Rim Size6.5x16

    Vehicle Height (mm)2547
    Vehicle Length (mm)5941
    Vehicle Width (mm)2112
    Ground Clearance (mm)154
    Wheelbase (mm)3750
    Turning Circle (m)13.3
    Unladen Weight (kg)2753
    Gross Combined Weight (kg)5500
    Gross Vehicle Weight (kg)4100
    Track Front-
    Track Rear-
    Towing Capacity Brake (kg)2500
    Towing Capacity Unbraked (kg)750

    Compliance Plate LocationPass Side Front Floor
    Country Of OriginUNITED STATES OF AMERICA
    Number of Doors3
    Seats12
    Service Interval KMs15
    Service Interval Months12
    VIN LocationDriver Side Front Wheel Arch
    VIN NumberWFOHXXTTGHFK12345
    Warranty KMs-
    Warranty Months60
    Discontinued Date2019-05-31

    ANCAP Rating-
    Euro Air Pollution StandardEURO 5
