Overview

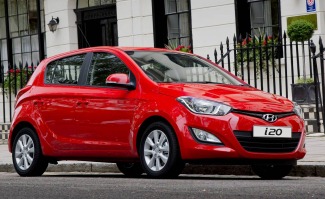

The 2013 Hyundai I20 ACTIVE is a front wheel drive 5 Door Hatchback that was released to the Australian market on 6th January 2012 classified as a PB MY12.5. The Hyundai I20 is regarded as a light built in India with prices from a dealer as a used car starting at $7,900.
The Hyundai I20 is a front wheel drive 5 door with 5 seats, powered by a 1.4L Inline 4 Cylinder engine that has 74 kW of power (at 5500 rpm) and 136 Nm of torque (at 4200 rpm) via a 4 Speed Automatic. Hyundai claims the i20 ACTIVE uses 6.4L/100km of unleaded petrol in the combined city and highway cycle while putting out 140g of CO2. It has a 45L fuel tank, meaning it should be able to travel 703km per full tank.
The Hyundai I20 measures 1490mm (58.7 inches) in height, 3940mm (155.1 inches) in length, 1710mm (67.3 inches) in width with a 2525mm (99.4 inches) wheelbase that brings about a total of 1110kg (2447.1 lbs) of unladen weight. The i20 ACTIVE comes standard with 175/70 R14 front tyres and 175/70 R14 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2013 Hyundai I20 ACTIVE has a 150mm ground clearance with a 1000kg braked and 450kg unbraked towing capacity.
The Hyundai I20 has received a 5 star rating from ANCAP. The VIN number can be found on the Pass Side Under Front Seat and the compliance plate is located on the Lower Pass Side A-Pillar. An example VIN number would be similar to MALBA51CLAM123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Multi Point Fuel Injection |
|---|---|
| Size (cc) | 1396 |
| Size (L) | - |
| Induction | Inline 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 74kW |
| Power RPM | 5500 |
| Torque | 136Nm |
| Torque RPM | 4200 |
| Bore Stroke | 77x74.99 |
| Compression Ratio | 10.50 |
| Transmission | 4 Speed Automatic |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | anti roll bar, coil spring, macpherson strut, hydraulic double acting shock absorber |
| Suspension Rear | anti roll bar, coil spring, torsion bar, hydraulic double acting shock absorber |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FWD |
| Fuel Combined (L/100km) | 6.4 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 45 |
| Fuel Type | unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 140 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 175/70 R14 |
| Tyre Rear | 175/70 R14 |
| Front Rim Size | 5x14 |
| Rear Rim Size | 5x14 |
| Vehicle Height (mm) | 1490 |
|---|---|
| Vehicle Length (mm) | 3940 |
| Vehicle Width (mm) | 1710 |
| Ground Clearance (mm) | 150 |
| Wheelbase (mm) | 2525 |
| Turning Circle (m) | 10.4 |
| Unladen Weight (kg) | 1110 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1565 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1000 |
| Towing Capacity Unbraked (kg) | 450 |
| Compliance Plate Location | Lower Pass Side A-Pillar |
|---|---|
| Country Of Origin | India |
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Pass Side Under Front Seat |
| VIN Number | MALBA51CLAM123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | 31/05/2013 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | - |
