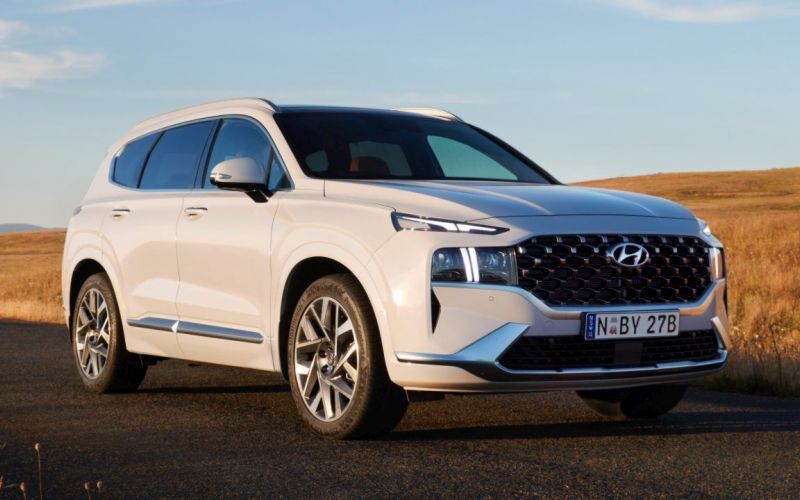

2022 Hyundai Santa Fe Highlander Crdi (awd) Pricing and Spec
From
$57,500
excl. on-roads
Overview
The 2022 Hyundai Santa Fe HIGHLANDER CRDi (AWD) is an all wheel drive 4 Door Wagon that was released to the Australian market on 12th January 2021 classified as a TM.V4 MY22. The Hyundai Santa Fe is regarded as a SUV large built in Korea with prices from a dealer as a used car starting at $57,500.
The Hyundai Santa Fe is an all wheel drive 4 door with 7 seats, powered by a 2.2L Diesel Turbo 4 Cylinder engine that has 148 kW of power (at 3800 rpm) and 440 Nm of torque (at 1750 rpm) via a 8 Speed Auto Dual Clutch. Hyundai claims the Santa Fe HIGHLANDER CRDi (AWD) uses 6.1L/100km of diesel in the combined city and highway cycle while putting out 160g of CO2. It has a 67L fuel tank, meaning it should be able to travel 1098km per full tank.
The Hyundai Santa Fe measures 1685mm (66.3 inches) in height, 4785mm (188.4 inches) in length, 1900mm (74.8 inches) in width with a 2765mm (108.9 inches) wheelbase that brings about a total of 1820kg (4012.4 lbs) of unladen weight. The Santa Fe HIGHLANDER CRDi (AWD) comes standard with 255/45 R20 105V XL front tyres and 255/45 R20 105V XL rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2022 Hyundai Santa Fe HIGHLANDER CRDi (AWD) has a 176mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.846.
The Hyundai Santa Fe has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Eng Scuttle and the compliance plate is located on the Pass Side Lower A-Pillar. An example VIN number would be similar to KMHS181HMJU123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Common Rail Diesel Injection |
|---|---|
| Size (cc) | 2151 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 148kW |
| Power RPM | 3800 |
| Torque | 440Nm |
| Torque RPM | 1750 |
| Bore Stroke | 83x99.4 |
| Compression Ratio | 16.00 |
| Transmission | 8 Speed Auto Dual Clutch |
|---|---|
| Final Gear Ratio | 4.846 |
| Suspension Front | macpherson strut |
| Suspension Rear | multi-link system |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | AWD |
| Fuel Combined (L/100km) | 6.1 |
|---|---|
| Fuel Urban (L/100km) | 7.5 |
| Fuel Extra Urban (L/100km) | 5.3 |
| Tank Size (L) | 67 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 160 |
| CO2 Urban | 198 |
| CO2 Extra Urban | 138 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 255/45 R20 105V XL |
| Tyre Rear | 255/45 R20 105V XL |
| Front Rim Size | 8.5Jx20 +54 |
| Rear Rim Size | 8.5Jx20 +54 |
| Vehicle Height (mm) | 1685 |
|---|---|
| Vehicle Length (mm) | 4785 |
| Vehicle Width (mm) | 1900 |
| Ground Clearance (mm) | 176 |
| Wheelbase (mm) | 2765 |
| Turning Circle (m) | 11.4 |
| Unladen Weight (kg) | 1820 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2610 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Lower A-Pillar |
|---|---|
| Country Of Origin | Korea |
| Number of Doors | 4 |
| Seats | 7 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Eng Scuttle |
| VIN Number | KMHS181HMJU123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | - |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
