Overview

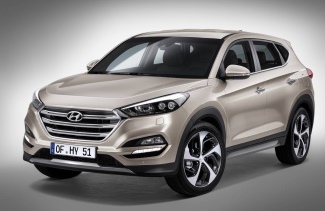

The 2017 Hyundai Tucson ACTIVE (FWD) is a front wheel drive 4 Door Wagon that was released to the Australian market on 4th January 2017 classified as a TL2 MY18. The Hyundai Tucson is regarded as a SUV medium built in Korea with prices from a dealer as a used car starting at $16,400.
The Hyundai Tucson is a front wheel drive 4 door with 5 seats, powered by a 2.0L Inline 4 Cylinder engine that has 121 kW of power (at 6200 rpm) and 203 Nm of torque (at 4700 rpm) via a 6 Speed Automatic. Hyundai claims the Tucson ACTIVE (FWD) uses 7.9L/100km of unleaded petrol in the combined city and highway cycle while putting out 182g of CO2. It has a 62L fuel tank, meaning it should be able to travel 785km per full tank.
The Hyundai Tucson measures 1655mm (65.2 inches) in height, 4477mm (176.3 inches) in length, 1850mm (72.8 inches) in width with a 2670mm (105.1 inches) wheelbase that brings about a total of 1584kg (3492.1 lbs) of unladen weight. The Tucson ACTIVE (FWD) comes standard with 225/60 R17 front tyres and 225/60 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2017 Hyundai Tucson ACTIVE (FWD) has a 172mm ground clearance with a 1600kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.510.
The Hyundai Tucson has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Pass Side Lower A-Pillar. An example VIN number would be similar to TMAJ#81S%&J000011.
Pros
- Available, torquey turbo-diesel
- Stylish, spacious interior
- Impressive safety credentials
Cons
- Disappointing base engine
- Styling polarises
- Too many touch-capacitive controls
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Gasoline Direct Injection |
|---|---|
| Size (cc) | 1999 |
| Size (L) | - |
| Induction | Inline 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 121kW |
| Power RPM | 6200 |
| Torque | 203Nm |
| Torque RPM | 4700 |
| Bore Stroke | 81x97 |
| Compression Ratio | 11.50 |
| Transmission | 6 Speed Automatic |
|---|---|
| Final Gear Ratio | 3.510 |
| Suspension Front | anti roll bar, coil spring, gas damper, macpherson strut |
| Suspension Rear | anti roll bar, multi-link system, coil spring, gas damper |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FWD |
| Fuel Combined (L/100km) | 7.9 |
|---|---|
| Fuel Urban (L/100km) | 10.9 |
| Fuel Extra Urban (L/100km) | 6.1 |
| Tank Size (L) | 62 |
| Fuel Type | unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 182 |
| CO2 Urban | 252 |
| CO2 Extra Urban | 142 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/60 R17 |
| Tyre Rear | 225/60 R17 |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1655 |
|---|---|
| Vehicle Length (mm) | 4477 |
| Vehicle Width (mm) | 1850 |
| Ground Clearance (mm) | 172 |
| Wheelbase (mm) | 2670 |
| Turning Circle (m) | 10.6 |
| Unladen Weight (kg) | 1584 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2090 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1600 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Lower A-Pillar |
|---|---|
| Country Of Origin | Korea |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | TMAJ#81S%&J000011 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | 31/08/2018 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | Euro 5 |
