Overview

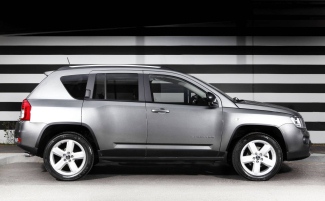

The 2012 Jeep Compass SPORT (4x4) is a four-wheel drive 4 Door Wagon that was released to the Australian market on 1st January 2012 classified as a MK MY12. The Jeep Compass is regarded as a SUV small built in United States Of America with prices from a dealer as a used car starting at $14,300.
The Jeep Compass is a four-wheel drive 4 door with 5 seats, powered by a 2.4L Inline 4 Cylinder engine that has 125 kW of power (at 6000 rpm) and 220 Nm of torque (at 4500 rpm) via a Continuous Variable. Jeep claims the Compass SPORT (4x4) uses 8.5L/100km of premium unleaded petrol in the combined city and highway cycle while putting out 201g of CO2. It has a 50L fuel tank, meaning it should be able to travel 588km per full tank.
The Jeep Compass measures 1663mm (65.5 inches) in height, 4448mm (175.1 inches) in length, 1812mm (71.3 inches) in width with a 2635mm (103.7 inches) wheelbase that brings about a total of 1437kg (3168.0 lbs) of unladen weight. The Compass SPORT (4x4) comes standard with 215/60 R17 front tyres and 215/60 R17 rear tyres. It requires a service every 6 months or 12,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2012 Jeep Compass SPORT (4x4) has a 205mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
The VIN number can be found on the Driver Side Eng Scuttle and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to 1C4NJDFB*#D000001.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Multi Point Fuel Injection |
|---|---|
| Size (cc) | 2359 |
| Size (L) | - |
| Induction | Inline 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 125kW |
| Power RPM | 6000 |
| Torque | 220Nm |
| Torque RPM | 4500 |
| Bore Stroke | 87.9x97 |
| Compression Ratio | 10.50 |
| Transmission | Continuous Variable |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | coil spring, macpherson strut, hydraulic double acting shock absorber |
| Suspension Rear | multi-link system, coil spring, hydraulic double acting shock absorber |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 8.5 |
|---|---|
| Fuel Urban (L/100km) | 10.9 |
| Fuel Extra Urban (L/100km) | 7.1 |
| Tank Size (L) | 50 |
| Fuel Type | premium unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 201 |
| CO2 Urban | 258 |
| CO2 Extra Urban | 167 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/60 R17 |
| Tyre Rear | 215/60 R17 |
| Front Rim Size | 6.5x17 |
| Rear Rim Size | 6.5x17 |
| Vehicle Height (mm) | 1663 |
|---|---|
| Vehicle Length (mm) | 4448 |
| Vehicle Width (mm) | 1812 |
| Ground Clearance (mm) | 205 |
| Wheelbase (mm) | 2635 |
| Turning Circle (m) | 11.0 |
| Unladen Weight (kg) | 1437 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1980 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Pass Side Centre Pillar |
|---|---|
| Country Of Origin | United States Of America |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 12 |
| Service Interval Months | 6 |
| VIN Location | Driver Side Eng Scuttle |
| VIN Number | 1C4NJDFB*#D000001 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 30/06/2013 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | Euro 5 |
