Overview

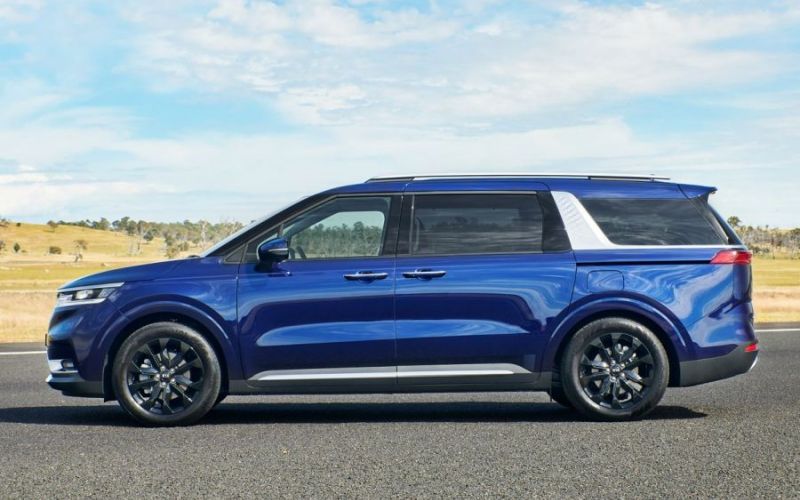

The 2021 Kia Carnival S is a front wheel drive 4 Door Wagon that was released to the Australian market on 7th January 2021 classified as a KA4 MY22. The Kia Carnival is regarded as a people movers up to 60k built in Korea with prices from a dealer as a used car starting at $40,200.
The Kia Carnival is a front wheel drive 4 door with 8 seats, powered by a 2.2L Diesel Turbo 4 Cylinder engine that has 148 kW of power (at 3800 rpm) and 440 Nm of torque (at 1750 rpm) via a 8 Speed Automatic. Kia claims the Carnival S uses 6.5L/100km of diesel in the combined city and highway cycle while putting out 170g of CO2. It has a 72L fuel tank, meaning it should be able to travel 1108km per full tank.
The Kia Carnival measures 1775mm (69.9 inches) in height, 5155mm (203.0 inches) in length, 1995mm (78.5 inches) in width with a 3090mm (121.7 inches) wheelbase that brings about a total of 2134kg (4704.7 lbs) of unladen weight. The Carnival S comes standard with 235/65 R17 front tyres and 235/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 84 month, unlimited kilometre warranty.
The 2021 Kia Carnival S has a 172mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
The Kia Carnival has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the LHS - Lower Door Aperture. An example VIN number would be similar to KNAN&81BM@6123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Common Rail Diesel Injection |
|---|---|
| Size (cc) | 2151 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 148kW |
| Power RPM | 3800 |
| Torque | 440Nm |
| Torque RPM | 1750 |
| Bore Stroke | 83x99.4 |
| Compression Ratio | 16.00 |
| Transmission | 8 Speed Automatic |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | macpherson strut |
| Suspension Rear | multi-link system |
| Steering Mechanism | ELECTRIC POWER STEERING |
| Drive | FWD |
| Fuel Combined (L/100km) | 6.5 |
|---|---|
| Fuel Urban (L/100km) | 7.8 |
| Fuel Extra Urban (L/100km) | 5.7 |
| Tank Size (L) | 72 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 170 |
| CO2 Urban | 205 |
| CO2 Extra Urban | 149 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 235/65 R17 |
| Tyre Rear | 235/65 R17 |
| Front Rim Size | 6.5Jx17 |
| Rear Rim Size | 6.5Jx17 |
| Vehicle Height (mm) | 1775 |
|---|---|
| Vehicle Length (mm) | 5155 |
| Vehicle Width (mm) | 1995 |
| Ground Clearance (mm) | 172 |
| Wheelbase (mm) | 3090 |
| Turning Circle (m) | 11.7 |
| Unladen Weight (kg) | 2134 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2876 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | LHS - Lower Door Aperture |
|---|---|
| Country Of Origin | Korea |
| Number of Doors | 4 |
| Seats | 8 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | KNAN&81BM@6123456 |
| Warranty KMs | 999 |
| Warranty Months | 84 |
| Discontinued Date | - |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
