Overview

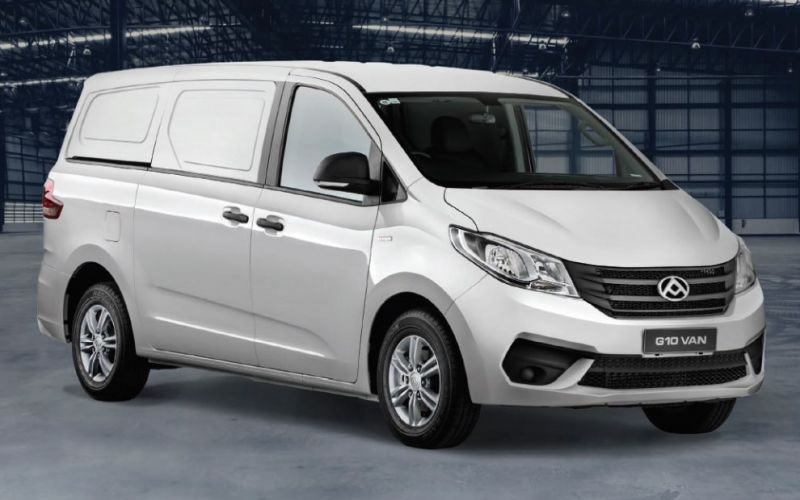

The 2021 Ldv G10 LIFT DOOR is a rear wheel drive 4 Door Van that was released to the Australian market on 10th January 2020 classified as a SV7C MY21. The Ldv G10 is regarded as a vans/cab chassis 2.5-3.5t built in China with prices from a dealer as a used car starting at $24,100.
The Ldv G10 is a rear wheel drive 4 door with 2 seats, powered by a 2.0L Turbo 4 Cylinder engine that has 165 kW of power (at 5500 rpm) and 330 Nm of torque (at 1700 rpm) via a 6 Speed Automatic. LDV claims the G10 LIFT DOOR uses 11.7L/100km of unleaded petrol in the combined city and highway cycle while putting out 272g of CO2. It has a 75L fuel tank, meaning it should be able to travel 641km per full tank.
The Ldv G10 measures 1928mm (75.9 inches) in height, 5168mm (203.5 inches) in length, 1980mm (78.0 inches) in width with a 3198mm (125.9 inches) wheelbase that brings about a total of 1907kg (4204.2 lbs) of unladen weight. The G10 LIFT DOOR comes standard with 215/70 R16 LT front tyres and 215/70 R16 LT rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2021 Ldv G10 LIFT DOOR has a 134mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
The Ldv G10 has received a 3 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to LSKG4AL13FA123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Gasoline Injection |
|---|---|
| Size (cc) | 1995 |
| Size (L) | - |
| Induction | Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 165kW |
| Power RPM | 5500 |
| Torque | 330Nm |
| Torque RPM | 1700 |
| Bore Stroke | 87.5x82 |
| Compression Ratio | 10.80 |
| Transmission | 6 Speed Automatic |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | macpherson strut |
| Suspension Rear | coil spring, 5 links |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | RWD |
| Fuel Combined (L/100km) | 11.7 |
|---|---|
| Fuel Urban (L/100km) | 16.3 |
| Fuel Extra Urban (L/100km) | 9.0 |
| Tank Size (L) | 75 |
| Fuel Type | unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 272 |
| CO2 Urban | 380 |
| CO2 Extra Urban | 209 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/70 R16 LT |
| Tyre Rear | 215/70 R16 LT |
| Front Rim Size | 6.5Jx16 |
| Rear Rim Size | 6.5Jx16 |
| Vehicle Height (mm) | 1928 |
|---|---|
| Vehicle Length (mm) | 5168 |
| Vehicle Width (mm) | 1980 |
| Ground Clearance (mm) | 134 |
| Wheelbase (mm) | 3198 |
| Turning Circle (m) | 11.8 |
| Unladen Weight (kg) | 1907 |
| Gross Combined Weight (kg) | 4750 |
| Gross Vehicle Weight (kg) | 3000 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Front Floor |
|---|---|
| Country Of Origin | China |
| Number of Doors | 4 |
| Seats | 2 |
| Service Interval KMs | 10 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | LSKG4AL13FA123456 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | - |
| ANCAP Rating | 3 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
