Overview

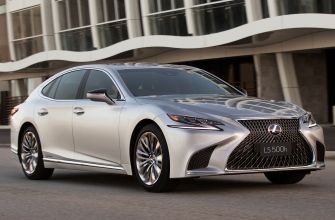

The 2017 Lexus Ls500h (hybrid) F SPORT is a rear wheel drive 4 Door Sedan that was released to the Australian market on 10th January 2017 classified as a GVF50R. The Lexus Ls500h (hybrid) is regarded as an upper large built in Japan with prices from a dealer as a used car starting at $84,200.
The Lexus Ls500h (hybrid) is a rear wheel drive 4 door with 5 seats, powered by a 3.5L V6 engine that has 220 kW of power (at 6000 rpm) and 350 Nm of torque (at 5100 rpm) via a Continuous Variable. Lexus claims the LS F SPORT uses 6.6L/100km of premium unleaded/electric in the combined city and highway cycle while putting out 150g of CO2. It has a 82L fuel tank, meaning it should be able to travel 1242km per full tank.
The Lexus Ls500h (hybrid) measures 1450mm (57.1 inches) in height, 5235mm (206.1 inches) in length, 1900mm (74.8 inches) in width with a 3125mm (123.0 inches) wheelbase that brings about a total of 2290kg (5048.6 lbs) of unladen weight. The LS F SPORT comes standard with 245/45 R20 front tyres and 275/40 R20 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 48 month, 100km warranty.
The 2017 Lexus Ls500h (hybrid) F SPORT has a 147mm ground clearance It has a final gear ratio of 3.615.
The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Driver Side Centre Pilla. An example VIN number would be similar to JTHBYLFF905123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Multi Point Fuel Injection |
|---|---|
| Size (cc) | 3456 |
| Size (L) | - |
| Induction | V6 |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 24 |
| Power | 220kW |
| Power RPM | 6000 |
| Torque | 350Nm |
| Torque RPM | 5100 |
| Bore Stroke | 94x83 |
| Compression Ratio | 13.00 |
| Transmission | Continuous Variable |
|---|---|
| Final Gear Ratio | 3.615 |
| Suspension Front | multi-link system |
| Suspension Rear | multi-link system |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | RWD |
| Fuel Combined (L/100km) | 6.6 |
|---|---|
| Fuel Urban (L/100km) | 7.8 |
| Fuel Extra Urban (L/100km) | 6.2 |
| Tank Size (L) | 82 |
| Fuel Type | premium unleaded/electric |
| e10 Compatible | - |
| CO2 Combined | 150 |
| CO2 Urban | 180 |
| CO2 Extra Urban | 142 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 245/45 R20 |
| Tyre Rear | 275/40 R20 |
| Front Rim Size | 8.5Jx20 |
| Rear Rim Size | 9.5Jx20 |
| Vehicle Height (mm) | 1450 |
|---|---|
| Vehicle Length (mm) | 5235 |
| Vehicle Width (mm) | 1900 |
| Ground Clearance (mm) | 147 |
| Wheelbase (mm) | 3125 |
| Turning Circle (m) | 11.4 |
| Unladen Weight (kg) | 2290 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2725 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | - |
| Towing Capacity Unbraked (kg) | - |
| Compliance Plate Location | Lower Driver Side Centre Pilla |
|---|---|
| Country Of Origin | Japan |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10 |
| Service Interval Months | 6 |
| VIN Location | Driver Side Front Floor |
| VIN Number | JTHBYLFF905123456 |
| Warranty KMs | 100 |
| Warranty Months | 48 |
| Discontinued Date | 31/08/2019 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EURO 6 |
