Overview

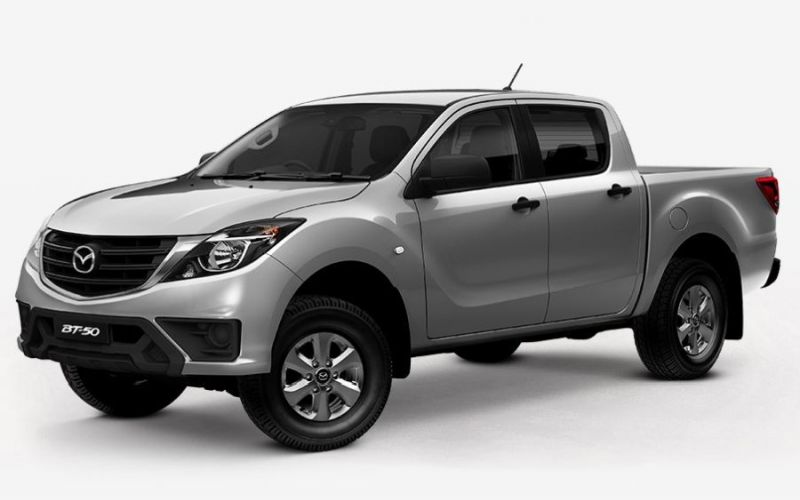

The 2018 Mazda Bt-50 XT (4x4) (5YR) is a four-wheel drive Dual Cab Utility that was released to the Australian market on 8th January 2018 classified as a . The Mazda Bt-50 is regarded as a pick up or cab chassis 4x4 built in Thailand with prices from a dealer as a used car starting at $30,900.
The Mazda Bt-50 is a four-wheel drive 4 door with 5 seats, powered by a 3.2L Diesel Turbo 5 Cylinder engine that has 147 kW of power (at 3000 rpm) and 470 Nm of torque (at 1750 rpm) via a 6 Speed Automatic. Mazda claims the BT-50 XT (4x4) (5YR) uses 10.0L/100km of diesel in the combined city and highway cycle while putting out 246g of CO2. It has a 80L fuel tank, meaning it should be able to travel 800km per full tank.
The Mazda Bt-50 measures 1815mm (71.5 inches) in height, 5373mm (211.5 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 2036kg (4488.6 lbs) of unladen weight. The BT-50 XT (4x4) (5YR) comes standard with 255/70 R16 front tyres and 255/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2018 Mazda Bt-50 XT (4x4) (5YR) has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.730.
The Mazda Bt-50 has received a 5 star rating from ANCAP. The VIN number can be found on the Centre Of Chassis Frame and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to MM0UP0Y#$00123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Diesel Turbo Fuel Injection |
|---|---|
| Size (cc) | 3196 |
| Size (L) | - |
| Induction | Diesel Turbo 5 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 20 |
| Power | 147kW |
| Power RPM | 3000 |
| Torque | 470Nm |
| Torque RPM | 1750 |
| Bore Stroke | 89x100.7 |
| Compression Ratio | 15.50 |
| Transmission | 6 Speed Automatic |
|---|---|
| Final Gear Ratio | 3.730 |
| Suspension Front | anti roll bar, coil spring, double wishbone, gas damper |
| Suspension Rear | leaf spring, hydraulic double acting shock absorber |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 10.0 |
|---|---|
| Fuel Urban (L/100km) | 12.4 |
| Fuel Extra Urban (L/100km) | 8.6 |
| Tank Size (L) | 80 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 246 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 255/70 R16 |
| Tyre Rear | 255/70 R16 |
| Front Rim Size | 7x16 |
| Rear Rim Size | 7x16 |
| Vehicle Height (mm) | 1815 |
|---|---|
| Vehicle Length (mm) | 5373 |
| Vehicle Width (mm) | 1850 |
| Ground Clearance (mm) | 232 |
| Wheelbase (mm) | 3220 |
| Turning Circle (m) | 12.4 |
| Unladen Weight (kg) | 2036 |
| Gross Combined Weight (kg) | 6000 |
| Gross Vehicle Weight (kg) | 3200 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 3500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Driver Side B-Pillar |
|---|---|
| Country Of Origin | Thailand |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Centre Of Chassis Frame |
| VIN Number | MM0UP0Y#$00123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | 31/07/2020 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
