    Mazda CX-5

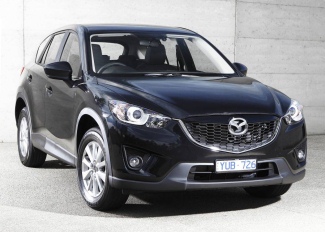

    2012 Mazda CX-5 MAXX SPORT (4x4) Pricing and Spec

    From

    $17,400

    excl. on-roads

    Overview

    The 2012 CX-5 Mazda MAXX SPORT (4x4) is an all-wheel drive four-door wagon that was released to the Australian market on 32nd February 2012 classified as a . The Mazda CX-5 is regarded as a 4d wagon built in Japan with prices from a dealer as a used car starting at $17,400.

    The Mazda CX-5 is an all-wheel drive 4 door with 5 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 129 kW of power (at 4500 rpm) and 420 Nm of torque (at 2000 rpm) via a Six-speed Automatic. Mazda claims the CX-5 MAXX SPORT (4x4) uses 5.7L/100km of Diesel in the combined city and highway cycle while putting out 149g of CO2. It has a 58L fuel tank, meaning it should be able to travel 1018km per full tank.

    The Mazda CX-5 measures 1710mm (67.3 inches) in height, 4540mm (178.7 inches) in length, 1840mm (72.4 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1637kg (3609.0 lbs) of unladen weight. The CX-5 MAXX SPORT (4x4) comes standard with 225/65 R17 front tyres and 225/65 R17 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 36 month, 100km warranty.

    The 2012 Mazda CX-5 MAXX SPORT (4x4) has a 150mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.09.

    The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to JM0KE102100123456.

    Best For
    Family
    Long distance
    Warranty
    3Years
    or
    100,000km
    Fuel Efficiency
    58 L1018 km
    4D WAGON
    DIESEL
    2.2L
    ALL WHEEL DRIVE
    6 AT
    5
    4

    Dimensions

    1710mm
    1840mm
    4540mm

    The dimensions shown above are for the base model.

    Specifications

    TypeDIESEL TURBO F/INJ
    Size (cc)2191
    Size (L)2.2L
    InductionDIESEL TURBO 4
    CamshaftDUAL OVERHEAD CAM
    Valves/Ports per Cylinder16
    Power129kW
    Power RPM4500
    Torque420Nm
    Torque RPM2000
    Bore Stroke-
    Compression Ratio14

    Transmission6 SP AUTOMATIC
    Final Gear Ratio4.09
    Suspension Front-
    Suspension Rear-
    Steering MechanismRACK & PINION - POWER ASSISTED
    DriveALL WHEEL DRIVE

    Fuel Combined (L/100km)5.7
    Fuel Urban (L/100km)0
    Fuel Extra Urban (L/100km)0
    Tank Size (L)58
    Fuel TypeDIESEL
    e10 Compatibleunknown
    CO2 Combined149
    CO2 Urban-
    CO2 Extra Urban-

    Brake FrontDISC - VENTILATED
    Brake RearDISC
    Tyre Front225/65 R17
    Tyre Rear225/65 R17
    Front Rim Size7x17
    Rear Rim Size7x17

    Vehicle Height (mm)1710
    Vehicle Length (mm)4540
    Vehicle Width (mm)1840
    Ground Clearance (mm)150
    Wheelbase (mm)2700
    Turning Circle (m)11.2
    Unladen Weight (kg)1637
    Gross Combined Weight (kg)0
    Gross Vehicle Weight (kg)0
    Track Front-
    Track Rear-
    Towing Capacity Brake (kg)1800
    Towing Capacity Unbraked (kg)750

    Compliance Plate LocationLower Pass Side Centre Pillar
    Country Of OriginJAPAN
    Number of Doors4
    Seats5
    Service Interval KMs10
    Service Interval Months12
    VIN LocationDriver Side Front Floor
    VIN NumberJM0KE102100123456
    Warranty KMs100
    Warranty Months36
    Discontinued Date2013-02-28

    ANCAP Rating-
    Euro Air Pollution Standard-
