Overview

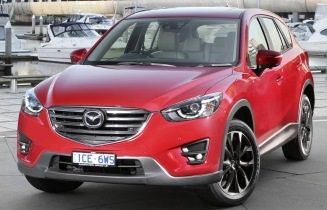

The 2016 Mazda Cx-5 AKERA (4x4) is an all wheel drive 4 Door Wagon that was released to the Australian market on 10th January 2016 classified as a MY17. The Mazda Cx-5 is regarded as a SUV medium built in Japan with prices from a dealer as a used car starting at $19,400.
The Mazda Cx-5 is an all wheel drive 4 door with 5 seats, powered by a 2.2L Diesel Turbo 4 Cylinder engine that has 129 kW of power (at 4500 rpm) and 420 Nm of torque (at 2000 rpm) via a 6 Speed Automatic. Mazda claims the CX-5 AKERA (4x4) uses 5.7L/100km of diesel in the combined city and highway cycle while putting out 149g of CO2. It has a 58L fuel tank, meaning it should be able to travel 1018km per full tank.
The Mazda Cx-5 measures 1710mm (67.3 inches) in height, 4540mm (178.7 inches) in length, 1840mm (72.4 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1687kg (3719.2 lbs) of unladen weight. The CX-5 AKERA (4x4) comes standard with 225/55 R19 front tyres and 225/55 R19 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 36 month, unlimited kilometre warranty.
The 2016 Mazda Cx-5 AKERA (4x4) has a 150mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.090.
The Mazda Cx-5 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to JM0KE102100123456.
Pros
- Fun to drive
- Comfortable ride
- Attractive, well-made interior
Cons
- Some rivals have more space
- Rivals have more technology
- Infotainment options are compromised
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Diesel Turbo Fuel Injection |
|---|---|
| Size (cc) | 2191 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 129kW |
| Power RPM | 4500 |
| Torque | 420Nm |
| Torque RPM | 2000 |
| Bore Stroke | 86x94.3 |
| Compression Ratio | 14.00 |
| Transmission | 6 Speed Automatic |
|---|---|
| Final Gear Ratio | 4.090 |
| Suspension Front | anti roll bar, coil spring, gas damper, macpherson strut |
| Suspension Rear | anti roll bar, multi-link system, coil spring, gas damper |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | AWD |
| Fuel Combined (L/100km) | 5.7 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 58 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 149 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/55 R19 |
| Tyre Rear | 225/55 R19 |
| Front Rim Size | 7x19 |
| Rear Rim Size | 7x19 |
| Vehicle Height (mm) | 1710 |
|---|---|
| Vehicle Length (mm) | 4540 |
| Vehicle Width (mm) | 1840 |
| Ground Clearance (mm) | 150 |
| Wheelbase (mm) | 2700 |
| Turning Circle (m) | 11.2 |
| Unladen Weight (kg) | 1687 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1800 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Pass Side Centre Pillar |
|---|---|
| Country Of Origin | Japan |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | JM0KE102100123456 |
| Warranty KMs | 999 |
| Warranty Months | 36 |
| Discontinued Date | 31/03/2017 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | - |
