    Mazda CX-5

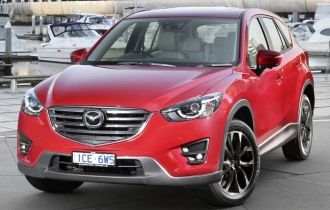

    2016 Mazda CX-5 GT SAFETY (4x4) Pricing and Spec

    From

    $19,400

    excl. on-roads

    Overview

    The 2016 CX-5 Mazda GT SAFETY (4x4) is an all-wheel drive four-door wagon that was released to the Australian market on 32nd February 2015 classified as a MY15. The Mazda CX-5 is regarded as a 4d wagon built in Japan with prices from a dealer as a used car starting at $19,400.

    The Mazda CX-5 is an all-wheel drive 4 door with 5 seats, powered by a 2.5L INLINE 4 engine that has 138 kW of power (at 5700 rpm) and 250 Nm of torque (at 4000 rpm) via a Six-speed Automatic. Mazda claims the CX-5 GT SAFETY (4x4) uses 7.4L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 172g of CO2. It has a 58L fuel tank, meaning it should be able to travel 784km per full tank.

    The Mazda CX-5 measures 1710mm (67.3 inches) in height, 4540mm (178.7 inches) in length, 1840mm (72.4 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1593kg (3512.0 lbs) of unladen weight. The CX-5 GT SAFETY (4x4) comes standard with 225/55 R19 front tyres and 225/55 R19 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 36 month, unlimitedkm warranty.

    The 2016 Mazda CX-5 GT SAFETY (4x4) has a 150mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.624.

    The Mazda CX-5 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to JM0KE107100123456.

    Best For
    Family
    Long distance
    Warranty
    3Years
    or
    unlimited km
    ANCAP Safety Rating
    Fuel Efficiency
    58 L784 km
    4D WAGON
    petrol
    2.5L
    ALL WHEEL DRIVE
    6 AT
    5
    4

    Dimensions

    1710mm
    1840mm
    4540mm

    The dimensions shown above are for the base model.

    Specifications

    TypeMULTI POINT F/INJ
    Size (cc)2488
    Size (L)2.5L
    InductionINLINE 4
    CamshaftVARIABLE DOUBLE OVERHEAD CAM
    Valves/Ports per Cylinder16
    Power138kW
    Power RPM5700
    Torque250Nm
    Torque RPM4000
    Bore Stroke-
    Compression Ratio13

    Transmission6 SP AUTOMATIC
    Final Gear Ratio4.624
    Suspension Front-
    Suspension Rear-
    Steering MechanismRACK & PINION - POWER ASSISTED
    DriveALL WHEEL DRIVE

    Fuel Combined (L/100km)7.4
    Fuel Urban (L/100km)0
    Fuel Extra Urban (L/100km)0
    Tank Size (L)58
    Fuel TypeUNLEADED PETROL
    e10 Compatibleunknown
    CO2 Combined172
    CO2 Urban-
    CO2 Extra Urban-

    Brake FrontDISC - VENTILATED
    Brake RearDISC
    Tyre Front225/55 R19
    Tyre Rear225/55 R19
    Front Rim Size7x19
    Rear Rim Size7x19

    Vehicle Height (mm)1710
    Vehicle Length (mm)4540
    Vehicle Width (mm)1840
    Ground Clearance (mm)150
    Wheelbase (mm)2700
    Turning Circle (m)11.2
    Unladen Weight (kg)1593
    Gross Combined Weight (kg)0
    Gross Vehicle Weight (kg)0
    Track Front-
    Track Rear-
    Towing Capacity Brake (kg)1800
    Towing Capacity Unbraked (kg)750

    Compliance Plate LocationLower Pass Side Centre Pillar
    Country Of OriginJAPAN
    Number of Doors4
    Seats5
    Service Interval KMs10
    Service Interval Months12
    VIN LocationDriver Side Front Floor
    VIN NumberJM0KE107100123456
    Warranty KMs-
    Warranty Months36
    Discontinued Date2016-10-31

    ANCAP Rating5
    Euro Air Pollution Standard-
