Overview

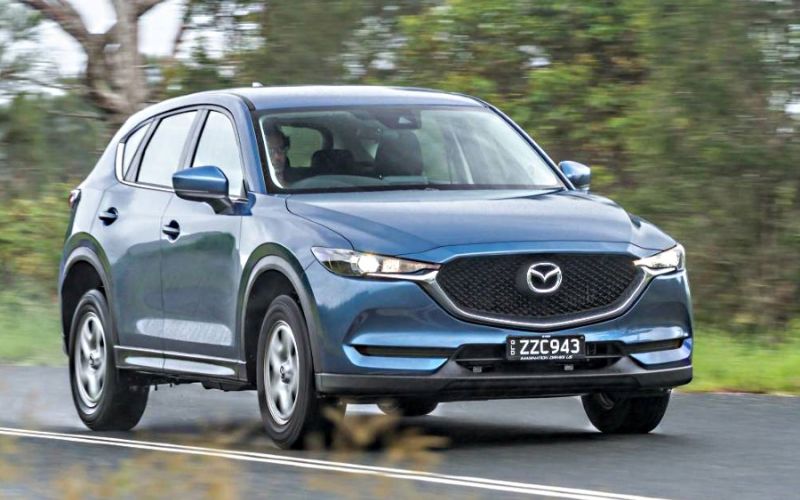

The 2018 Mazda Cx-5 MAXX (4x2) (5YR) is a front wheel drive 4 Door Wagon that was released to the Australian market on 8th January 2018 classified as a MY18 (KF SERIES 2). The Mazda Cx-5 is regarded as a SUV medium built in Japan with prices from a dealer as a used car starting at $21,000.
The Mazda Cx-5 is a front wheel drive 4 door with 5 seats, powered by a 2.0L Inline 4 Cylinder engine that has 115 kW of power (at 6000 rpm) and 200 Nm of torque (at 4000 rpm) via a 6 Speed Automatic. Mazda claims the CX-5 MAXX (4x2) (5YR) uses 6.9L/100km of unleaded petrol in the combined city and highway cycle while putting out 161g of CO2. It has a 56L fuel tank, meaning it should be able to travel 812km per full tank.
The Mazda Cx-5 measures 1675mm (65.9 inches) in height, 4550mm (179.1 inches) in length, 1840mm (72.4 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1490kg (3284.9 lbs) of unladen weight. The CX-5 MAXX (4x2) (5YR) comes standard with 225/65 R17 front tyres and 225/65 R17 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2018 Mazda Cx-5 MAXX (4x2) (5YR) has a 193mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.624.
The Mazda Cx-5 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to JM0KF2W7A00123456.
Pros
- Fun to drive
- Comfortable ride
- Attractive, well-made interior
Cons
- Some rivals have more space
- Rivals have more technology
- Infotainment options are compromised
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Multi Point Fuel Injection |
|---|---|
| Size (cc) | 1997 |
| Size (L) | - |
| Induction | Inline 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 115kW |
| Power RPM | 6000 |
| Torque | 200Nm |
| Torque RPM | 4000 |
| Bore Stroke | 83.5x91.2 |
| Compression Ratio | 13.00 |
| Transmission | 6 Speed Automatic |
|---|---|
| Final Gear Ratio | 4.624 |
| Suspension Front | anti roll bar, coil spring, gas damper, macpherson strut |
| Suspension Rear | anti roll bar, multi-link system, coil spring, gas damper |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FWD |
| Fuel Combined (L/100km) | 6.9 |
|---|---|
| Fuel Urban (L/100km) | 8.4 |
| Fuel Extra Urban (L/100km) | 6.1 |
| Tank Size (L) | 56 |
| Fuel Type | unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 161 |
| CO2 Urban | 194 |
| CO2 Extra Urban | 142 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/65 R17 |
| Tyre Rear | 225/65 R17 |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1675 |
|---|---|
| Vehicle Length (mm) | 4550 |
| Vehicle Width (mm) | 1840 |
| Ground Clearance (mm) | 193 |
| Wheelbase (mm) | 2700 |
| Turning Circle (m) | 11.2 |
| Unladen Weight (kg) | 1490 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1800 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Pass Side Centre Pillar |
|---|---|
| Country Of Origin | Japan |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | JM0KF2W7A00123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | 30/11/2018 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
