    Mazda CX-5

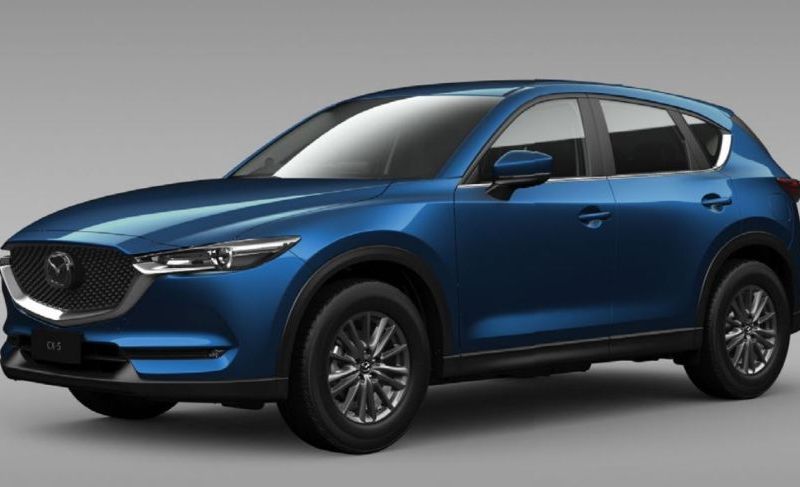

    2021 Mazda CX-5 MAXX SPORT (AWD) Pricing and Spec

    From

    $31,300

    excl. on-roads

    Overview

    The 2021 Mazda CX-5 MAXX SPORT (AWD) is an all-wheel drive four-door wagon that was released to the Australian market on 1st January 2021 classified as a CX5K. The Mazda CX-5 is regarded as a 4d wagon built in Japan with prices from a dealer as a used car starting at $31,300.

    The Mazda CX-5 is an all-wheel drive 4 door with 5 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 140 kW of power (at 4500 rpm) and 420 Nm of torque (at 2000 rpm) via a Six-speed Automatic. Mazda claims the CX-5 MAXX SPORT (AWD) uses 6L/100km of Diesel in the combined city and highway cycle while putting out 158g of CO2. It has a 58L fuel tank, meaning it should be able to travel 967km per full tank.

    The Mazda CX-5 measures 1675mm (65.9 inches) in height, 4550mm (179.1 inches) in length, 1840mm (72.4 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1715kg (3780.9 lbs) of unladen weight. The CX-5 MAXX SPORT (AWD) comes standard with 225/65 R17 front tyres and 225/65 R17 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 60 month, unlimitedkm warranty.

    The 2021 Mazda CX-5 MAXX SPORT (AWD) has a 193mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.09.

    The Mazda CX-5 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to JM0KF4W2A00123456.

    Best For
    Family
    Long distance
    Warranty
    5Years
    or
    unlimited km
    ANCAP Safety Rating
    Fuel Efficiency
    58 L967 km
    4D WAGON
    DIESEL
    2.2L
    ALL WHEEL DRIVE
    6 AT
    5
    4

    Dimensions

    1675mm
    1840mm
    4550mm

    The dimensions shown above are for the base model.

    Specifications

    TypeTWIN TURBO CDI
    Size (cc)2191
    Size (L)2.2L
    InductionDIESEL TURBO 4
    CamshaftDUAL OVERHEAD CAM
    Valves/Ports per Cylinder16
    Power140kW
    Power RPM4500
    Torque420Nm
    Torque RPM2000
    Bore Stroke-
    Compression Ratio14.4

    Transmission6 SP AUTOMATIC
    Final Gear Ratio4.09
    Suspension Front-
    Suspension Rear-
    Steering MechanismRACK & PINION - POWER ASSISTED
    DriveALL WHEEL DRIVE

    Fuel Combined (L/100km)6
    Fuel Urban (L/100km)7
    Fuel Extra Urban (L/100km)5.5
    Tank Size (L)58
    Fuel TypeDIESEL
    e10 Compatibleunknown
    CO2 Combined158
    CO2 Urban183
    CO2 Extra Urban144

    Brake FrontDISC - VENTILATED
    Brake RearDISC
    Tyre Front225/65 R17
    Tyre Rear225/65 R17
    Front Rim Size7Jx17
    Rear Rim Size7Jx17

    Vehicle Height (mm)1675
    Vehicle Length (mm)4550
    Vehicle Width (mm)1840
    Ground Clearance (mm)193
    Wheelbase (mm)2700
    Turning Circle (m)11.8
    Unladen Weight (kg)1715
    Gross Combined Weight (kg)0
    Gross Vehicle Weight (kg)2215
    Track Front-
    Track Rear-
    Towing Capacity Brake (kg)1800
    Towing Capacity Unbraked (kg)750

    Compliance Plate LocationLower Pass Side Centre Pillar
    Country Of OriginJAPAN
    Number of Doors4
    Seats5
    Service Interval KMs10
    Service Interval Months12
    VIN LocationDriver Side Front Floor
    VIN NumberJM0KF4W2A00123456
    Warranty KMs-
    Warranty Months60
    Discontinued Date-

    ANCAP Rating5
    Euro Air Pollution StandardEURO 5
