Overview

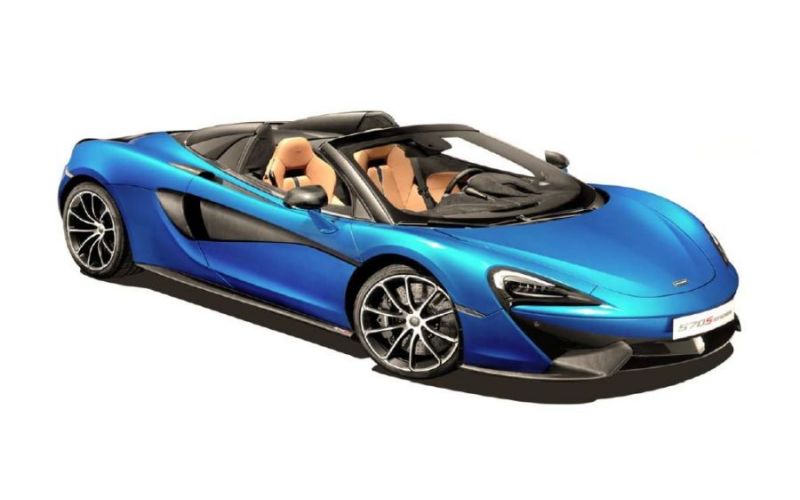

The 2018 Mclaren 570s SPIDER is a rear wheel drive 2 Door Convertible that was released to the Australian market on 4th January 2018 classified as a MY19. The Mclaren 570s is regarded as a sports built in England with prices from a dealer as a used car starting at $0.
The Mclaren 570s is a rear wheel drive 2 door with 2 seats, powered by a 3.8L Turbo V8 engine that has 419 kW of power (at 7400 rpm) and 600 Nm of torque (at 5000 rpm) via a 7 Speed Auto Dual Clutch. McLaren claims the 570S SPIDER uses 11.1L/100km of premium unleaded petrol in the combined city and highway cycle while putting out 249g of CO2. It has a 72L fuel tank, meaning it should be able to travel 649km per full tank.
The Mclaren 570s measures 1194mm (47.0 inches) in height, 4530mm (178.3 inches) in length, 1914mm (75.4 inches) in width with a 2670mm (105.1 inches) wheelbase that brings about a total of 1439kg (3172.4 lbs) of unladen weight. The 570S SPIDER comes standard with 225/35 R19 front tyres and 285/35 R20 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, unlimited kilometre warranty.
The 2018 Mclaren 570s SPIDER has a 100mm ground clearance
The VIN number can be found on the On Floor Behind Driver Seat and the compliance plate is located on the Pass Side on Door Apert.. An example VIN number would be similar to SBM13FAD3JW000123.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Twin Turbo Multi Point Fuel Injection |
|---|---|
| Size (cc) | 3799 |
| Size (L) | - |
| Induction | Turbo V8 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 32 |
| Power | 419kW |
| Power RPM | 7400 |
| Torque | 600Nm |
| Torque RPM | 5000 |
| Bore Stroke | 93x69.9 |
| Compression Ratio | - |
| Transmission | 7 Speed Auto Dual Clutch |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | double wishbone, adaptive damping system |
| Suspension Rear | double wishbone, adaptive damping system |
| Steering Mechanism | ELECTRO HYDRAULIC POWER STEERING |
| Drive | RWD |
| Fuel Combined (L/100km) | 11.1 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 72 |
| Fuel Type | premium unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 249 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 225/35 R19 |
| Tyre Rear | 285/35 R20 |
| Front Rim Size | 8Jx19 |
| Rear Rim Size | 10Jx20 |
| Vehicle Height (mm) | 1194 |
|---|---|
| Vehicle Length (mm) | 4530 |
| Vehicle Width (mm) | 1914 |
| Ground Clearance (mm) | 100 |
| Wheelbase (mm) | 2670 |
| Turning Circle (m) | 12.4 |
| Unladen Weight (kg) | 1439 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | - |
| Towing Capacity Unbraked (kg) | - |
| Compliance Plate Location | Pass Side on Door Apert. |
|---|---|
| Country Of Origin | England |
| Number of Doors | 2 |
| Seats | 2 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | On Floor Behind Driver Seat |
| VIN Number | SBM13FAD3JW000123 |
| Warranty KMs | 999 |
| Warranty Months | 36 |
| Discontinued Date | - |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
