Overview

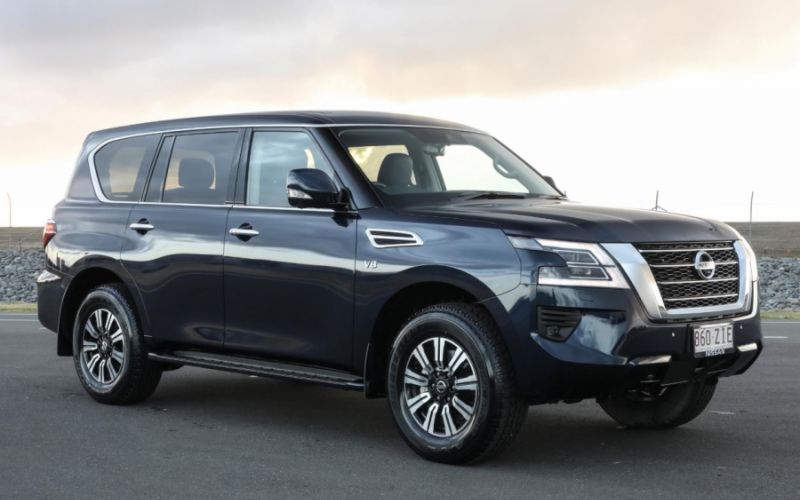

The 2021 Nissan Patrol Ti (4x4) is a four-wheel drive 4 Door Wagon that was released to the Australian market on 11th January 2019 classified as a Y62 SERIES 5 MY20. The Nissan Patrol is regarded as a SUV upper large built in Japan with prices from a dealer as a used car starting at $80,300.
The Nissan Patrol is a four-wheel drive 4 door with 8 seats, powered by a 5.6L V8 engine that has 298 kW of power (at 5800 rpm) and 560 Nm of torque (at 4000 rpm) via a 7 Speed Automatic. Nissan claims the Patrol Ti (4x4) uses 14.4L/100km of premium unleaded petrol in the combined city and highway cycle while putting out 334g of CO2. It has a 140L fuel tank, meaning it should be able to travel 972km per full tank.
The Nissan Patrol measures 1940mm (76.4 inches) in height, 5165mm (203.3 inches) in length, 1995mm (78.5 inches) in width with a 3080mm (121.3 inches) wheelbase that brings about a total of 2800kg (6172.9 lbs) of unladen weight. The Patrol Ti (4x4) comes standard with 265/70 R18 front tyres and 265/70 R18 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2021 Nissan Patrol Ti (4x4) has a 272mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.357.
The VIN number can be found on the Mid Driver Side Chassis and the compliance plate is located on the Lower Pass Side B-Pillar. An example VIN number would be similar to JN1TANY62A0123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Gasoline Direct Injection |
|---|---|
| Size (cc) | 5552 |
| Size (L) | - |
| Induction | V8 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 32 |
| Power | 298kW |
| Power RPM | 5800 |
| Torque | 560Nm |
| Torque RPM | 4000 |
| Bore Stroke | 98x92 |
| Compression Ratio | 11.20 |
| Transmission | 7 Speed Automatic |
|---|---|
| Final Gear Ratio | 3.357 |
| Suspension Front | coil spring, independent double wishbone |
| Suspension Rear | coil spring, independent double wishbone |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 14.4 |
|---|---|
| Fuel Urban (L/100km) | 20.2 |
| Fuel Extra Urban (L/100km) | 11.0 |
| Tank Size (L) | 140 |
| Fuel Type | premium unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 334 |
| CO2 Urban | 470 |
| CO2 Extra Urban | 258 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 265/70 R18 |
| Tyre Rear | 265/70 R18 |
| Front Rim Size | 8x18 |
| Rear Rim Size | 8x18 |
| Vehicle Height (mm) | 1940 |
|---|---|
| Vehicle Length (mm) | 5165 |
| Vehicle Width (mm) | 1995 |
| Ground Clearance (mm) | 272 |
| Wheelbase (mm) | 3080 |
| Turning Circle (m) | 12.5 |
| Unladen Weight (kg) | 2800 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3500 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 3500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Pass Side B-Pillar |
|---|---|
| Country Of Origin | Japan |
| Number of Doors | 4 |
| Seats | 8 |
| Service Interval KMs | 10 |
| Service Interval Months | 12 |
| VIN Location | Mid Driver Side Chassis |
| VIN Number | JN1TANY62A0123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | 31/01/2021 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
