2020 Volkswagen Transporter Tdi340 Swb Pricing and Spec
From
$26,700
excl. on-roads
Overview

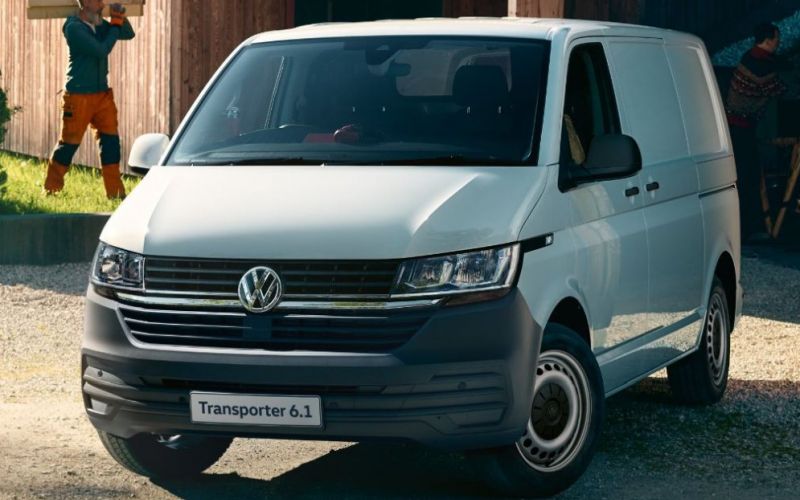

The 2020 Volkswagen Transporter TDI340 SWB is a front wheel drive 3 Door Van that was released to the Australian market on 7th January 2020 classified as a T6.1 MY21. The Volkswagen Transporter is regarded as a van built in Germany with prices from a dealer as a used car starting at $26,700.
The Volkswagen Transporter is a front wheel drive 3 door with 3 seats, powered by a 2.0L Diesel Turbo 4 Cylinder engine that has 111 kW of power (at 3250 rpm) and 340 Nm of torque (at 1500 rpm) via a 6 Speed Manual. Volkswagen claims the Transporter TDI340 SWB uses 7.5L/100km of diesel in the combined city and highway cycle while putting out 0g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1067km per full tank.
The Volkswagen Transporter measures 1990mm (78.3 inches) in height, 4804mm (189.1 inches) in length, 1904mm (75.0 inches) in width with a 3000mm (118.1 inches) wheelbase that brings about a total of 1780kg (3924.2 lbs) of unladen weight. The Transporter TDI340 SWB comes standard with 205/65 R16C front tyres and 205/65 R16C rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2020 Volkswagen Transporter TDI340 SWB has a 201mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
The VIN number can be found on the Centre Eng Bay Scuttle and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to WV1ZZZ7HZ@*123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Diesel Direct Injection |
|---|---|
| Size (cc) | 1968 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 111kW |
| Power RPM | 3250 |
| Torque | 340Nm |
| Torque RPM | 1500 |
| Bore Stroke | 81x95.5 |
| Compression Ratio | 16.00 |
| Transmission | 6 Speed Manual |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | anti roll bar, coil spring, independant macpherson strut |
| Suspension Rear | anti roll bar, coil spring, independant longitudinal arms |
| Steering Mechanism | ELECTROMECHANICAL POWER STEERING |
| Drive | FWD |
| Fuel Combined (L/100km) | 7.5 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 205/65 R16C |
| Tyre Rear | 205/65 R16C |
| Front Rim Size | 6.5Jx16 |
| Rear Rim Size | 6.5Jx16 |
| Vehicle Height (mm) | 1990 |
|---|---|
| Vehicle Length (mm) | 4804 |
| Vehicle Width (mm) | 1904 |
| Ground Clearance (mm) | 201 |
| Wheelbase (mm) | 3000 |
| Turning Circle (m) | 11.9 |
| Unladen Weight (kg) | 1780 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3000 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Front Floor |
|---|---|
| Country Of Origin | Germany |
| Number of Doors | 3 |
| Seats | 3 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Centre Eng Bay Scuttle |
| VIN Number | WV1ZZZ7HZ@*123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | 30/06/2021 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
