The Aussie-developed Ranger Raptor set to compete in this week’s Baja 1000 off-road race in Mexico “isn’t far off what you can drive off the showroom floor”, according to Ford Performance.
As with the 2017 class-winning F-150 Raptor, the Ranger Raptor Baja racer has been built to comply with the stock category, which means the 3.0-litre twin-turbo petrol V6, 10-speed automatic transmission, driveline, and suspension are all from the road version you can buy.
“The Baja 1000 is known around the world as one of the toughest off-road races on the planet,” said Ford Performance engineering manager in Australia Justin Capicchiano.
“It’s a difficult race to go and enter any vehicle into, let alone a production vehicle, and the Ranger Raptor we’re racing isn’t far off what you can drive off the showroom floor. We want to show the absolute capability of this truck.”
Working within the rules of the ‘Stock Mid-Size’ class, modifications to the Raptor Baja racer were limited to vehicle and crew safety items, wheels, tyres, driving and safety lights, underbody and vehicle protection, and the 160L fuel tank fitted into the tray.
Brake discs and callipers are also standard but high-temperature brake pads have been fitted, and it uses DOT4 racing brake fluid. The airbags and active cruise control have also been removed.
The Ranger Raptor Baja racer will be powered by a lower-carbon Shell biofuel blend which consists of more than 30 per cent sustainably sourced bio components, Ford claims.

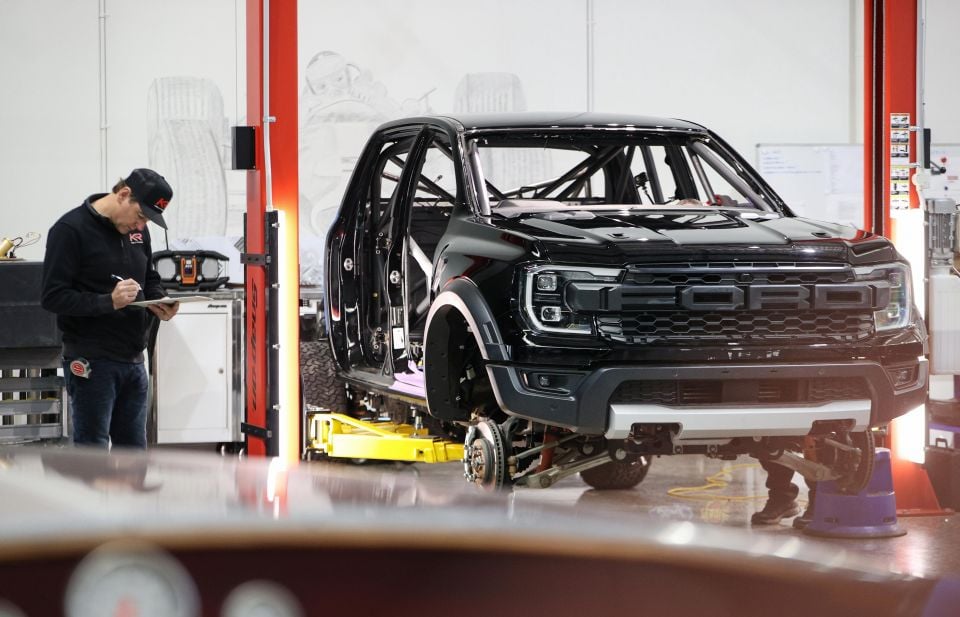

Given the Ranger global development program is led by Ford Australia, it makes sense that the Baja racer had extensive local input. Ford Performance worked with Kelly Racing on the project over a 10-week period, and the vehicle remains right-hand drive.
“I’d heard the stories about this Ranger Raptor, but it wasn’t until I got my hands on it and drove the thing that I realised just how impressive it is,” said Kelly Racing team principal (and V8 Supercar veteran) Todd Kelly.
“The powertrain, the chassis, the suspension have been built to do Baja, so all we had to do was work within the rules of the class and fit the cage, the fuel system, and safety gear.

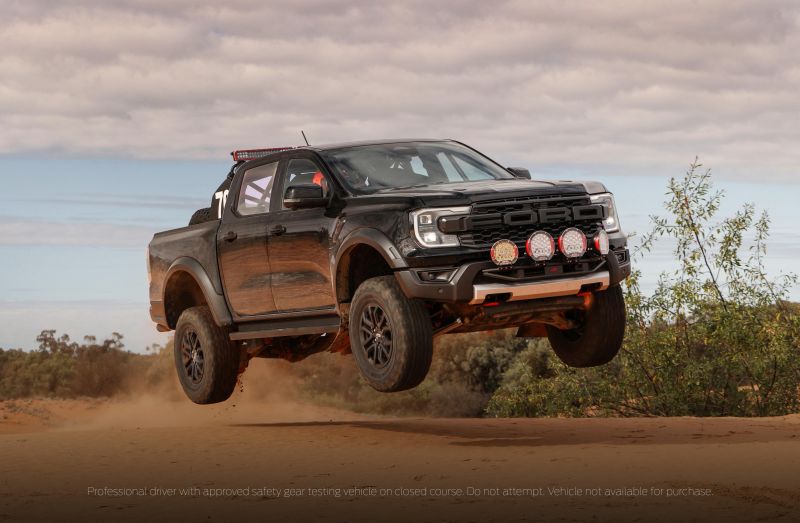

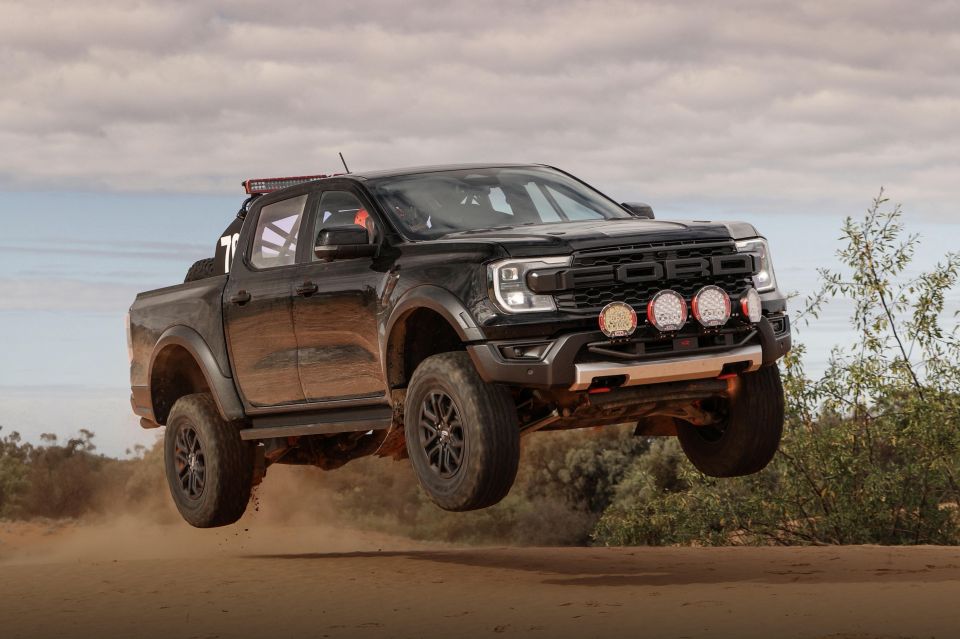

“I was lucky enough to do a lot of the driving during the shakedown testing in the Outback and I was completely blown away with how capable the truck is out of the box. I was finding that I was pushing it as hard as I could across dunes and along rutted tracks and yet the truck still felt like it had heaps left to give.”
Off-Road Motorsports Hall of Famer Brad Lovell, who runs one of Ford Performance’s off-road racing teams, was brought in to further develop the race Raptor in the US and to be one of the drivers in the Baja race.
“The truck was built by Kelly Racing in Australia, arrived on a plane in California and we headed straight to Johnson Valley for testing with final prep support from our good friends at Huseman Engineering,” he said.
“All the guys who drove it were impressed with it but being right-hand- drive we all needed a little reprogramming for what it’s like to be driving on the other side of the truck and not smoke the opposite side against the rocks.”
As well as Lovell, the race-prepared Ranger Raptor will be driven by Baja veterans Loren Healy and Jason Hutter. Also sharing the cockpit will be the father and son team of Andy and Danny Brown from listed Australian off-road accessories giant (and Ford partner) ARB.
Ford Ranger Raptor Baja 1000 racer key specs
Powertrain
- 3.0-litre V6 petrol
- Twin-turbo
- 294kW and 583Nm
- 10-speed automatic
- Full-time 4×4
- 160-litre fuel cell in tray
Wheels, tyres and suspension
- 17-inch Method’s Bead Grip forged aluminium wheels
- 315/70 R17 BF Goodrich K02 tyres
- Standard front and rear suspension arrangement with Fox Shocks
Off-road protection
- Tubular front nudge bar
- Underbody protection along the chassis beyond the transmission
- Additional shielding on key suspension components

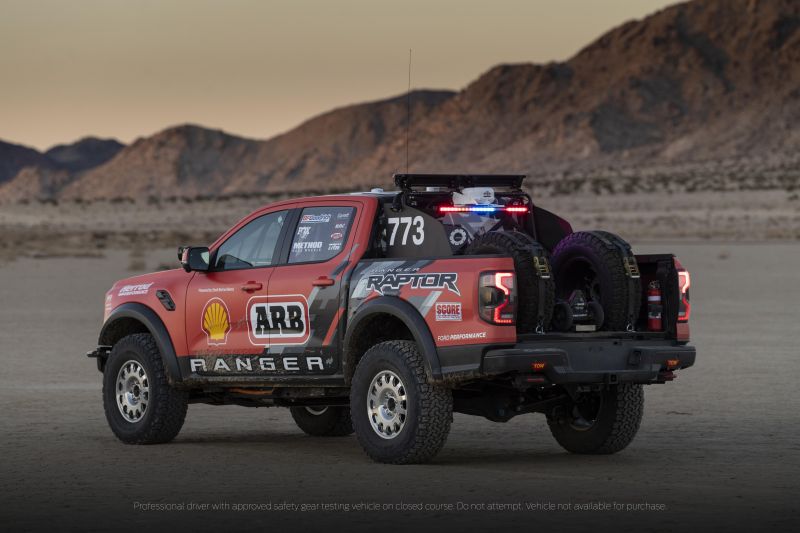

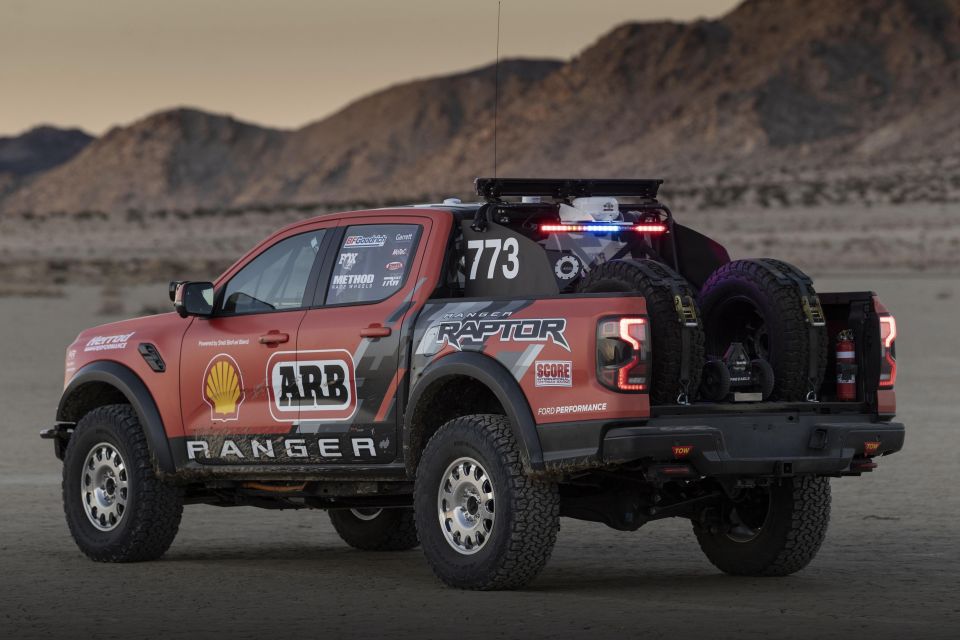

- Rear section removable cage structure that integrates the race fuel tank and filler, upper light bar and satellite-navigation antenna
Exterior
- Perspex rear windows

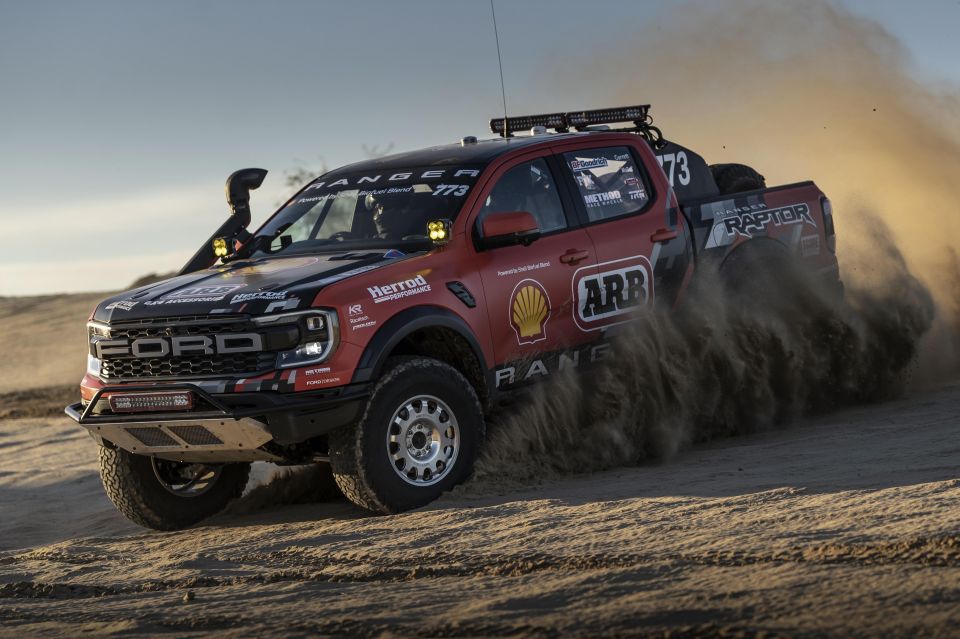

- Custom snorkel
- TRED Pro Recovery boards
- ARB lightbar, driving lights, exterior and interior work lights

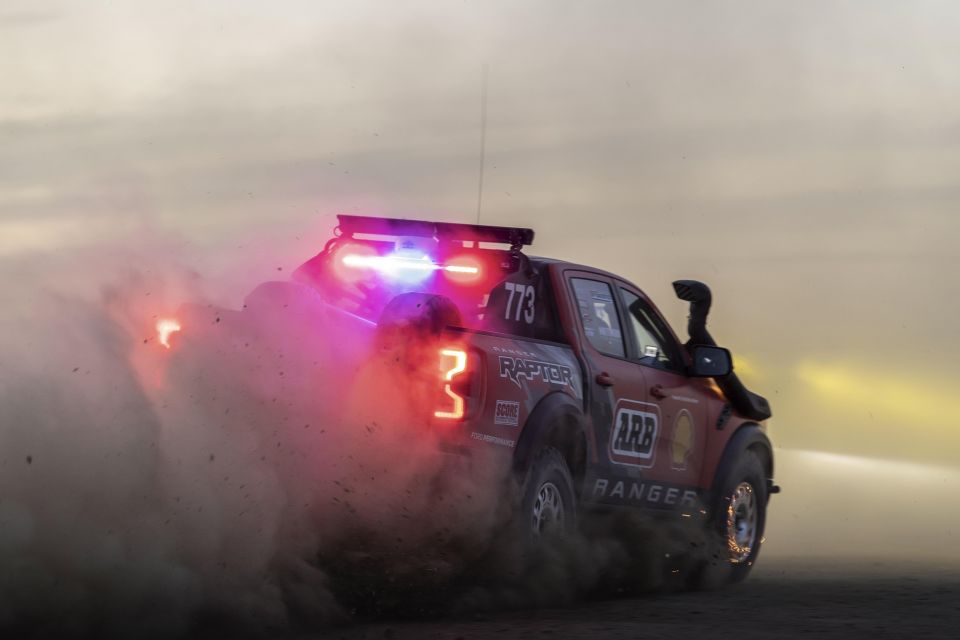

- Rear facing proximity and class light, brake and tail lights, flashing amber and solid blue light
- Spare wheel chase rack with provision for bed-mounted spare and appropriate retention points, plus two spare wheels
- Quick jacking system utilising off -road trolley jack
Interior
- MoTeC PDM30 to control fuel system, auxiliary lighting, sirens, radios, navigation, and driver/navigator helmet ventilation system
- MoTeC C127 display for navigator
- MoTeC D153 display for driver
- Lowrance GPS system
- Support toolkit and onboard spares
Safety

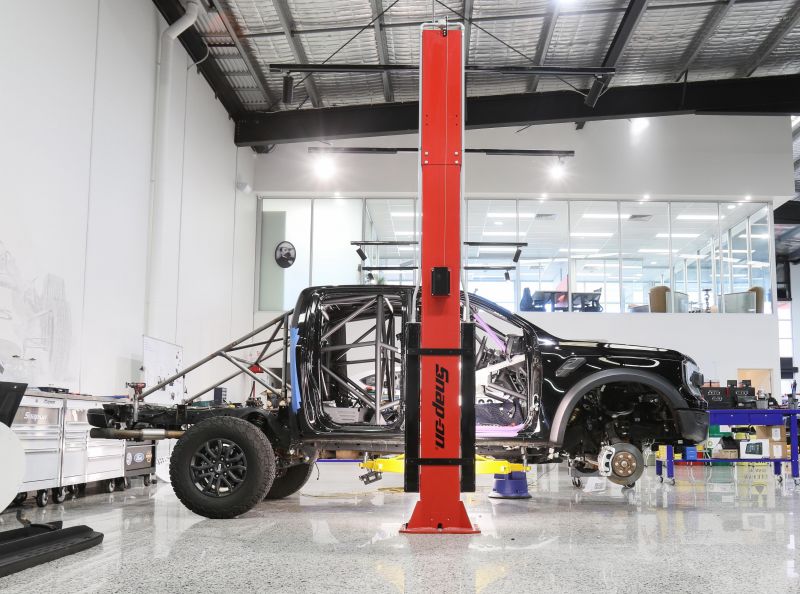

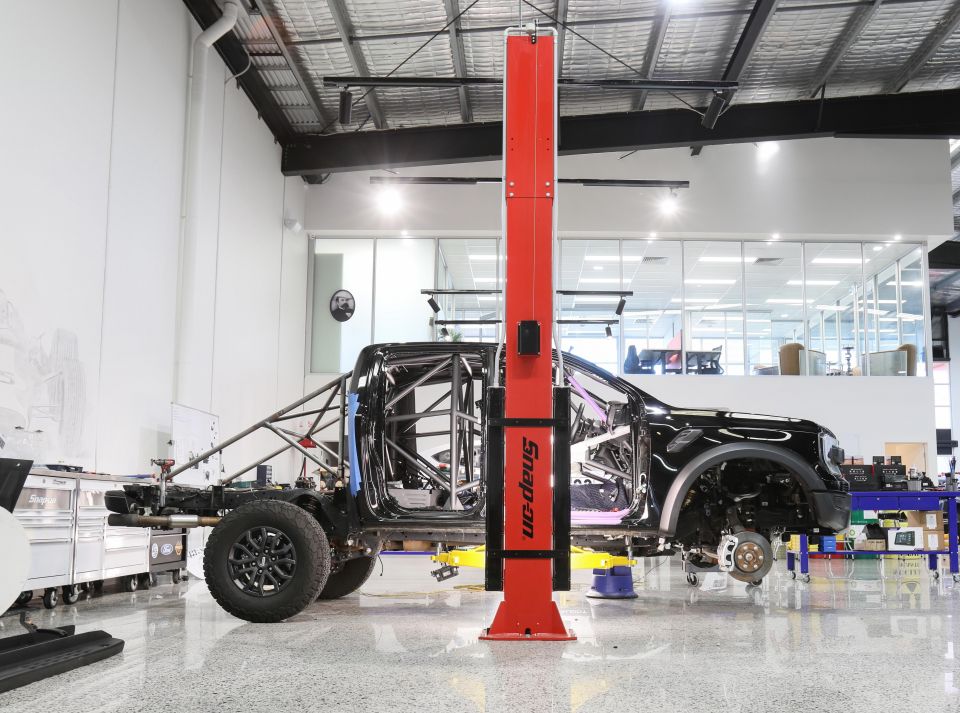

- Safety cage designed and manufactured to Motorsport Australia, FIA and SCORE standards

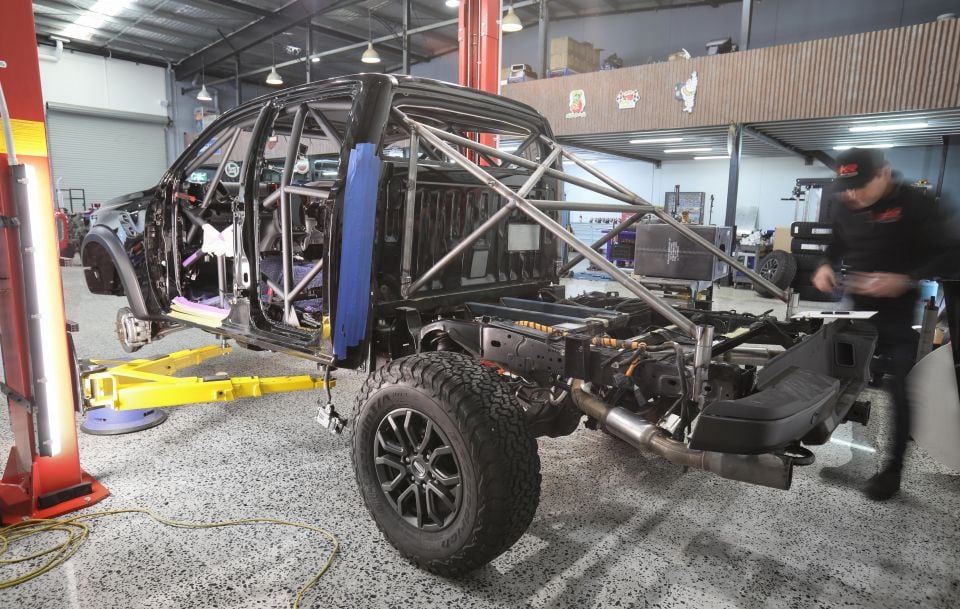

- Safety cage tied directly to the frame and body via custom mounting bobbins which replace the stock body mounts
- Driver and navigator HANS compatible race seats and harnesses
- On-board extinguisher system
- Driver and navigator window safety nets
