Overview

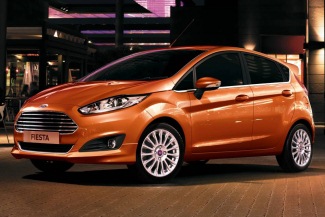

The 2014 Ford Fiesta SPORT is a front wheel drive 5 Door Hatchback that was released to the Australian market on 10th January 2013 classified as a WZ. The Ford Fiesta is regarded as a light built in Germany with prices from a dealer as a used car starting at $9,400.
The Ford Fiesta is a front wheel drive 5 door with 5 seats, powered by a 1.0L Turbo 3 Cylinder engine that has 92 kW of power (at 6000 rpm) and 170 Nm of torque (at 1400 rpm) via a 5 Speed Manual. Ford claims the Fiesta SPORT uses 4.9L/100km of unleaded petrol in the combined city and highway cycle while putting out 115g of CO2. It has a 42L fuel tank, meaning it should be able to travel 857km per full tank.
The Ford Fiesta measures 1489mm (58.6 inches) in height, 3982mm (156.8 inches) in length, 1722mm (67.8 inches) in width with a 2489mm (98.0 inches) wheelbase that brings about a total of 1127kg (2484.6 lbs) of unladen weight. The Fiesta SPORT comes standard with 195/50 R16 front tyres and 195/50 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2014 Ford Fiesta SPORT has a 120mm ground clearance with a 900kg braked and 560kg unbraked towing capacity. It has a final gear ratio of 3.820.
The Ford Fiesta has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Pass Side Centre B-Pillar. An example VIN number would be similar to WF0CXXGAKC%$00011.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Multi Point Fuel Injection |
|---|---|
| Size (cc) | 998 |
| Size (L) | - |
| Induction | Turbo 3 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 92kW |
| Power RPM | 6000 |
| Torque | 170Nm |
| Torque RPM | 1400 |
| Bore Stroke | 71.9x82 |
| Compression Ratio | 10.00 |
| Transmission | 5 Speed Manual |
|---|---|
| Final Gear Ratio | 3.820 |
| Suspension Front | anti roll bar, coil spring, gas damper, macpherson strut |
| Suspension Rear | coil spring, torsion bar, hydraulic double acting shock absorber, control blade |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FWD |
| Fuel Combined (L/100km) | 4.9 |
|---|---|
| Fuel Urban (L/100km) | 6.3 |
| Fuel Extra Urban (L/100km) | 4.1 |
| Tank Size (L) | 42 |
| Fuel Type | unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 115 |
| CO2 Urban | 147 |
| CO2 Extra Urban | 96 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 195/50 R16 |
| Tyre Rear | 195/50 R16 |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 1489 |
|---|---|
| Vehicle Length (mm) | 3982 |
| Vehicle Width (mm) | 1722 |
| Ground Clearance (mm) | 120 |
| Wheelbase (mm) | 2489 |
| Turning Circle (m) | 10.2 |
| Unladen Weight (kg) | 1127 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 900 |
| Towing Capacity Unbraked (kg) | 560 |
| Compliance Plate Location | Pass Side Centre B-Pillar |
|---|---|
| Country Of Origin | Germany |
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | WF0CXXGAKC%$00011 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 30/04/2018 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
