    Ford Ranger

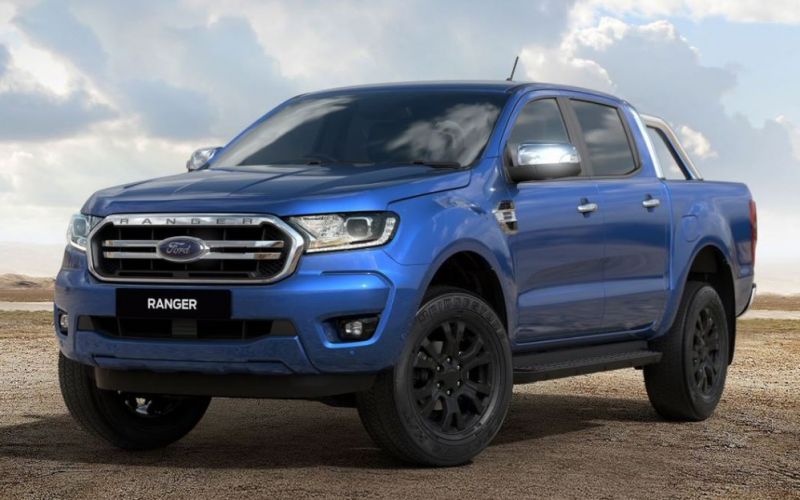

    2021 Ford Ranger SPORT 3.2 (4x4) Pricing and Spec

    From

    $42,100

    excl. on-roads

    Overview

    The 2021 Ford Ranger SPORT 3.2 (4x4) is a four-wheel drive double cab pickup that was released to the Australian market on 306th November 2020 classified as a PX MKIII MY21.25. The Ford Ranger is regarded as a double cab p/up built in Thailand with prices from a dealer as a used car starting at $42,100.

    The Ford Ranger is a four-wheel drive 4 door with 5 seats, powered by a 3.2L DIESEL TURBO 5 engine that has 147 kW of power (at 3000 rpm) and 470 Nm of torque (at 1500 rpm) via a Six-speed Manual. Ford claims the Ranger SPORT 3.2 (4x4) uses 8.3L/100km of Diesel in the combined city and highway cycle while putting out 218g of CO2. It has a 80L fuel tank, meaning it should be able to travel 964km per full tank.

    The Ford Ranger measures 1815mm (71.5 inches) in height, 5359mm (211.0 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 2191kg (4830.3 lbs) of unladen weight. The Ranger SPORT 3.2 (4x4) comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimitedkm warranty.

    The 2021 Ford Ranger SPORT 3.2 (4x4) has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.55.

    The Ford Ranger has received a 5 star rating from ANCAP. The VIN number can be found on the Centre Of Chassis Frame and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to M@*#MF$%0&W123456.

    Best For
    Work
    Family
    Long distance
    Awards
    '23
    Ute of the Year
    Best Ute Overall
    Warranty
    5Years
    or
    unlimited km
    ANCAP Safety Rating
    Fuel Efficiency
    80 L964 km
    DOUBLE CAB P/UP
    DIESEL
    3.2L
    4x4
    6 MT
    5
    4

    Pros

    • Punchy and refined V6 diesel
    • Surprisingly fuel efficient
    • Benchmark driving experience

    Cons

    • Lacking some wow factor
    • Expensive compared with more enticing Sport grade
    • No wireless phone charger

    Dimensions

    1815mm
    1850mm
    5359mm

    The dimensions shown above are for the base model.

    Specifications

    TypeDIESEL TURBO F/INJ
    Size (cc)3198
    Size (L)3.2L
    InductionDIESEL TURBO 5
    CamshaftDUAL OVERHEAD CAM
    Valves/Ports per Cylinder20
    Power147kW
    Power RPM3000
    Torque470Nm
    Torque RPM1500
    Bore Stroke-
    Compression Ratio15.7

    Transmission6 SP MANUAL
    Final Gear Ratio3.55
    Suspension Front-
    Suspension Rear-
    Steering MechanismRACK & PINION - POWER ASSISTED
    Drive4x4

    Fuel Combined (L/100km)8.3
    Fuel Urban (L/100km)9.7
    Fuel Extra Urban (L/100km)7.4
    Tank Size (L)80
    Fuel TypeDIESEL
    e10 Compatibleunknown
    CO2 Combined218
    CO2 Urban255
    CO2 Extra Urban196

    Brake FrontDISC - VENTILATED
    Brake RearDRUM
    Tyre Front265/65 R17
    Tyre Rear265/65 R17
    Front Rim Size7.5x17
    Rear Rim Size7.5x17

    Vehicle Height (mm)1815
    Vehicle Length (mm)5359
    Vehicle Width (mm)1850
    Ground Clearance (mm)232
    Wheelbase (mm)3220
    Turning Circle (m)12.7
    Unladen Weight (kg)2191
    Gross Combined Weight (kg)6000
    Gross Vehicle Weight (kg)3200
    Track Front-
    Track Rear-
    Towing Capacity Brake (kg)3500
    Towing Capacity Unbraked (kg)750

    Compliance Plate LocationLower Driver Side B-Pillar
    Country Of OriginTHAILAND
    Number of Doors4
    Seats5
    Service Interval KMs15
    Service Interval Months12
    VIN LocationCentre Of Chassis Frame
    VIN NumberM@*#MF$%0&W123456
    Warranty KMs-
    Warranty Months60
    Discontinued Date2021-06-30

    ANCAP Rating5
    Euro Air Pollution StandardEURO 5
