    Ford Ranger

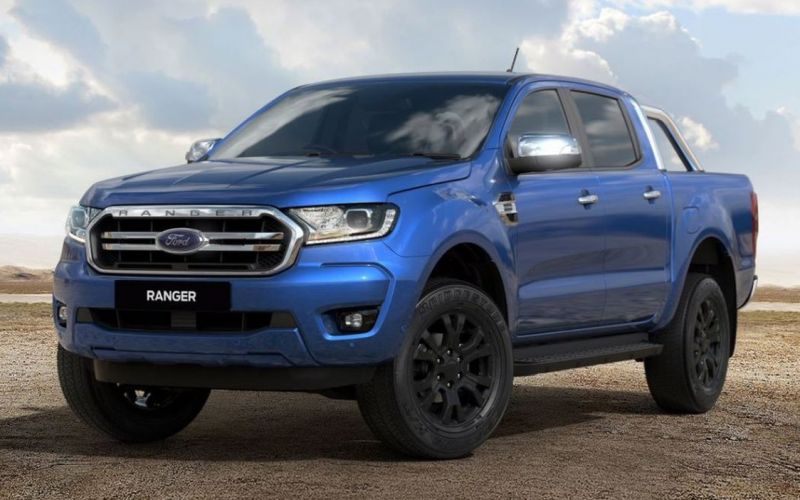

    2021 Ford Ranger XL 2.2 (4x4) Pricing and Spec

    From

    $34,300

    excl. on-roads

    Overview

    The 2021 Ford Ranger XL 2.2 (4x4) is a four-wheel drive double cab pickup that was released to the Australian market on 152nd June 2021 classified as a PX MKIII MY21.75. The Ford Ranger is regarded as a double cab p/up built in Thailand with prices from a dealer as a used car starting at $34,300.

    The Ford Ranger is a four-wheel drive 4 door with 5 seats, powered by a 2.2L DIESEL TURBO 4 engine that has 118 kW of power (at 3200 rpm) and 385 Nm of torque (at 1600 rpm) via a Six-speed Automatic. Ford claims the Ranger XL 2.2 (4x4) uses 8L/100km of Diesel in the combined city and highway cycle while putting out 209g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1000km per full tank.

    The Ford Ranger measures 1815mm (71.5 inches) in height, 5359mm (211.0 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 2064kg (4550.3 lbs) of unladen weight. The Ranger XL 2.2 (4x4) comes standard with 255/70 R16 front tyres and 255/70 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimitedkm warranty.

    The 2021 Ford Ranger XL 2.2 (4x4) has a 232mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.73.

    The Ford Ranger has received a 5 star rating from ANCAP. The VIN number can be found on the Centre Of Chassis Frame and the compliance plate is located on the Lower Driver Side B-Pillar. An example VIN number would be similar to M@*#MF$%0&W123456.

    Best For
    Work
    Family
    Long distance
    Awards
    '23
    Ute of the Year
    Best Ute Overall
    Warranty
    5Years
    or
    unlimited km
    ANCAP Safety Rating
    Fuel Efficiency
    80 L1000 km
    DOUBLE CAB P/UP
    DIESEL
    2.2L
    4x4
    6 AT
    5
    4

    Pros

    • Punchy and refined V6 diesel
    • Surprisingly fuel efficient
    • Benchmark driving experience

    Cons

    • Lacking some wow factor
    • Expensive compared with more enticing Sport grade
    • No wireless phone charger

    Dimensions

    1815mm
    1850mm
    5359mm

    The dimensions shown above are for the base model.

    Specifications

    TypeDIESEL TURBO F/INJ
    Size (cc)2198
    Size (L)2.2L
    InductionDIESEL TURBO 4
    CamshaftDUAL OVERHEAD CAM
    Valves/Ports per Cylinder16
    Power118kW
    Power RPM3200
    Torque385Nm
    Torque RPM1600
    Bore Stroke-
    Compression Ratio15.7

    Transmission6 SP AUTOMATIC
    Final Gear Ratio3.73
    Suspension Front-
    Suspension Rear-
    Steering MechanismRACK & PINION - POWER ASSISTED
    Drive4x4

    Fuel Combined (L/100km)8
    Fuel Urban (L/100km)9.6
    Fuel Extra Urban (L/100km)7
    Tank Size (L)80
    Fuel TypeDIESEL
    e10 Compatibleunknown
    CO2 Combined209
    CO2 Urban251
    CO2 Extra Urban185

    Brake FrontDISC - VENTILATED
    Brake RearDRUM
    Tyre Front255/70 R16
    Tyre Rear255/70 R16
    Front Rim Size7x16
    Rear Rim Size7x16

    Vehicle Height (mm)1815
    Vehicle Length (mm)5359
    Vehicle Width (mm)1850
    Ground Clearance (mm)232
    Wheelbase (mm)3220
    Turning Circle (m)12.7
    Unladen Weight (kg)2064
    Gross Combined Weight (kg)6000
    Gross Vehicle Weight (kg)3200
    Track Front-
    Track Rear-
    Towing Capacity Brake (kg)2500
    Towing Capacity Unbraked (kg)750

    Compliance Plate LocationLower Driver Side B-Pillar
    Country Of OriginTHAILAND
    Number of Doors4
    Seats5
    Service Interval KMs15
    Service Interval Months12
    VIN LocationCentre Of Chassis Frame
    VIN NumberM@*#MF$%0&W123456
    Warranty KMs-
    Warranty Months60
    Discontinued Date-

    ANCAP Rating5
    Euro Air Pollution StandardEURO 5
