Overview

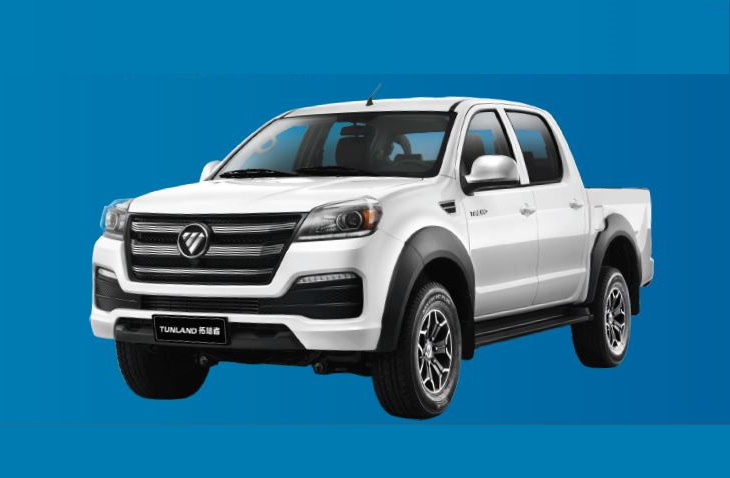

The 2021 Foton Tunland S (4x4) is a four-wheel drive Dual Cab Utility that was released to the Australian market on 6th January 2019 classified as a P201. The Foton Tunland is regarded as a pick up or cab chassis 4x4 built in China with prices from a dealer as a used car starting at $25,000.
The Foton Tunland is a four-wheel drive 4 door with 5 seats, powered by a 2.8L Diesel Turbo 4 Cylinder engine that has 130 kW of power (at 3600 rpm) and 365 Nm of torque (at 1600 rpm) via a 6 Speed Automatic. Foton claims the Tunland S (4x4) uses 8.9L/100km of diesel in the combined city and highway cycle while putting out 219g of CO2. It has a 76L fuel tank, meaning it should be able to travel 854km per full tank.
The Foton Tunland measures 1860mm (73.2 inches) in height, 5310mm (209.1 inches) in length, 1880mm (74.0 inches) in width with a 3105mm (122.2 inches) wheelbase that brings about a total of 2000kg (4409.2 lbs) of unladen weight. The Tunland S (4x4) comes standard with 265/65 R17 front tyres and 265/65 R17 rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2021 Foton Tunland S (4x4) has a 210mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
The Foton Tunland has received a 3 star rating from ANCAP. The VIN number can be found on the Right Rear Chassis Rail and the compliance plate is located on the Pass Side Front Floor. An example VIN number would be similar to LVAV2?$%@&JXXXXXX.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Common Rail Diesel Injection |
|---|---|
| Size (cc) | 2776 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | SINGLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 130kW |
| Power RPM | 3600 |
| Torque | 365Nm |
| Torque RPM | 1600 |
| Bore Stroke | 94x100 |
| Compression Ratio | 17.50 |
| Transmission | 6 Speed Automatic |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | coil spring, double wishbone |
| Suspension Rear | leaf spring, live beam axle |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 8.9 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 76 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 219 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 265/65 R17 |
| Tyre Rear | 265/65 R17 |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1860 |
|---|---|
| Vehicle Length (mm) | 5310 |
| Vehicle Width (mm) | 1880 |
| Ground Clearance (mm) | 210 |
| Wheelbase (mm) | 3105 |
| Turning Circle (m) | 0.0 |
| Unladen Weight (kg) | 2000 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2925 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Front Floor |
|---|---|
| Country Of Origin | China |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 20 |
| Service Interval Months | 12 |
| VIN Location | Right Rear Chassis Rail |
| VIN Number | LVAV2?$%@&JXXXXXX |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | - |
| ANCAP Rating | 3 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
