Overview

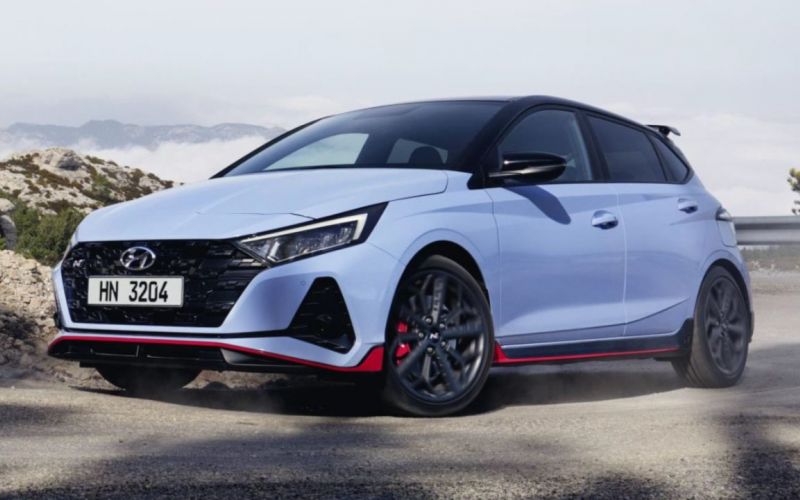

The 2021 Hyundai I20 N TTR is a front wheel drive 5 Door Hatchback that was released to the Australian market on 2nd January 2021 classified as a BC3.V1 MY22. The Hyundai I20 is regarded as a small up to 40k built in Korea with prices from a dealer as a used car starting at $32,800.
The Hyundai I20 is a front wheel drive 5 door with 5 seats, powered by a 1.6L Turbo 4 Cylinder engine that has 150 kW of power (at 5500 rpm) and 275 Nm of torque (at 1750 rpm) via a 6 Speed Manual. Hyundai claims the i20 N TTR uses 6.9L/100km of unleaded petrol in the combined city and highway cycle while putting out 157g of CO2. It has a 40L fuel tank, meaning it should be able to travel 580km per full tank.
The Hyundai I20 measures 1440mm (56.7 inches) in height, 4075mm (160.4 inches) in length, 1775mm (69.9 inches) in width with a 2580mm (101.6 inches) wheelbase that brings about a total of 1210kg (2667.6 lbs) of unladen weight. The i20 N TTR comes standard with 215/40 R18 XL 89Y front tyres and 215/40 R18 XL 89Y rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2021 Hyundai I20 N TTR has a 101mm ground clearance It has a final gear ratio of 3.941.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Gasoline Direct Injection |
|---|---|
| Size (cc) | 1598 |
| Size (L) | - |
| Induction | Turbo 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 150kW |
| Power RPM | 5500 |
| Torque | 275Nm |
| Torque RPM | 1750 |
| Bore Stroke | 75.6x89 |
| Compression Ratio | 10.00 |
| Transmission | 6 Speed Manual |
|---|---|
| Final Gear Ratio | 3.941 |
| Suspension Front | macpherson strut |
| Suspension Rear | coupled torsion beam axle |
| Steering Mechanism | COLUMN MOUNTED MOTOR DRIVEN PWR STEERING |
| Drive | FWD |
| Fuel Combined (L/100km) | 6.9 |
|---|---|
| Fuel Urban (L/100km) | 8.9 |
| Fuel Extra Urban (L/100km) | 5.7 |
| Tank Size (L) | 40 |
| Fuel Type | unleaded petrol |
| e10 Compatible | yes |
| CO2 Combined | 157 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/40 R18 XL 89Y |
| Tyre Rear | 215/40 R18 XL 89Y |
| Front Rim Size | 7.5Jx18 +53 |
| Rear Rim Size | 7.5Jx18 +53 |
| Vehicle Height (mm) | 1440 |
|---|---|
| Vehicle Length (mm) | 4075 |
| Vehicle Width (mm) | 1775 |
| Ground Clearance (mm) | 101 |
| Wheelbase (mm) | 2580 |
| Turning Circle (m) | 10.5 |
| Unladen Weight (kg) | 1210 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1665 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | - |
| Towing Capacity Unbraked (kg) | - |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | Korea |
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 10 |
| Service Interval Months | 12 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | - |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EURO 6 |
