Overview

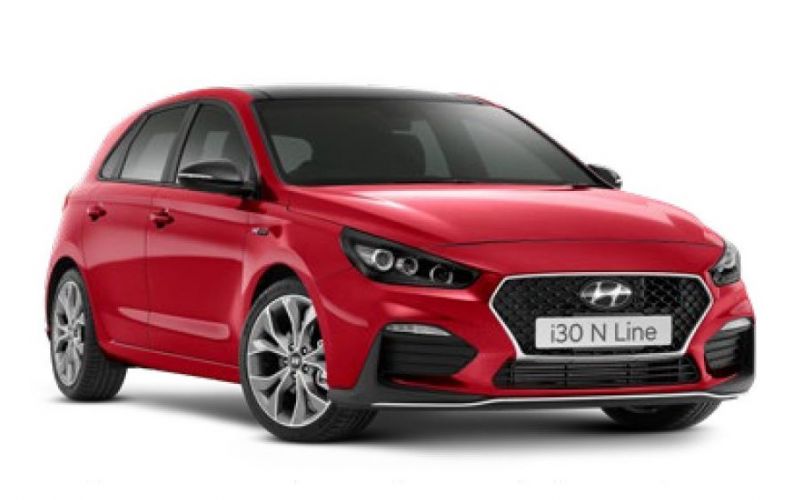

The 2022 Hyundai I30 N LINE is a front wheel drive 5 Door Hatchback that was released to the Australian market on 7th January 2021 classified as a PD.V4 MY22. The Hyundai I30 is regarded as a small up to 40k built in Czech Republic with prices from a dealer as a used car starting at $30,600.
The Hyundai I30 is a front wheel drive 5 door with 5 seats, powered by a 1.6L Turbo 4 Cylinder engine that has 150 kW of power (at 6000 rpm) and 265 Nm of torque (at 4500 rpm) via a 7 Speed Auto Dual Clutch. Hyundai claims the i30 N LINE uses 7.1L/100km of unleaded petrol in the combined city and highway cycle while putting out 167g of CO2. It has a 50L fuel tank, meaning it should be able to travel 704km per full tank.
The Hyundai I30 measures 1453mm (57.2 inches) in height, 4345mm (171.1 inches) in length, 1795mm (70.7 inches) in width with a 2650mm (104.3 inches) wheelbase that brings about a total of 1344kg (2963.0 lbs) of unladen weight. The i30 N LINE comes standard with 225/40 R18 92Y front tyres and 225/40 R18 92Y rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2022 Hyundai I30 N LINE has a 135mm ground clearance with a 1300kg braked and 600kg unbraked towing capacity. It has a final gear ratio of 3.611.
The Hyundai I30 has received a 5 star rating from ANCAP. The VIN number can be found on the Rear Lower Driver Side EngBay and the compliance plate is located on the Pass Side Lower A-Pillar. An example VIN number would be similar to KMHH151CLLU123456.
Pros
- Myriad variants to choose from
- Well-sorted ride and handling
- N versions are proper dynamos
Cons
- Too much tyre noise
- 1.6 turbo's shorter service intervals
- N Line hatches lose some driver-assist features
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Gasoline Direct Injection |
|---|---|
| Size (cc) | 1591 |
| Size (L) | - |
| Induction | Turbo 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 150kW |
| Power RPM | 6000 |
| Torque | 265Nm |
| Torque RPM | 4500 |
| Bore Stroke | 77x85.44 |
| Compression Ratio | 9.50 |
| Transmission | 7 Speed Auto Dual Clutch |
|---|---|
| Final Gear Ratio | 3.611 |
| Suspension Front | macpherson strut |
| Suspension Rear | multi-link system |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FWD |
| Fuel Combined (L/100km) | 7.1 |
|---|---|
| Fuel Urban (L/100km) | 9.4 |
| Fuel Extra Urban (L/100km) | 5.9 |
| Tank Size (L) | 50 |
| Fuel Type | unleaded petrol |
| e10 Compatible | yes |
| CO2 Combined | 167 |
| CO2 Urban | 220 |
| CO2 Extra Urban | 137 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/40 R18 92Y |
| Tyre Rear | 225/40 R18 92Y |
| Front Rim Size | 7.5Jx18 +53 |
| Rear Rim Size | 7.5Jx18 +53 |
| Vehicle Height (mm) | 1453 |
|---|---|
| Vehicle Length (mm) | 4345 |
| Vehicle Width (mm) | 1795 |
| Ground Clearance (mm) | 135 |
| Wheelbase (mm) | 2650 |
| Turning Circle (m) | 10.6 |
| Unladen Weight (kg) | 1344 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1880 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1300 |
| Towing Capacity Unbraked (kg) | 600 |
| Compliance Plate Location | Pass Side Lower A-Pillar |
|---|---|
| Country Of Origin | Czech Republic |
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Rear Lower Driver Side EngBay |
| VIN Number | KMHH151CLLU123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | - |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
