2021 Hyundai Staria Load Lr 2s 2.2d Liftback Pricing and Spec
From
$32,800
excl. on-roads
Overview

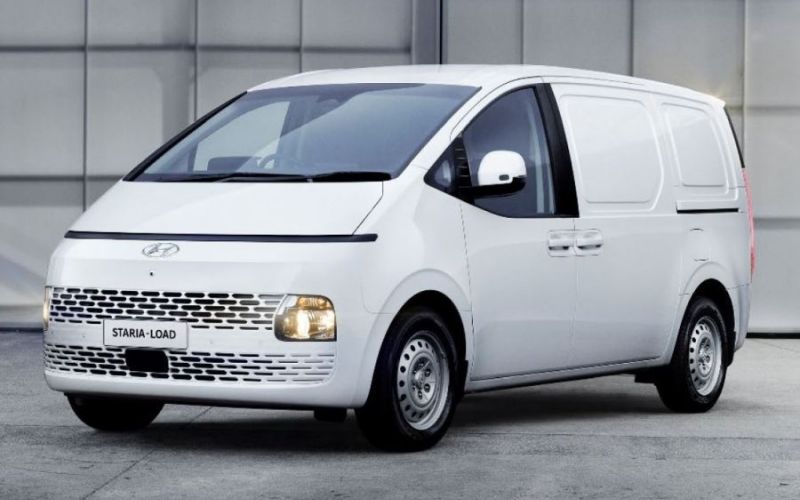

The 2021 Hyundai Staria LOAD LR 2S 2.2D LIFTBACK is a front wheel drive 5 Door Van that was released to the Australian market on 6th January 2021 classified as a US4.V1 MY22. The Hyundai Staria is regarded as a vans/cab chassis 2.5-3.5t built in Korea with prices from a dealer as a used car starting at $32,800.
The Hyundai Staria is a front wheel drive 5 door with 2 seats, powered by a 2.2L Diesel Turbo 4 Cylinder engine that has 130 kW of power (at 3800 rpm) and 430 Nm of torque (at 1500 rpm) via a 8 Speed Automatic Sequential. Hyundai claims the Staria LOAD LR 2S 2.2D LIFTBACK uses 7.0L/100km of diesel in the combined city and highway cycle while putting out 183g of CO2. It has a 75L fuel tank, meaning it should be able to travel 1071km per full tank.
The Hyundai Staria measures 2000mm (78.7 inches) in height, 5253mm (206.8 inches) in length, 1997mm (78.6 inches) in width with a 3273mm (128.9 inches) wheelbase that brings about a total of 1938kg (4272.6 lbs) of unladen weight. The Staria LOAD LR 2S 2.2D LIFTBACK comes standard with 215/65 R17 108H front tyres and 215/65 R17 108H rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2021 Hyundai Staria LOAD LR 2S 2.2D LIFTBACK has a 186mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.320.
The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Pass Side Lower A-Pillar. An example VIN number would be similar to KMFYAX11LMU000001.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Common Rail Diesel Injection |
|---|---|
| Size (cc) | 2199 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 130kW |
| Power RPM | 3800 |
| Torque | 430Nm |
| Torque RPM | 1500 |
| Bore Stroke | 85.4x96 |
| Compression Ratio | 16.00 |
| Transmission | 8 Speed Automatic Sequential |
|---|---|
| Final Gear Ratio | 3.320 |
| Suspension Front | macpherson strut |
| Suspension Rear | rigid axle, leaf spring - heavy duty |
| Steering Mechanism | COLUMN MOUNTED MOTOR DRIVEN PWR STEERING |
| Drive | FWD |
| Fuel Combined (L/100km) | 7.0 |
|---|---|
| Fuel Urban (L/100km) | 8.9 |
| Fuel Extra Urban (L/100km) | 5.9 |
| Tank Size (L) | 75 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 183 |
| CO2 Urban | 233 |
| CO2 Extra Urban | 155 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 215/65 R17 108H |
| Tyre Rear | 215/65 R17 108H |
| Front Rim Size | 6.5Jx17 |
| Rear Rim Size | 6.5Jx17 |
| Vehicle Height (mm) | 2000 |
|---|---|
| Vehicle Length (mm) | 5253 |
| Vehicle Width (mm) | 1997 |
| Ground Clearance (mm) | 186 |
| Wheelbase (mm) | 3273 |
| Turning Circle (m) | 11.9 |
| Unladen Weight (kg) | 1938 |
| Gross Combined Weight (kg) | 5520 |
| Gross Vehicle Weight (kg) | 3020 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Pass Side Lower A-Pillar |
|---|---|
| Country Of Origin | Korea |
| Number of Doors | 5 |
| Seats | 2 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | KMFYAX11LMU000001 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | 31/07/2021 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
