Overview

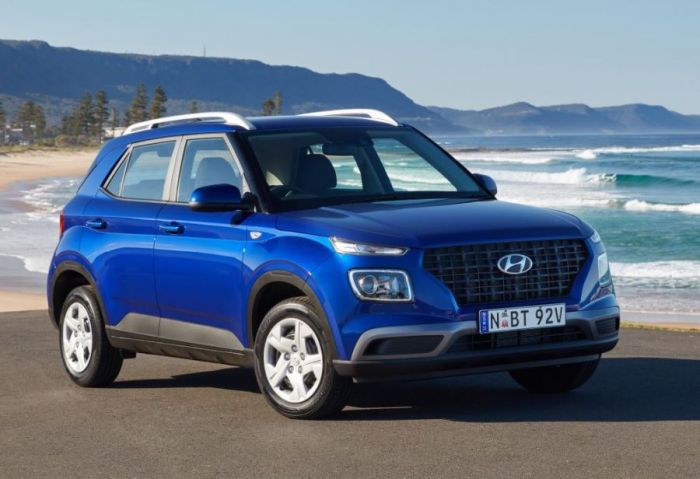

The 2022 Venue Hyundai ACTIVE is a front-wheel drive four-door wagon that was released to the Australian market on 213th August 2021 classified as a QX.V4 MY22. The Hyundai Venue is regarded as a 4d wagon built in Korea with prices from a dealer as a used car starting at $24,000.
The Hyundai Venue is a front-wheel drive 4 door with 5 seats, powered by a 1.6L INLINE 4 engine that has 90 kW of power (at 6300 rpm) and 151 Nm of torque (at 4850 rpm) via a Six-speed Automatic. Hyundai claims the Venue ACTIVE uses 7.2L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 165g of CO2. It has a 45L fuel tank, meaning it should be able to travel 625km per full tank.
The Hyundai Venue measures 1592mm (62.7 inches) in height, 4040mm (159.1 inches) in length, 1770mm (69.7 inches) in width with a 2520mm (99.2 inches) wheelbase that brings about a total of 1165kg (2568.4 lbs) of unladen weight. The Venue ACTIVE comes standard with 205/55 R17 91H front tyres and 205/55 R17 91H rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimitedkm warranty.
The 2022 Hyundai Venue ACTIVE has a 170mm ground clearance with a 800kg braked and 500kg unbraked towing capacity. It has a final gear ratio of 3.957.
The Hyundai Venue has received a 4 star rating from ANCAP. The VIN number can be found on the Rear Lower Driver Side EngBay and the compliance plate is located on the Pass Side Lower A-Pillar. An example VIN number would be similar to KMHRA812LKU000001.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI POINT F/INJ |
|---|---|
| Size (cc) | 1591 |
| Size (L) | 1.6L |
| Induction | INLINE 4 |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 90kW |
| Power RPM | 6300 |
| Torque | 151Nm |
| Torque RPM | 4850 |
| Bore Stroke | - |
| Compression Ratio | 10.5 |
| Transmission | 6 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | 3.957 |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FRONT WHEEL DRIVE |
| Fuel Combined (L/100km) | 7.2 |
|---|---|
| Fuel Urban (L/100km) | 9.5 |
| Fuel Extra Urban (L/100km) | 5.9 |
| Tank Size (L) | 45 |
| Fuel Type | UNLEADED PETROL |
| e10 Compatible | yes |
| CO2 Combined | 165 |
| CO2 Urban | 217 |
| CO2 Extra Urban | 136 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 205/55 R17 91H |
| Tyre Rear | 205/55 R17 91H |
| Front Rim Size | 6.5Jx17 +51 |
| Rear Rim Size | 6.5Jx17 +51 |
| Vehicle Height (mm) | 1592 |
|---|---|
| Vehicle Length (mm) | 4040 |
| Vehicle Width (mm) | 1770 |
| Ground Clearance (mm) | 170 |
| Wheelbase (mm) | 2520 |
| Turning Circle (m) | 10.2 |
| Unladen Weight (kg) | 1165 |
| Gross Combined Weight (kg) | 0 |
| Gross Vehicle Weight (kg) | 1700 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 800 |
| Towing Capacity Unbraked (kg) | 500 |
| Compliance Plate Location | Pass Side Lower A-Pillar |
|---|---|
| Country Of Origin | KOREA |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Rear Lower Driver Side EngBay |
| VIN Number | KMHRA812LKU000001 |
| Warranty KMs | - |
| Warranty Months | 60 |
| Discontinued Date | - |
| ANCAP Rating | 4 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
