Overview

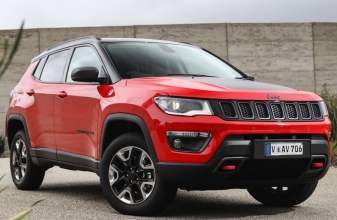

The 2018 Jeep Compass LONGITUDE (FWD) is a front wheel drive 4 Door Wagon that was released to the Australian market on 12th January 2017 classified as a M6 MY18. The Jeep Compass is regarded as a SUV small built in India with prices from a dealer as a used car starting at $17,800.
The Jeep Compass is a front wheel drive 4 door with 5 seats, powered by a 2.4L Inline 4 Cylinder engine that has 129 kW of power (at 6400 rpm) and 229 Nm of torque (at 3900 rpm) via a 6 Speed Automatic. Jeep claims the Compass LONGITUDE (FWD) uses 7.9L/100km of unleaded petrol in the combined city and highway cycle while putting out 190g of CO2. It has a 60L fuel tank, meaning it should be able to travel 759km per full tank.
The Jeep Compass measures 1629mm (64.1 inches) in height, 4394mm (173.0 inches) in length, 1819mm (71.6 inches) in width with a 2636mm (103.8 inches) wheelbase that brings about a total of 1446kg (3187.9 lbs) of unladen weight. The Compass LONGITUDE (FWD) comes standard with 225/60 R17 front tyres and 225/60 R17 rear tyres. It requires a service every 12 months or 12,000 km, whichever comes first. It has a 60 month, 100km warranty.
The 2018 Jeep Compass LONGITUDE (FWD) has a 186mm ground clearance It has a final gear ratio of 3.190.
The Jeep Compass has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side B-Pillar. An example VIN number would be similar to MCA#JPBB##F000001.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Multi Point Fuel Injection |
|---|---|
| Size (cc) | 2359 |
| Size (L) | - |
| Induction | Inline 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 129kW |
| Power RPM | 6400 |
| Torque | 229Nm |
| Torque RPM | 3900 |
| Bore Stroke | 88x97 |
| Compression Ratio | 10.00 |
| Transmission | 6 Speed Automatic |
|---|---|
| Final Gear Ratio | 3.190 |
| Suspension Front | coil spring, macpherson strut, shock absorber |
| Suspension Rear | coil spring, shock absorber, chapman strut |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FWD |
| Fuel Combined (L/100km) | 7.9 |
|---|---|
| Fuel Urban (L/100km) | 11.2 |
| Fuel Extra Urban (L/100km) | 6.0 |
| Tank Size (L) | 60 |
| Fuel Type | unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 190 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - SOLID |
| Tyre Front | 225/60 R17 |
| Tyre Rear | 225/60 R17 |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1629 |
|---|---|
| Vehicle Length (mm) | 4394 |
| Vehicle Width (mm) | 1819 |
| Ground Clearance (mm) | 186 |
| Wheelbase (mm) | 2636 |
| Turning Circle (m) | 11.1 |
| Unladen Weight (kg) | 1446 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1978 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | - |
| Towing Capacity Unbraked (kg) | - |
| Compliance Plate Location | Lower Pass Side B-Pillar |
|---|---|
| Country Of Origin | India |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 12 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | MCA#JPBB##F000001 |
| Warranty KMs | 100 |
| Warranty Months | 60 |
| Discontinued Date | 31/01/2020 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | - |
