Overview

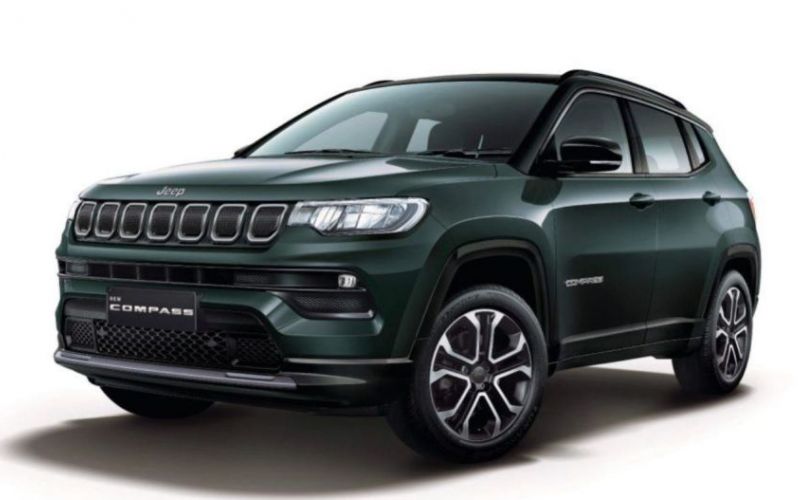

The 2022 Jeep Compass LIMITED (4x4) is a four-wheel drive four-door wagon that was released to the Australian market on 91st April 2021 classified as a M6 MY21. The Jeep Compass is regarded as a 4d wagon built in India with prices starting at $44,350 before on-road costs.
The Jeep Compass is a four-wheel drive 4 door with 5 seats, powered by a 2.4L INLINE 4 engine that has 129 kW of power (at 6400 rpm) and 229 Nm of torque (at 3900 rpm) via a Nine-speed Automatic. Jeep claims the Compass LIMITED (4x4) uses 7.9L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 230g of CO2. It has a 60L fuel tank, meaning it should be able to travel 759km per full tank.
The Jeep Compass measures 1644mm (64.7 inches) in height, 4394mm (173.0 inches) in length, 1819mm (71.6 inches) in width with a 2636mm (103.8 inches) wheelbase that brings about a total of 1503kg (3313.5 lbs) of unladen weight. The Compass LIMITED (4x4) comes standard with 225/55 R18 front tyres and 225/55 R18 rear tyres. It requires a service every 12 months or 12,000 km, whichever comes first. It has a 60 month, 100km warranty.
The 2022 Jeep Compass LIMITED (4x4) has a 212mm ground clearance with a 1000kg braked and 450kg unbraked towing capacity.
The Jeep Compass has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side B-Pillar. An example VIN number would be similar to MCA#JRCB##F000001.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI POINT F/INJ |
|---|---|
| Size (cc) | 2359 |
| Size (L) | 2.4L |
| Induction | INLINE 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 129kW |
| Power RPM | 6400 |
| Torque | 229Nm |
| Torque RPM | 3900 |
| Bore Stroke | - |
| Compression Ratio | 10 |
| Transmission | 9 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | 0 |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | ELECTRIC POWER STEERING |
| Drive | FOUR WHEEL DRIVE |
| Fuel Combined (L/100km) | 7.9 |
|---|---|
| Fuel Urban (L/100km) | 13.6 |
| Fuel Extra Urban (L/100km) | 7.4 |
| Tank Size (L) | 60 |
| Fuel Type | UNLEADED PETROL |
| e10 Compatible | unknown |
| CO2 Combined | 230 |
| CO2 Urban | 322 |
| CO2 Extra Urban | 177 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/55 R18 |
| Tyre Rear | 225/55 R18 |
| Front Rim Size | 7x18 |
| Rear Rim Size | 7x18 |
| Vehicle Height (mm) | 1644 |
|---|---|
| Vehicle Length (mm) | 4394 |
| Vehicle Width (mm) | 1819 |
| Ground Clearance (mm) | 212 |
| Wheelbase (mm) | 2636 |
| Turning Circle (m) | 11.1 |
| Unladen Weight (kg) | 1503 |
| Gross Combined Weight (kg) | 2987 |
| Gross Vehicle Weight (kg) | 2087 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1000 |
| Towing Capacity Unbraked (kg) | 450 |
| Compliance Plate Location | Lower Pass Side B-Pillar |
|---|---|
| Country Of Origin | INDIA |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 12 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | MCA#JRCB##F000001 |
| Warranty KMs | 100 |
| Warranty Months | 60 |
| Discontinued Date | - |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
