    Mazda CX-5

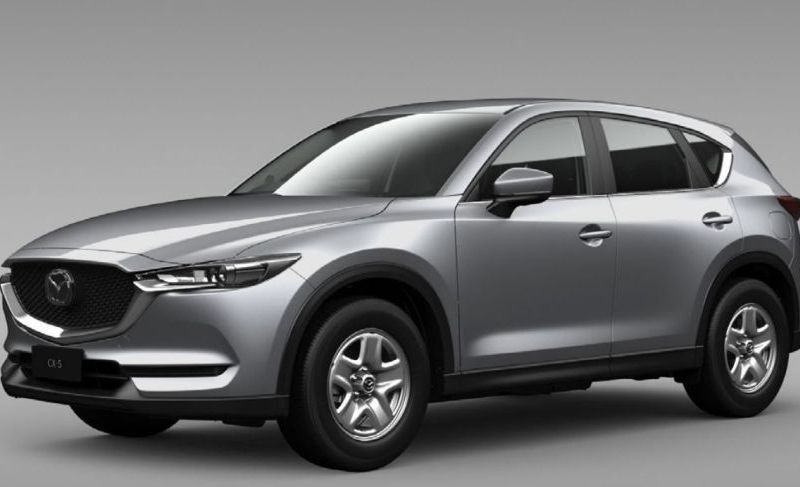

    2021 Mazda CX-5 MAXX (FWD) Pricing and Spec

    From

    $26,500

    excl. on-roads

    Overview

    The 2021 Mazda CX-5 MAXX (FWD) is a front-wheel drive four-door wagon that was released to the Australian market on 1st January 2021 classified as a CX5K. The Mazda CX-5 is regarded as a 4d wagon built in Japan with prices from a dealer as a used car starting at $26,500.

    The Mazda CX-5 is a front-wheel drive 4 door with 5 seats, powered by a 2.0L INLINE 4 engine that has 115 kW of power (at 6000 rpm) and 200 Nm of torque (at 4000 rpm) via a Six-speed Automatic. Mazda claims the CX-5 MAXX (FWD) uses 6.9L/100km of Unleaded Petrol in the combined city and highway cycle while putting out 161g of CO2. It has a 56L fuel tank, meaning it should be able to travel 812km per full tank.

    The Mazda CX-5 measures 1675mm (65.9 inches) in height, 4550mm (179.1 inches) in length, 1840mm (72.4 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1559kg (3437.0 lbs) of unladen weight. The CX-5 MAXX (FWD) comes standard with 225/65 R17 front tyres and 225/65 R17 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 60 month, unlimitedkm warranty.

    The 2021 Mazda CX-5 MAXX (FWD) has a 193mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 4.624.

    The Mazda CX-5 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to JM0KF2W7A00123456.

    Best For
    Family
    Long distance
    Warranty
    5Years
    or
    unlimited km
    ANCAP Safety Rating
    Fuel Efficiency
    56 L812 km
    4D WAGON
    petrol
    2.0L
    FRONT WHEEL DRIVE
    6 AT
    5
    4

    Dimensions

    1675mm
    1840mm
    4550mm

    The dimensions shown above are for the base model.

    Specifications

    TypeDIRECT FUEL INJ
    Size (cc)1997
    Size (L)2.0L
    InductionINLINE 4
    CamshaftVARIABLE DOUBLE OVERHEAD CAM
    Valves/Ports per Cylinder16
    Power115kW
    Power RPM6000
    Torque200Nm
    Torque RPM4000
    Bore Stroke-
    Compression Ratio13

    Transmission6 SP AUTOMATIC
    Final Gear Ratio4.624
    Suspension Front-
    Suspension Rear-
    Steering MechanismRACK & PINION - POWER ASSISTED
    DriveFRONT WHEEL DRIVE

    Fuel Combined (L/100km)6.9
    Fuel Urban (L/100km)8.4
    Fuel Extra Urban (L/100km)6.1
    Tank Size (L)56
    Fuel TypeUNLEADED PETROL
    e10 Compatibleunknown
    CO2 Combined161
    CO2 Urban194
    CO2 Extra Urban142

    Brake FrontDISC - VENTILATED
    Brake RearDISC
    Tyre Front225/65 R17
    Tyre Rear225/65 R17
    Front Rim Size7Jx17
    Rear Rim Size7Jx17

    Vehicle Height (mm)1675
    Vehicle Length (mm)4550
    Vehicle Width (mm)1840
    Ground Clearance (mm)193
    Wheelbase (mm)2700
    Turning Circle (m)11.8
    Unladen Weight (kg)1559
    Gross Combined Weight (kg)0
    Gross Vehicle Weight (kg)2025
    Track Front-
    Track Rear-
    Towing Capacity Brake (kg)1800
    Towing Capacity Unbraked (kg)750

    Compliance Plate LocationLower Pass Side Centre Pillar
    Country Of OriginJAPAN
    Number of Doors4
    Seats5
    Service Interval KMs10
    Service Interval Months12
    VIN LocationDriver Side Front Floor
    VIN NumberJM0KF2W7A00123456
    Warranty KMs-
    Warranty Months60
    Discontinued Date-

    ANCAP Rating5
    Euro Air Pollution StandardEURO 5
