Overview

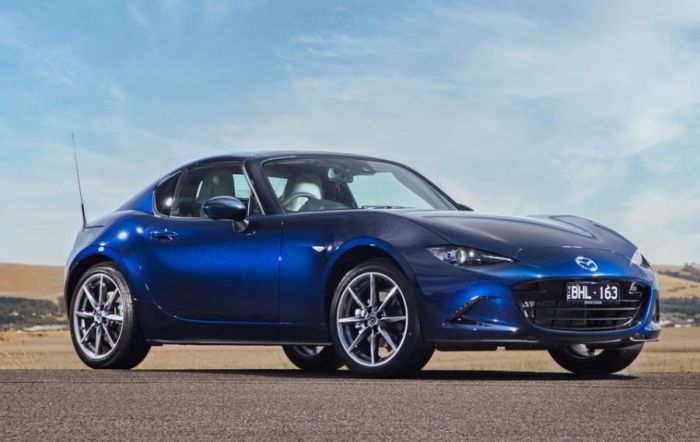

The 2024 Mazda Mx-5 G20 RF is a rear wheel drive 2 Door Convertible that was released to the Australian market on 12th January 2023 classified as a MX5Y. The Mazda Mx-5 is regarded as a sports up to 80k built in Japan with prices starting at $46,250 before on-road costs.
The Mazda Mx-5 is a rear wheel drive 2 door with 2 seats, powered by a 2.0L Inline 4 Cylinder engine that has 135 kW of power (at 7000 rpm) and 205 Nm of torque (at 4000 rpm) via a 6 Speed Manual. Mazda claims the MX-5 G20 RF uses 6.9L/100km of premium unleaded petrol in the combined city and highway cycle while putting out 162g of CO2. It has a 45L fuel tank, meaning it should be able to travel 652km per full tank.
The Mazda Mx-5 measures 1230mm (48.4 inches) in height, 3915mm (154.1 inches) in length, 1735mm (68.3 inches) in width with a 2310mm (90.9 inches) wheelbase that brings about a total of 1107kg (2440.5 lbs) of unladen weight. The MX-5 G20 RF comes standard with 205/45 R17 front tyres and 205/45 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2024 Mazda Mx-5 G20 RF has a 150mm ground clearance
The Mazda Mx-5 has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to JM0ND2E7600123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Gasoline Direct Injection |
|---|---|
| Size (cc) | 1998 |
| Size (L) | - |
| Induction | Inline 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 135kW |
| Power RPM | 7000 |
| Torque | 205Nm |
| Torque RPM | 4000 |
| Bore Stroke | 83.5x91.2 |
| Compression Ratio | 13.00 |
| Transmission | 6 Speed Manual |
|---|---|
| Final Gear Ratio | 0.000 |
| Suspension Front | double wishbone |
| Suspension Rear | multi-link system |
| Steering Mechanism | ELECTRIC POWER STEERING |
| Drive | RWD |
| Fuel Combined (L/100km) | 6.9 |
|---|---|
| Fuel Urban (L/100km) | 9.4 |
| Fuel Extra Urban (L/100km) | 5.5 |
| Tank Size (L) | 45 |
| Fuel Type | premium unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 162 |
| CO2 Urban | 218 |
| CO2 Extra Urban | 130 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 205/45 R17 |
| Tyre Rear | 205/45 R17 |
| Front Rim Size | 7Jx17 |
| Rear Rim Size | 7Jx17 |
| Vehicle Height (mm) | 1230 |
|---|---|
| Vehicle Length (mm) | 3915 |
| Vehicle Width (mm) | 1735 |
| Ground Clearance (mm) | 150 |
| Wheelbase (mm) | 2310 |
| Turning Circle (m) | 9.4 |
| Unladen Weight (kg) | 1107 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | - |
| Towing Capacity Unbraked (kg) | - |
| Compliance Plate Location | Lower Pass Side Centre Pillar |
|---|---|
| Country Of Origin | Japan |
| Number of Doors | 2 |
| Seats | 2 |
| Service Interval KMs | 15 |
| Service Interval Months | 12 |
| VIN Location | Driver Side Front Floor |
| VIN Number | JM0ND2E7600123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | - |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
