Overview

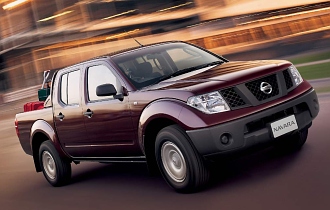

The 2013 Nissan Navara ST (4x2) is a rear wheel drive Dual Cab Pick Up that was released to the Australian market on 4th January 2012 classified as a D40 MY12. The Nissan Navara is regarded as a pick up or cab chassis 4x2 built in Spain with prices from a dealer as a used car starting at $17,800.
The Nissan Navara is a rear wheel drive 4 door with 5 seats, powered by a 2.5L Diesel Turbo 4 Cylinder engine that has 120 kW of power (at 4000 rpm) and 403 Nm of torque (at 2000 rpm) via a 5 Speed Automatic. Nissan claims the Navara ST (4x2) uses 8.3L/100km of diesel in the combined city and highway cycle while putting out 264g of CO2. It has a 80L fuel tank, meaning it should be able to travel 964km per full tank.
The Nissan Navara measures 1895mm (74.6 inches) in height, 5220mm (205.5 inches) in length, 1774mm (69.8 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1840kg (4056.5 lbs) of unladen weight. The Navara ST (4x2) comes standard with 255/65 R17 front tyres and 255/65 R17 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2013 Nissan Navara ST (4x2) has a 190mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.357.
The Nissan Navara has received a 4 star rating from ANCAP. The VIN number can be found on the Mid Driver Side Chassis and the compliance plate is located on the Lower Pass Side Centre Pilla. An example VIN number would be similar to VSKCLAD40A0123456.
Pros
- Comfortable ride
- Tough styling
- Enhanced safety credentials
Cons
- No telescopic wheel adjustment
- Not the most powerful engine in the segment
- Interior could use an update
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Diesel Turbo Fuel Injection |
|---|---|
| Size (cc) | 2488 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 120kW |
| Power RPM | 4000 |
| Torque | 403Nm |
| Torque RPM | 2000 |
| Bore Stroke | 89x100 |
| Compression Ratio | 16.50 |
| Transmission | 5 Speed Automatic |
|---|---|
| Final Gear Ratio | 3.357 |
| Suspension Front | coil spring, double wishbone, hydraulic double acting shock absorber |
| Suspension Rear | leaf spring, hydraulic double acting shock absorber, live axle |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | RWD |
| Fuel Combined (L/100km) | 8.3 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 264 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 255/65 R17 |
| Tyre Rear | 255/65 R17 |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1895 |
|---|---|
| Vehicle Length (mm) | 5220 |
| Vehicle Width (mm) | 1774 |
| Ground Clearance (mm) | 190 |
| Wheelbase (mm) | 3200 |
| Turning Circle (m) | 13.3 |
| Unladen Weight (kg) | 1840 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2805 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Pass Side Centre Pilla |
|---|---|
| Country Of Origin | Spain |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10 |
| Service Interval Months | 6 |
| VIN Location | Mid Driver Side Chassis |
| VIN Number | VSKCLAD40A0123456 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 30/04/2014 |
| ANCAP Rating | 4 |
|---|---|
| Euro Air Pollution Standard | - |
