Overview

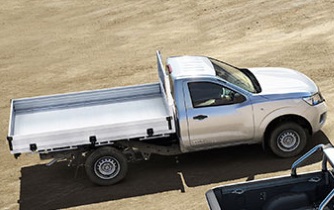

The 2016 Nissan Navara RX (4x2) is a rear-wheel drive C/chas that was released to the Australian market on 306th November 2016 classified as a D23 SERIES II. The Nissan Navara is regarded as a c/chas built in Thailand with prices from a dealer as a used car starting at $16,800.
The Nissan Navara is a rear-wheel drive 2 door with 2 seats, powered by a 2.3L DIESEL TURBO 4 engine that has 120 kW of power (at 3750 rpm) and 403 Nm of torque (at 1500 rpm) via a Six-speed Manual. Nissan claims the Navara RX (4x2) uses 6.6L/100km of Diesel in the combined city and highway cycle while putting out 169g of CO2. It has a nullL fuel tank.
The Nissan Navara measures 1745mm (68.7 inches) in height, 5120mm (201.6 inches) in length, 1790mm (70.5 inches) in width with a 3150mm (124.0 inches) wheelbase that brings about a total of 1548kg (3412.8 lbs) of unladen weight. The Navara RX (4x2) comes standard with 205 R16 front tyres and 205 R16 rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first. It has a 36 month, 100kmkm warranty.
The 2016 Nissan Navara RX (4x2) has a 215mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.538.
The Nissan Navara has received a 5 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | DIESEL TURBO F/INJ |
|---|---|
| Size (cc) | 2298 |
| Size (L) | 2.3L |
| Cylinders | DIESEL TURBO 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 120kW |
| Power RPM | 3750 |
| Torque | 403Nm |
| Torque RPM | 1500 |
| Bore Stroke | - |
| Compression Ratio | 15.4 |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | 3.538 |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | REAR WHEEL DRIVE |
| Fuel Combined (L/100km) | 6.6 |
|---|---|
| Fuel Urban (L/100km) | 7.3 |
| Fuel Extra Urban (L/100km) | 5.9 |
| Tank Size (L) | - |
| Fuel Type | DIESEL |
| e10 Compatible | unknown |
| CO2 Combined | 169 |
| CO2 Urban | 194 |
| CO2 Extra Urban | 155 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 205 R16 |
| Tyre Rear | 205 R16 |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 1745 |
|---|---|
| Vehicle Length (mm) | 5120 |
| Vehicle Width (mm) | 1790 |
| Ground Clearance (mm) | 215 |
| Wheelbase (mm) | 3150 |
| Turning Circle (m) | 11.8 |
| Unladen Weight (kg) | 1548 |
| Gross Combined Weight (kg) | 0 |
| Gross Vehicle Weight (kg) | 2910 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 3500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Pass Side A-Pillar |
|---|---|
| Country Of Origin | THAILAND |
| Number of Doors | 2 |
| Seats | 2 |
| Service Interval KMs | 20 |
| Service Interval Months | 12 |
| VIN Location | - |
| VIN Number | MNTDA2D23A0123456 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2018-02-28 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
