Overview

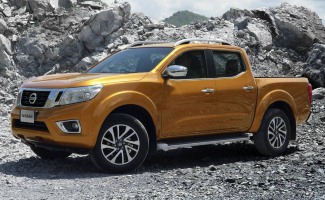

The 2016 Nissan Navara RX (4x2) is a rear-wheel drive double cab utility that was released to the Australian market on 121st May 2015 classified as a NP300 D23. The Nissan Navara is regarded as a double cab utility built in Thailand with prices from a dealer as a used car starting at $23,000.
The Nissan Navara is a rear-wheel drive 4 door with 5 seats, powered by a 2.3L DIESEL TURBO 4 engine that has 120 kW of power (at 3750 rpm) and 403 Nm of torque (at 1500 rpm) via a Six-speed Manual. Nissan claims the Navara RX (4x2) uses 6.4L/100km of Diesel in the combined city and highway cycle while putting out 169g of CO2. It has a 80L fuel tank, meaning it should be able to travel 1250km per full tank.
The Nissan Navara measures 1785mm (70.3 inches) in height, 5255mm (206.9 inches) in length, 1790mm (70.5 inches) in width with a 3150mm (124.0 inches) wheelbase that brings about a total of 1744kg (3844.9 lbs) of unladen weight. The Navara RX (4x2) comes standard with 205 R16 front tyres and 205 R16 rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2016 Nissan Navara RX (4x2) has a 214mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.538.
The Nissan Navara has received a 5 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | DIESEL TURBO F/INJ |
|---|---|
| Size (cc) | 2298 |
| Size (L) | 2.3L |
| Induction | DIESEL TURBO 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 120kW |
| Power RPM | 3750 |
| Torque | 403Nm |
| Torque RPM | 1500 |
| Bore Stroke | - |
| Compression Ratio | 15.4 |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | 3.538 |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | REAR WHEEL DRIVE |
| Fuel Combined (L/100km) | 6.4 |
|---|---|
| Fuel Urban (L/100km) | 0 |
| Fuel Extra Urban (L/100km) | 0 |
| Tank Size (L) | 80 |
| Fuel Type | DIESEL |
| e10 Compatible | unknown |
| CO2 Combined | 169 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 205 R16 |
| Tyre Rear | 205 R16 |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 1785 |
|---|---|
| Vehicle Length (mm) | 5255 |
| Vehicle Width (mm) | 1790 |
| Ground Clearance (mm) | 214 |
| Wheelbase (mm) | 3150 |
| Turning Circle (m) | 11.8 |
| Unladen Weight (kg) | 1744 |
| Gross Combined Weight (kg) | 5910 |
| Gross Vehicle Weight (kg) | 2910 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 3500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Pass Side A-Pillar |
|---|---|
| Country Of Origin | THAILAND |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 20 |
| Service Interval Months | 12 |
| VIN Location | - |
| VIN Number | MNTCB2D23A0000111 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2016-10-31 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | - |
