Overview

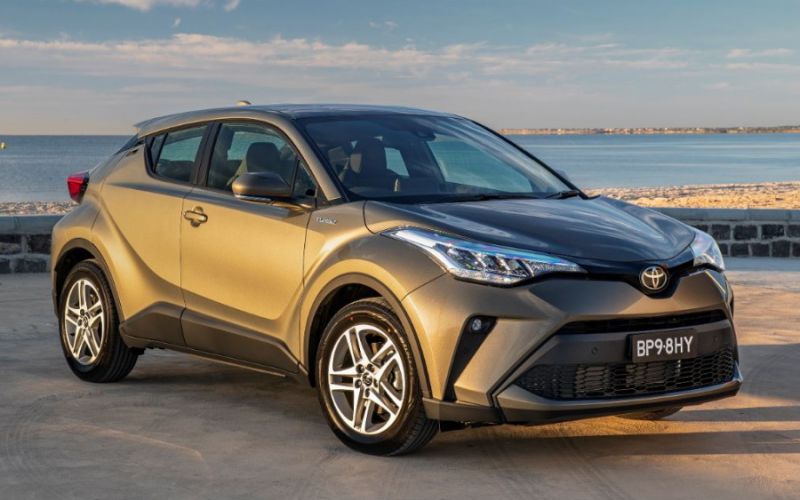

The 2021 Toyota C-hr KOBA (2WD) is a front wheel drive 4 Door Wagon that was released to the Australian market on 8th January 2020 classified as a NGX10R. The Toyota C-hr is regarded as a SUV small built in Japan with prices from a dealer as a used car starting at $31,500.
The Toyota C-hr is a front wheel drive 4 door with 5 seats, powered by a 1.2L Turbo 4 Cylinder engine that has 85 kW of power (at 5200 rpm) and 185 Nm of torque (at 1500 rpm) via a Continuous Variable. Toyota claims the C-HR KOBA (2WD) uses 6.4L/100km of premium unleaded petrol in the combined city and highway cycle while putting out 144g of CO2. It has a 60L fuel tank, meaning it should be able to travel 938km per full tank.
The Toyota C-hr measures 1565mm (61.6 inches) in height, 4390mm (172.8 inches) in length, 1795mm (70.7 inches) in width with a 2640mm (103.9 inches) wheelbase that brings about a total of 1385kg (3053.4 lbs) of unladen weight. The C-HR KOBA (2WD) comes standard with 225/50 R18 95V front tyres and 225/50 R18 95V rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2021 Toyota C-hr KOBA (2WD) has a 137mm ground clearance with a 600kg braked and 600kg unbraked towing capacity. It has a final gear ratio of 5.698.
The Toyota C-hr has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Upper Pass Side C-Pillar. An example VIN number would be similar to JTNKY3BX501123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Direct Fuel Injection |
|---|---|
| Size (cc) | 1197 |
| Size (L) | - |
| Induction | Turbo 4 Cylinder |
| Camshaft | VARIABLE DOUBLE OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 85kW |
| Power RPM | 5200 |
| Torque | 185Nm |
| Torque RPM | 1500 |
| Bore Stroke | 71.5x74.5 |
| Compression Ratio | 10.00 |
| Transmission | Continuous Variable |
|---|---|
| Final Gear Ratio | 5.698 |
| Suspension Front | macpherson strut, torsion bar |
| Suspension Rear | double wishbone, torsion bar, trailing arm |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | FWD |
| Fuel Combined (L/100km) | 6.4 |
|---|---|
| Fuel Urban (L/100km) | 7.9 |
| Fuel Extra Urban (L/100km) | 5.5 |
| Tank Size (L) | 60 |
| Fuel Type | premium unleaded petrol |
| e10 Compatible | - |
| CO2 Combined | 144 |
| CO2 Urban | 127 |
| CO2 Extra Urban | 124 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/50 R18 95V |
| Tyre Rear | 225/50 R18 95V |
| Front Rim Size | 7Jx18 |
| Rear Rim Size | 7Jx18 |
| Vehicle Height (mm) | 1565 |
|---|---|
| Vehicle Length (mm) | 4390 |
| Vehicle Width (mm) | 1795 |
| Ground Clearance (mm) | 137 |
| Wheelbase (mm) | 2640 |
| Turning Circle (m) | 10.4 |
| Unladen Weight (kg) | 1385 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1865 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 600 |
| Towing Capacity Unbraked (kg) | 600 |
| Compliance Plate Location | Upper Pass Side C-Pillar |
|---|---|
| Country Of Origin | Japan |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10 |
| Service Interval Months | 6 |
| VIN Location | Driver Side Front Floor |
| VIN Number | JTNKY3BX501123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | - |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
