Overview

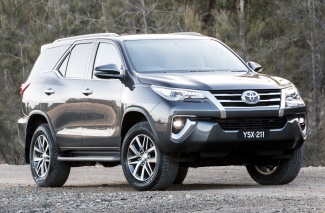

The 2018 Toyota Fortuner CRUSADE is an all wheel drive 4 Door Wagon that was released to the Australian market on 10th January 2017 classified as a GUN156R MY18. The Toyota Fortuner is regarded as a SUV large built in Thailand with prices from a dealer as a used car starting at $44,100.
The Toyota Fortuner is an all wheel drive 4 door with 7 seats, powered by a 2.8L Diesel Turbo 4 Cylinder engine that has 130 kW of power (at 3400 rpm) and 450 Nm of torque (at 1600 rpm) via a 6 Speed Automatic. Toyota claims the Fortuner CRUSADE uses 8.6L/100km of diesel in the combined city and highway cycle while putting out 228g of CO2. It has a 80L fuel tank, meaning it should be able to travel 930km per full tank.
The Toyota Fortuner measures 1835mm (72.2 inches) in height, 4795mm (188.8 inches) in length, 1855mm (73.0 inches) in width with a 2750mm (108.3 inches) wheelbase that brings about a total of 2135kg (4706.9 lbs) of unladen weight. The Fortuner CRUSADE comes standard with 265/60 R18 front tyres and 265/60 R18 rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 36 month, 100km warranty.
The 2018 Toyota Fortuner CRUSADE has a 225mm ground clearance with a 2800kg braked and 750kg unbraked towing capacity. It has a final gear ratio of 3.909.
The Toyota Fortuner has received a 5 star rating from ANCAP. The VIN number can be found on the Right Rear Chassis Rail and the compliance plate is located on the Lower Pass Side Centre Pillar. An example VIN number would be similar to MR0DA3FS800000111.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Diesel Turbo Fuel Injection |
|---|---|
| Size (cc) | 2753 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 130kW |
| Power RPM | 3400 |
| Torque | 450Nm |
| Torque RPM | 1600 |
| Bore Stroke | 92x103.6 |
| Compression Ratio | 15.60 |
| Transmission | 6 Speed Automatic |
|---|---|
| Final Gear Ratio | 3.909 |
| Suspension Front | anti roll bar, coil spring, double wishbone, gas damper |
| Suspension Rear | anti roll bar, multi-link system, coil spring, hydraulic double acting shock absorber |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | AWD |
| Fuel Combined (L/100km) | 8.6 |
|---|---|
| Fuel Urban (L/100km) | 11.0 |
| Fuel Extra Urban (L/100km) | 7.3 |
| Tank Size (L) | 80 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 228 |
| CO2 Urban | 290 |
| CO2 Extra Urban | 192 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 265/60 R18 |
| Tyre Rear | 265/60 R18 |
| Front Rim Size | 7x18 |
| Rear Rim Size | 7x18 |
| Vehicle Height (mm) | 1835 |
|---|---|
| Vehicle Length (mm) | 4795 |
| Vehicle Width (mm) | 1855 |
| Ground Clearance (mm) | 225 |
| Wheelbase (mm) | 2750 |
| Turning Circle (m) | 11.6 |
| Unladen Weight (kg) | 2135 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2750 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2800 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | Lower Pass Side Centre Pillar |
|---|---|
| Country Of Origin | Thailand |
| Number of Doors | 4 |
| Seats | 7 |
| Service Interval KMs | 10 |
| Service Interval Months | 6 |
| VIN Location | Right Rear Chassis Rail |
| VIN Number | MR0DA3FS800000111 |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 31/08/2018 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | - |
