Overview

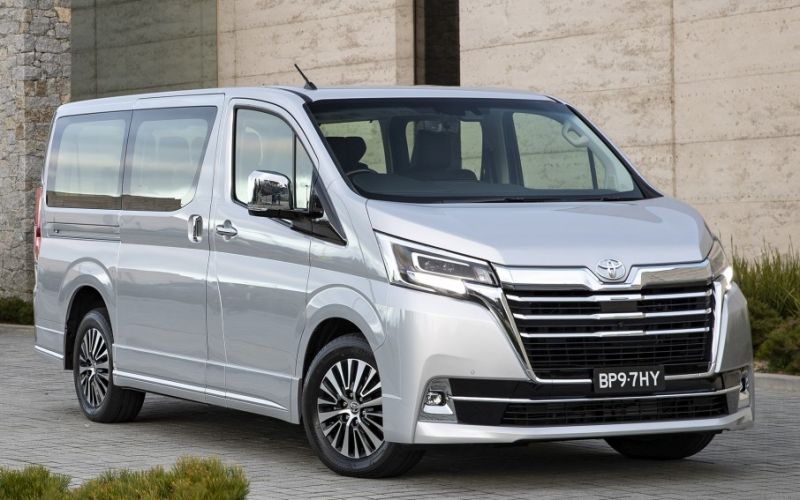

The 2021 Toyota Granvia VX (8 SEATS) is a rear wheel drive 4 Door Wagon that was released to the Australian market on 6th January 2020 classified as a GDH303R. The Toyota Granvia is regarded as a people movers built in Japan with prices from a dealer as a used car starting at $61,500.
The Toyota Granvia is a rear wheel drive 4 door with 8 seats, powered by a 2.8L Diesel Turbo 4 Cylinder engine that has 130 kW of power (at 3400 rpm) and 450 Nm of torque (at 1600 rpm) via a 6 Speed Auto Sequential. Toyota claims the Granvia VX (8 SEATS) uses 8.0L/100km of diesel in the combined city and highway cycle while putting out 211g of CO2. It has a 70L fuel tank, meaning it should be able to travel 875km per full tank.
The Toyota Granvia measures 1990mm (78.3 inches) in height, 5300mm (208.7 inches) in length, 1970mm (77.6 inches) in width with a 3210mm (126.4 inches) wheelbase that brings about a total of 2660kg (5864.3 lbs) of unladen weight. The Granvia VX (8 SEATS) comes standard with 235/60 R17 109T LT front tyres and 235/60 R17 109T LT rear tyres. It requires a service every 6 months or 10,000 km, whichever comes first. It has a 60 month, unlimited kilometre warranty.
The 2021 Toyota Granvia VX (8 SEATS) has a 179mm ground clearance with a 1500kg braked and 400kg unbraked towing capacity. It has a final gear ratio of 3.727.
The Toyota Granvia has received a 5 star rating from ANCAP. The VIN number can be found on the Driver Side Front Floor and the compliance plate is located on the Pass Side Lower B-Pillar. An example VIN number would be similar to JTFUA3AP201123456.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | Turbo Common Rail Diesel Injection |
|---|---|
| Size (cc) | 2755 |
| Size (L) | - |
| Induction | Diesel Turbo 4 Cylinder |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 130kW |
| Power RPM | 3400 |
| Torque | 450Nm |
| Torque RPM | 1600 |
| Bore Stroke | 92x103.6 |
| Compression Ratio | 15.60 |
| Transmission | 6 Speed Auto Sequential |
|---|---|
| Final Gear Ratio | 3.727 |
| Suspension Front | macpherson strut, lower arm, stabiliser bar, stabilizer link |
| Suspension Rear | coil spring, stabiliser bar, lower control arm, upper control arms, lateral rod |
| Steering Mechanism | RACK & PINION - POWER ASSISTED |
| Drive | RWD |
| Fuel Combined (L/100km) | 8.0 |
|---|---|
| Fuel Urban (L/100km) | 8.9 |
| Fuel Extra Urban (L/100km) | 7.5 |
| Tank Size (L) | 70 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 211 |
| CO2 Urban | 234 |
| CO2 Extra Urban | 198 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 235/60 R17 109T LT |
| Tyre Rear | 235/60 R17 109T LT |
| Front Rim Size | 7Jx17 |
| Rear Rim Size | 7Jx17 |
| Vehicle Height (mm) | 1990 |
|---|---|
| Vehicle Length (mm) | 5300 |
| Vehicle Width (mm) | 1970 |
| Ground Clearance (mm) | 179 |
| Wheelbase (mm) | 3210 |
| Turning Circle (m) | 11.0 |
| Unladen Weight (kg) | 2660 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3500 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 400 |
| Compliance Plate Location | Pass Side Lower B-Pillar |
|---|---|
| Country Of Origin | Japan |
| Number of Doors | 4 |
| Seats | 8 |
| Service Interval KMs | 10 |
| Service Interval Months | 6 |
| VIN Location | Driver Side Front Floor |
| VIN Number | JTFUA3AP201123456 |
| Warranty KMs | 999 |
| Warranty Months | 60 |
| Discontinued Date | 31/07/2021 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EURO 5 |
