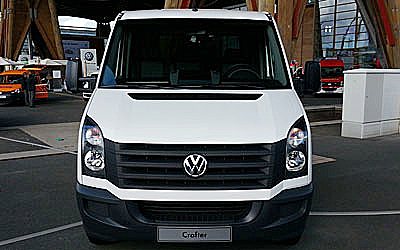

    Volkswagen Crafter

    2012 Volkswagen Crafter Base Pricing and Spec

    From

    $52,900

    excl. on-roads

    Overview

    The 2012 Volkswagen Crafter Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 4th December 2011. The Volkswagen Crafter is regarded as a Van over 3.5t built in Germany and when it was new had prices starting at $52,900.

    This Volkswagen Crafter is powered by a 2.0L 4-cylinder engine that has 105 kW of power (at 3500 rpm) and 340 Nm of torque (at 1575 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank

    The Volkswagen Crafter measures 2705mm (106.5 inches) in height, 6940mm (273.2 inches) in length, 1993mm (78.5 inches) in width with a 4325mm (170.3 inches) wheelbase that brings about a total of 2333kg (5143.4 lbs) of unladen weight. The Crafter Base comes standard with 235/60 R17 115 front tyres and 235/60 R17 115 rear tyres. It has a 36 month, unlimited km warranty.

    The 2012 Volkswagen Crafter Base has a 176mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

    Best For
    Work
    Transporting
    Warranty
    3Years
    or
    unlimited km
    5D panel van
    Diesel
    2.0L
    rear
    6 MT
    2
    5

    Dimensions

    2705mm
    1993mm
    6940mm

    The dimensions shown above are for the base model.

    Specifications

    TypeTURBO DIESEL COMMON RAIL
    Size (cc)1968
    Size (L)2.0L
    Cylinders4
    CamshaftDual Overhead Cam
    Valves/Ports per Cylinder16
    Power105kW
    Power RPM3500
    Torque340Nm
    Torque RPM1575
    Bore Stroke-
    Compression Ratio-

    Transmission6 SP MANUAL
    Final Gear Ratio-
    Suspension FrontWishbone
    Suspension RearBeam
    Steering Mechanism-
    Driverear

    Fuel Combined (L/100km)-
    Fuel Urban (L/100km)-
    Fuel Extra Urban (L/100km)-
    Tank Size (L)100
    Fuel TypeDiesel
    e10 Compatible-
    CO2 Combined-
    CO2 Urban-
    CO2 Extra Urban-

    Brake FrontDISC - VENTILATED
    Brake RearDISC
    Tyre Front235/60 R17 115
    Tyre Rear235/60 R17 115
    Front Rim Size6.5x17
    Rear Rim Size6.5x17

    Vehicle Height (mm)2705
    Vehicle Length (mm)6940
    Vehicle Width (mm)1993
    Ground Clearance (mm)176
    Wheelbase (mm)4325
    Turning Circle (m)-
    Unladen Weight (kg)2333
    Gross Combined Weight (kg)5500
    Gross Vehicle Weight (kg)3550
    Track Front (mm)1710
    Track Rear (mm)1716
    Towing Capacity Brake (kg)2000
    Towing Capacity Unbraked (kg)750

    Country Of OriginGermany
    Number of Doors5
    Seats2
    Service Interval KMs30000
    Service Interval Months-
    VIN Location-
    VIN Number-
    Warranty KMs-
    Warranty Months36
    Discontinued Date2012-08-28

    ANCAP Rating-
    Euro Air Pollution StandardEU5
