Overview

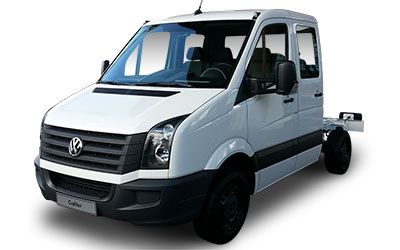

The 2015 Volkswagen Crafter Base is a rear-wheel drive, Double Cab Chassis that was released to the Australian market on 3rd August 2013. The Volkswagen Crafter is regarded as a Van over 3.5t built in Germany and when it was new had prices starting at $56,450.
This Volkswagen Crafter is powered by a 2.0L 4-cylinder engine that has 120 kW of power (at 3600 rpm) and 400 Nm of torque (at 1800 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank
The Volkswagen Crafter measures 2385mm (93.9 inches) in height, 6842mm (269.4 inches) in length, 1990mm (78.3 inches) in width with a 4325mm (170.3 inches) wheelbase that brings about a total of 2311kg (5094.9 lbs) of unladen weight. The Crafter Base comes standard with 195/75 R16 104 front tyres and 195/75 R16 104 rear tyres. It has a 36 month, unlimited km warranty.
The 2015 Volkswagen Crafter Base has a 176mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 1968 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 120kW |
| Power RPM | 3600 |
| Torque | 400Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 100 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 195/75 R16 104 |
| Tyre Rear | 195/75 R16 104 |
| Front Rim Size | 5.5x16 |
| Rear Rim Size | 5.5x16 |
| Vehicle Height (mm) | 2385 |
|---|---|
| Vehicle Length (mm) | 6842 |
| Vehicle Width (mm) | 1990 |
| Ground Clearance (mm) | 176 |
| Wheelbase (mm) | 4325 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 2311 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 4490 |
| Track Front (mm) | 1708 |
| Track Rear (mm) | 1521 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Germany |
|---|---|
| Number of Doors | 4 |
| Seats | 6 |
| Service Interval KMs | 30000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 36 |
| Discontinued Date | 2015-02-12 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU5 |
