Overview

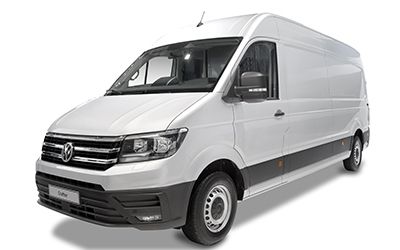

The 2019 Volkswagen Crafter Base is a four-wheel drive, 5-door Panel Van that was released to the Australian market on 2nd April 2019 classified as a SY1. The Volkswagen Crafter is regarded as a Van over 3.5t built in Poland and when it was new had prices starting at $64,090.
This Volkswagen Crafter is powered by a 2.0L 4-cylinder engine that has 130 kW of power (at 3600 rpm) and 410 Nm of torque (at 2000 rpm) via an Eight-speed Automatic transmission. It has a 75L fuel tank
The Volkswagen Crafter measures 2590mm (102.0 inches) in height, 6836mm (269.1 inches) in length, 2040mm (80.3 inches) in width with a 4490mm (176.8 inches) wheelbase that brings about a total of 2435kg (5368.2 lbs) of unladen weight. The Crafter Base comes standard with 235/65 R16 115R front tyres and 235/65 R16 115R rear tyres. It has a 36 month, unlimited km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 1968 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 130kW |
| Power RPM | 3600 |
| Torque | 410Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 8 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 75 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 235/65 R16 115R |
| Tyre Rear | 235/65 R16 115R |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 2590 |
|---|---|
| Vehicle Length (mm) | 6836 |
| Vehicle Width (mm) | 2040 |
| Ground Clearance (mm) | 195 |
| Wheelbase (mm) | 4490 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 2435 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3550 |
| Track Front (mm) | 1788 |
| Track Rear (mm) | 1788 |
| Towing Capacity Brake (kg) | - |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Poland |
|---|---|
| Number of Doors | 5 |
| Seats | 3 |
| Service Interval KMs | 20000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 36 |
| Discontinued Date | 2019-09-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU6 |
