    Volkswagen Crafter

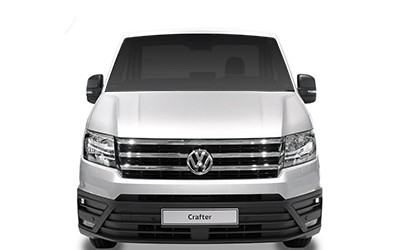

    2020 Volkswagen Crafter Base Pricing and Spec

    From

    $58,680

    excl. on-roads

    Overview

    The 2020 Volkswagen Crafter Base is a rear-wheel drive, 2-door Drop Side that was released to the Australian market on 3rd January 2020 classified as a SY1. The Volkswagen Crafter is regarded as a Van over 3.5t built in Poland and when it was new had prices starting at $58,680.

    This Volkswagen Crafter is powered by a 2.0L 4-cylinder engine that has 130 kW of power (at 3600 rpm) and 410 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. It has a 75L fuel tank

    The Volkswagen Crafter measures 2305mm (90.7 inches) in height, 7004mm (275.7 inches) in length, 2098mm (82.6 inches) in width with a 4490mm (176.8 inches) wheelbase that brings about a total of 1977kg (4358.5 lbs) of unladen weight. The Crafter Base comes standard with 205/75 R16 113R front tyres and 205/75 R16 113R rear tyres. It requires a service every 12 months or 20,000 km, whichever comes first. It has a 60 month, unlimited km warranty.

    The 2020 Volkswagen Crafter Base has a 195mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.

    Best For
    Work
    Transporting
    Warranty
    5Years
    or
    unlimited km
    2D drop side
    Diesel
    2.0L
    rear
    6 MT
    3
    2

    Dimensions

    2305mm
    2098mm
    7004mm

    The dimensions shown above are for the base model.

    Specifications

    TypeTURBO DIESEL COMMON RAIL
    Size (cc)1968
    Size (L)2.0L
    Cylinders4
    CamshaftDual Overhead Cam
    Valves/Ports per Cylinder16
    Power130kW
    Power RPM3600
    Torque410Nm
    Torque RPM2000
    Bore Stroke-
    Compression Ratio-

    Transmission6 SP MANUAL
    Final Gear Ratio-
    Suspension FrontWishbone
    Suspension RearBeam
    Steering Mechanism-
    Driverear

    Fuel Combined (L/100km)-
    Fuel Urban (L/100km)-
    Fuel Extra Urban (L/100km)-
    Tank Size (L)75
    Fuel TypeDiesel
    e10 Compatible-
    CO2 Combined-
    CO2 Urban-
    CO2 Extra Urban-

    Brake FrontDISC - VENTILATED
    Brake RearDISC - VENTILATED
    Tyre Front205/75 R16 113R
    Tyre Rear205/75 R16 113R
    Front Rim Size5.5x16
    Rear Rim Size5.5x16

    Vehicle Height (mm)2305
    Vehicle Length (mm)7004
    Vehicle Width (mm)2098
    Ground Clearance (mm)195
    Wheelbase (mm)4490
    Turning Circle (m)-
    Unladen Weight (kg)1977
    Gross Combined Weight (kg)-
    Gross Vehicle Weight (kg)3550
    Track Front (mm)1788
    Track Rear (mm)1788
    Towing Capacity Brake (kg)3500
    Towing Capacity Unbraked (kg)750

    Country Of OriginPoland
    Number of Doors2
    Seats3
    Service Interval KMs20000
    Service Interval Months12
    VIN Location-
    VIN Number-
    Warranty KMs-
    Warranty Months60
    Discontinued Date2020-09-30

    ANCAP Rating-
    Euro Air Pollution StandardEU6
